Propaq Encore Reference Guide 107 Welch Allyn
Printing
Printing Patient Data
Printing Waveforms
If you have an expansion module set up with your monitor, you can print any waveform by
pressing either the
SNAPSHOT
or
START/STOP
button on the expansion module when the
waveform is displayed on the monitor. You can also set the monitor to print automatically.

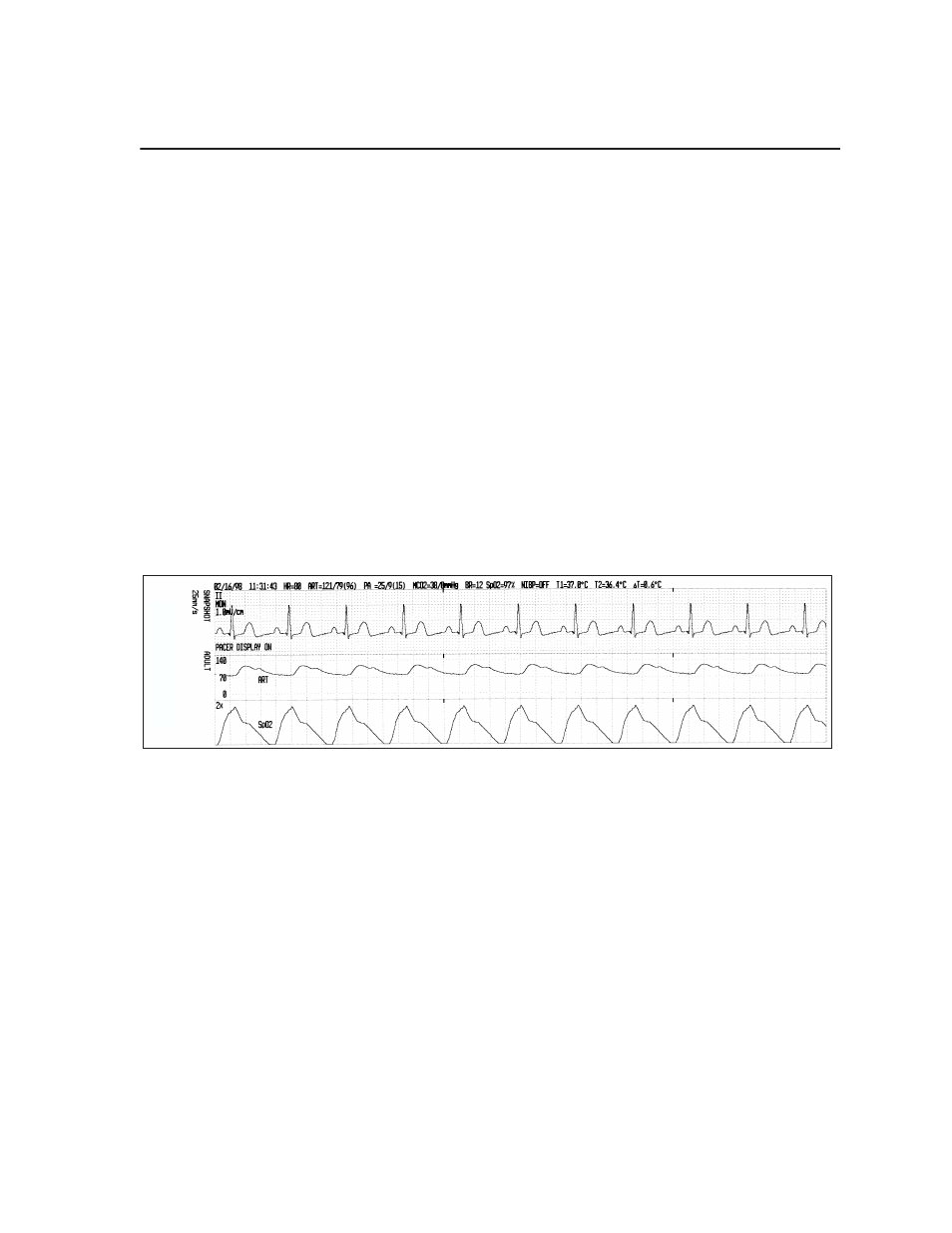

The number of seconds of data shown on the printout depends on the print speed set in the
Printer Setup window.
Patient vital sign numerics are printed above the waveforms.
The ECG Waveform
ECG is printed on a grid with major divisions (dotted lines) every 5 mm and minor divisions
(single dots) every 1 mm. The ECG waveform is always printed if ECG is monitored.
The Invasive-pressure Waveforms
Pressure waveforms are printed on a grid with major divisions (vertical dotted lines) every 5
mm, and the pressure scale grids are printed horizontally.
The SpO
2
Plethysmograph
The plethysmograph is printed without a horizontal grid. The size is printed on the printout.
Although no vertical scale is displayed for the SpO
2
waveform, a size indicator is displayed
to show the relative gain of the waveform.
