Invasive Pressure
Propaq Encore Reference Guide 53 Welch Allyn
To remove the ZERO REJECTED message and to restore the invasive pressure numerics
during an invasive pressure alarm, you must return to the invasive pressure menu and press
CANCEL . This will restore the invasive pressure numerics.
How Invasive Pressure is Displayed
From the invasive pressure signal, the Propaq Encore displays both a pressure waveform and
pressure numeric values (systolic, diastolic, and mean). The waveform is displayed in a
waveform window (if the waveform is turned on in the wave select window). The numerics
are displayed in the blood pressure numerics windows.
The Propaq Encore allows you to identify the pressure measurement with a selectable label,
and the numerics can be displayed in different formats.
The pressure waveform scales are not displayed until you zero the transducer. Once the zero
reference has been established the scales automatically appear.
Warning If a ZERO button is pressed after an invasive pressure channel has
been successfully zeroed and is currently monitoring a pressure waveform, the
message ZERO REJECTED will display in the invasive pressure numerics
window. This message will preempt the valid invasive pressure numerics until
the
CANCEL button in the Invasive Pressure Menu is pressed.
If the invasive pressure channel enters an alarm condition while the ZERO
REJECTED message is overriding the invasive pressure numerics, no
invasive pressure numerics will flash to indicate invasive pressure is in alarm.
LABEL P 1 LABEL P 2 PREV MENU FORMAT 1 FORMAT 2
ART
( 85)
12/ 7
122
58
9
RANGE RESCALE ZERO ART MORE ZERO CVP
SpO 2
HR T 1 NIBP 18:45:28 102.3 ° F 80
99
III
1
mV
cm
MON
A
R
T
C
V
P
130
95
60
20
10
0
CVP

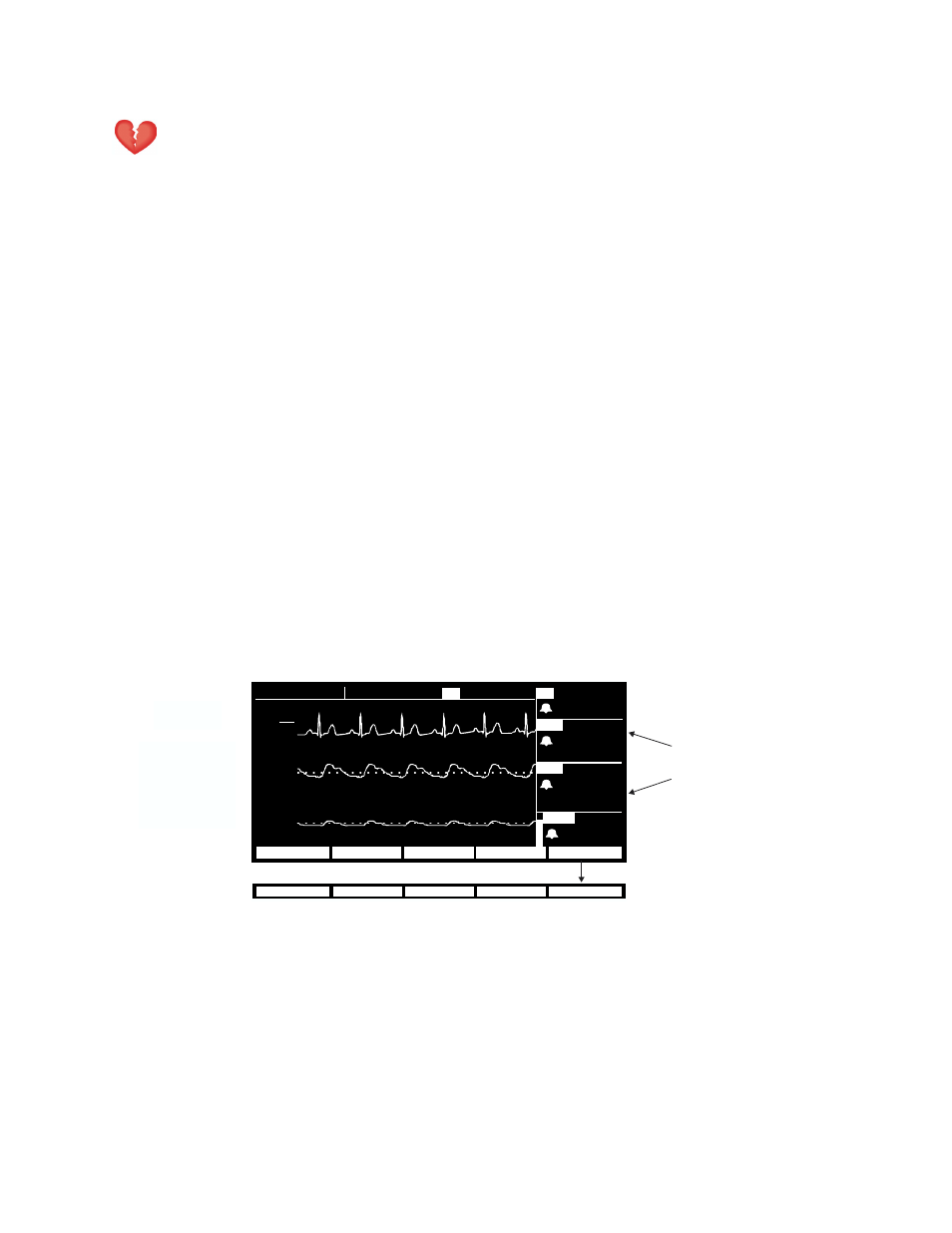

In this mode,
there are two
scales and
two labels for
these pressure
waveforms.
Rescale
Mode
Numeric
formats
