Monitor Setup
Propaq Encore Reference Guide 31 Welch Allyn
Selecting Waveforms for Display
To select waveforms for display, press
SETUP
,
WAVE SEL
. Use the
NEXT
and
ON/OFF
buttons to turn
on the desired waveforms in the wave select window:
Display Priorities
You can turn on more than three waveforms, but only the first three waveforms listed in the
wave select window that are monitored are displayed. The patient parameters being
monitored are listed in the order they will be displayed if all are turned on.
Because of the critical nature of the ECG waveform, you cannot turn off ECG. However, if
ECG is not monitored, another waveform will occupy its place.
The displayed waveforms are also the ones printed if a printer is attached.
Setting the Time and Date
To set the time and date, from the Main Menu press
SETUP, MORE, MORE.
The monitor displays
the Time/Day window:
Press
NEXT, UP,
and
DOWN
as needed to set the time and date. Then press
ENTER
to store the new
time and date.

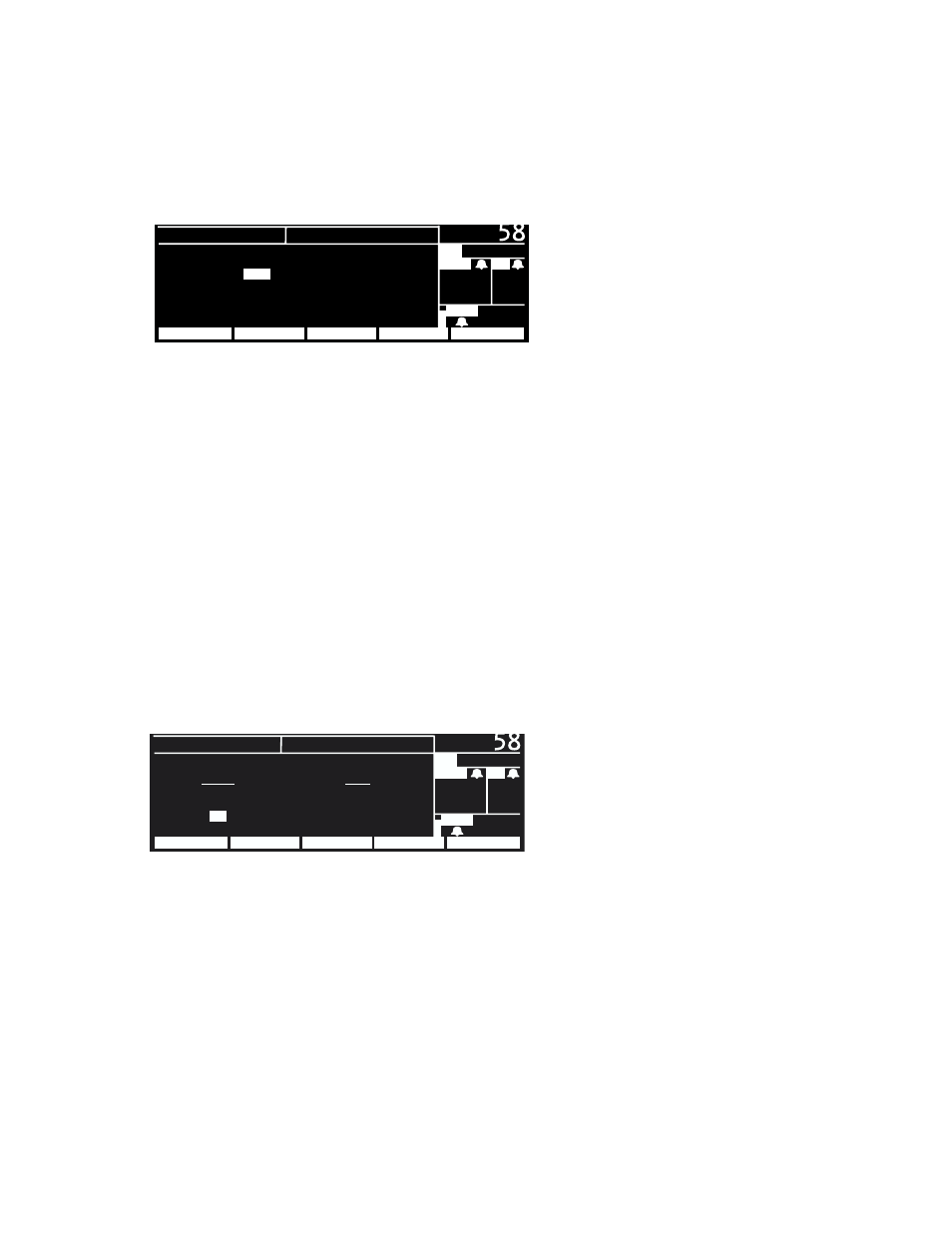

WAVE SELECT
mmHg
NEXT PREV MENU INSERV ON/OFF
MCO 2 BR
SpO 2
PA
SETUP
ECG : ON RESP : OFF
ART :
ON SpO2 : ON
PA : OFF NIBP : ON
CO
2 : OFF
35/ 18
( 85)
35 12
92
BATTERY: 9.2 VOLTS
mmHg
NEXT PREV MENU DOWN ENTER UP
MCO 2 BR
SpO 2
PA
TIME/DAY
TIME DAY
H:MIN:S MO/DA/YR
07:
45 :32 06/12/97
