Invasive Pressure
Propaq Encore Reference Guide 141 Welch Allyn
Invasive Pressure
Applies only to models 204 and 206.
Invasive Pressure Specifications
Characteristic Specification
Transducer Type Strain-gauge resistive bridge, or HP quartz (with HP Option).
a
a.Transducers with 40 µV/V/mmHg sensitivity are not compatible.
Transducer Excitation Impedance
Range 200 to 2000 Ω
Transducer sensitivity 5
µ
V/V/mmHg
Excitation Voltage 4.85V Pulsed dc @ 181 Hz b
b.Duty factor depends on transducer impedance. For 200 to ~900 Ω, duty factor is ≈ 11%. Above ~900 Ω, the
duty factor increases to ≈ 91%.
Connector ITT-Cannon plug MS3106F-14S-6P Std.
Hewlett-Packard compatible 12-pin connector (optional).
Bandwidth Digital filtered, dc to 20 Hz
Zero Drift ±1 mmHg without transducer drift
Zero Adjustment ±200 mmHg including transducer offset
Numeric Accuracy ±2 mmHg or 2% of reading, whichever is greater, plus transducer error
Pressure range -30 to 300 mmHg
Pulse range 25 to 250 beats per minute
Leakage Current Meets ANSI/AAMI risk (leakage) requirements
Electrosurgery interference
suppression Included in all models

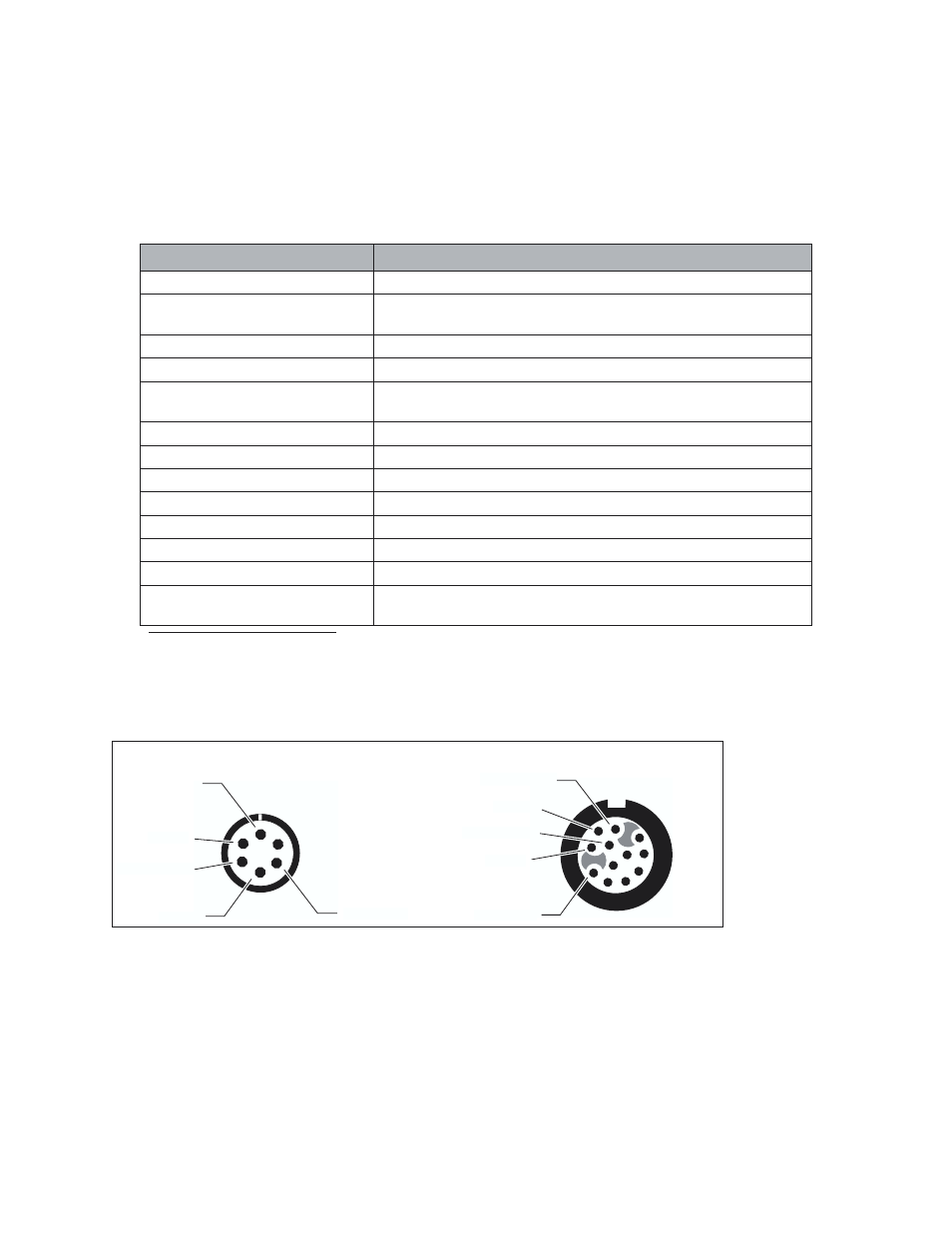

HP 12-pin IBP connector
(side-panel view)
+ EXC
+ EXC
- EXC
- EXC
+ SIGNAL
- SIGNAL
+ SIGNAL
- SIGNAL
SHIELD SHIELD
Standard 6-pin IBP connector
(side-panel view(
