In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
C H A P T E R 3
Air Brake
3-12
8 Remove the two bolts and two washers securing the brake caliper stop to the
brake bracket and remove the brake caliper stop.

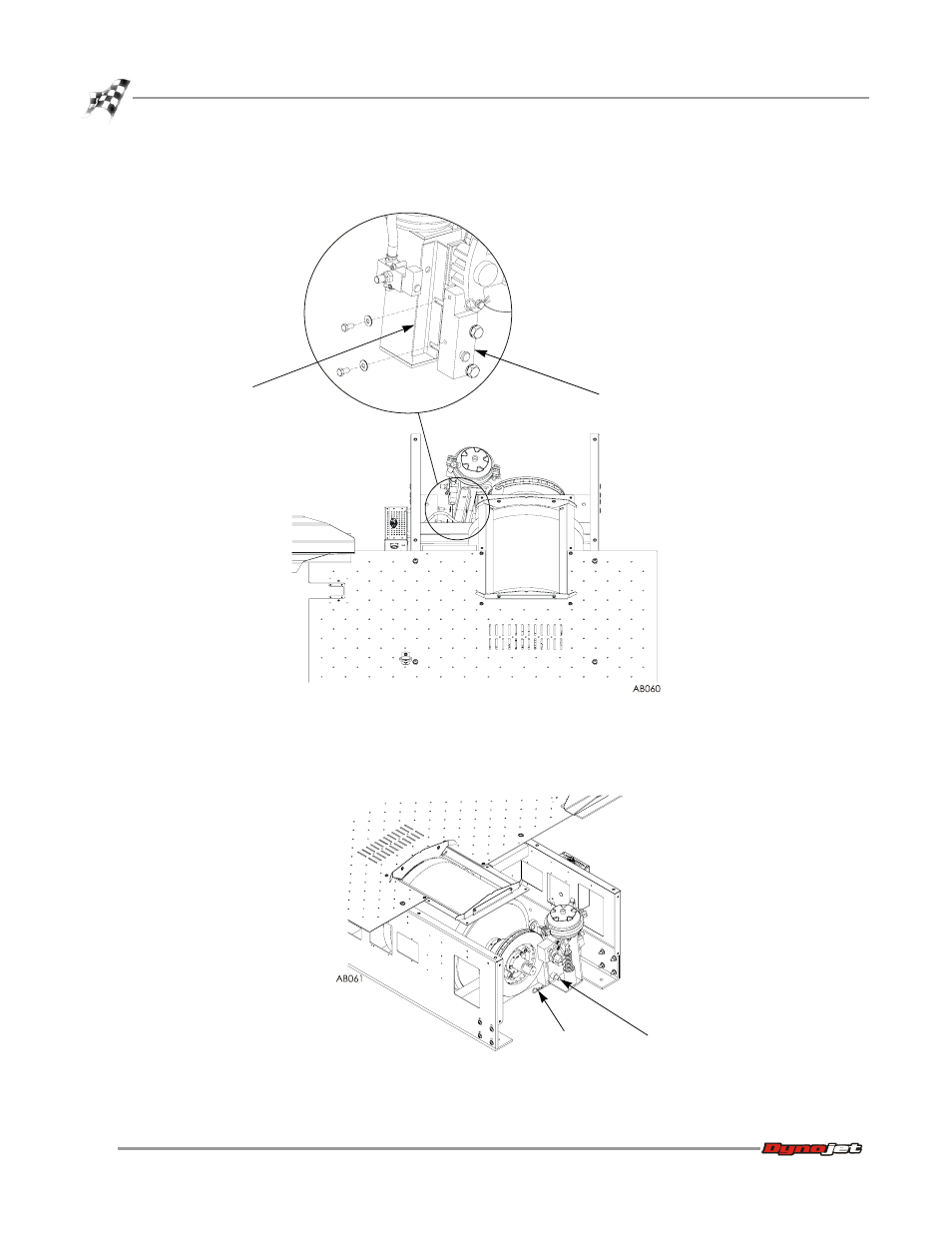

Figure 3-13: Remove the Brake Caliper Stop
9 Remove the hairpin cotter from the bottom clevis pin located on the front of the
air brake assembly.
Figure 3-14: Remove the Bottom Hairpin Cotter
brake caliper stop
brake bracket
bottom clevis pin hairpin cotter
