R OUTING THE P OWER C ARRIAGE AND W HEEL C LAMP C ABLES
The wheel clamp is an optional accessory. After you install the wheel clamp you can
finish routing the cables, refer to “Wheel Clamp” on page 3-17 for installation
instructions. If you did not order this accessory, it is still necessary to route the cable
to the junction box.
1
Route the power carriage cable (P/N 76950314) from the CPI through the
designated power pit conduit, through the pit, and out of the pit as shown in
Figure 2-30.
2 Route the wheel clamp cable (P/N 76950313) from the CPI through the same
conduit and along the same path as the power carriage cable.
Note: Be sure to keep the power and communications cables in different pit
conduits.
3 From the pit, route both cables through the junction box.
4 Press each cable into the cable track.

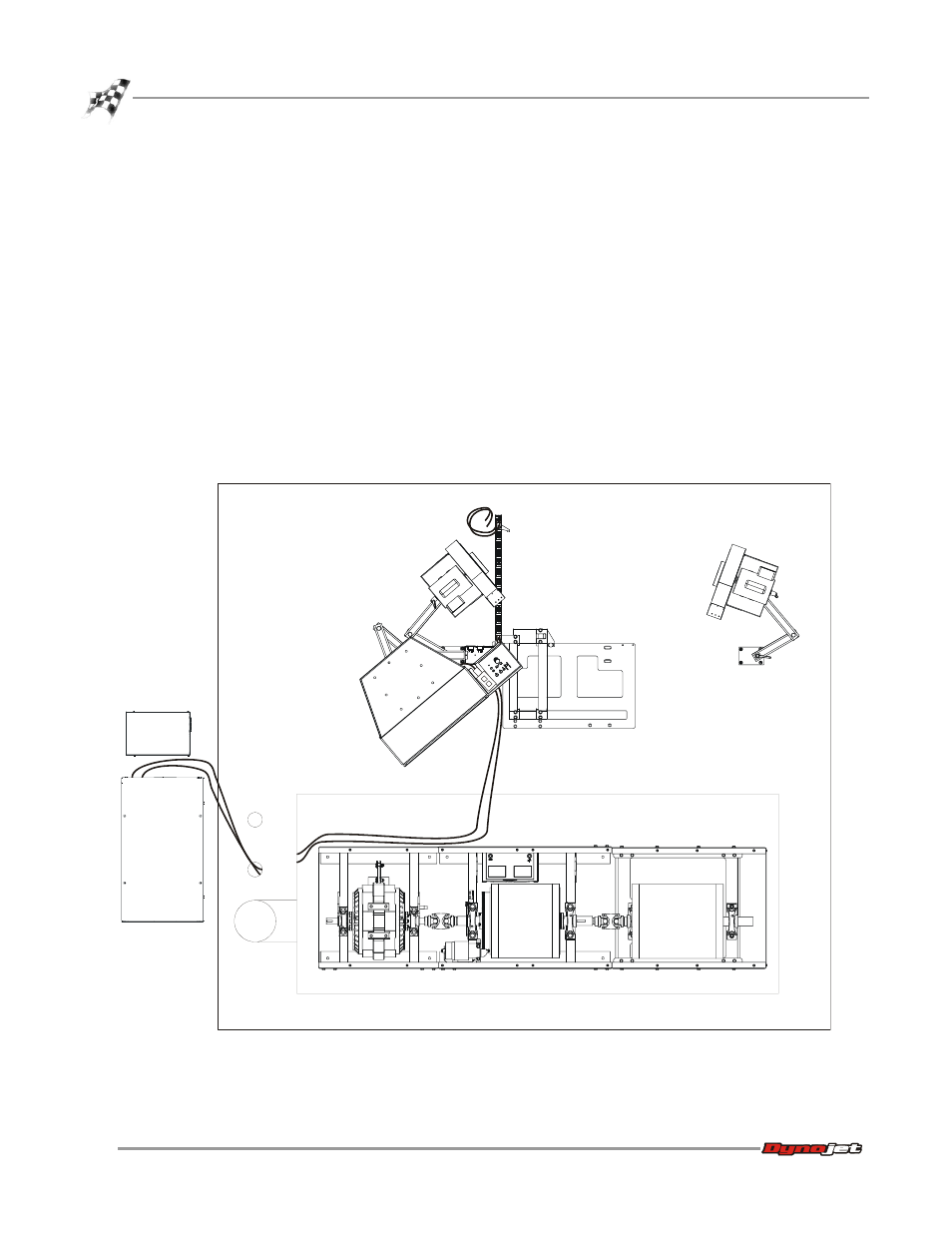

Figure 2-30: Route the Power Carriage and Wheel Clamp Cables
PD124
