In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
A P P E N D I X E
Dyno Preparation
E-4
R EMOVING THE M ONITOR T RAY AND A RMS
1 Disconnect any cables to the control panel along with any other cables you may
have attached to the monitor arms and monitor tray.
Refer to the model 200iP/250iP installation guide for more information.
2 Remove the monitor tray and set aside.
3 Remove each arm and the washers and set aside.

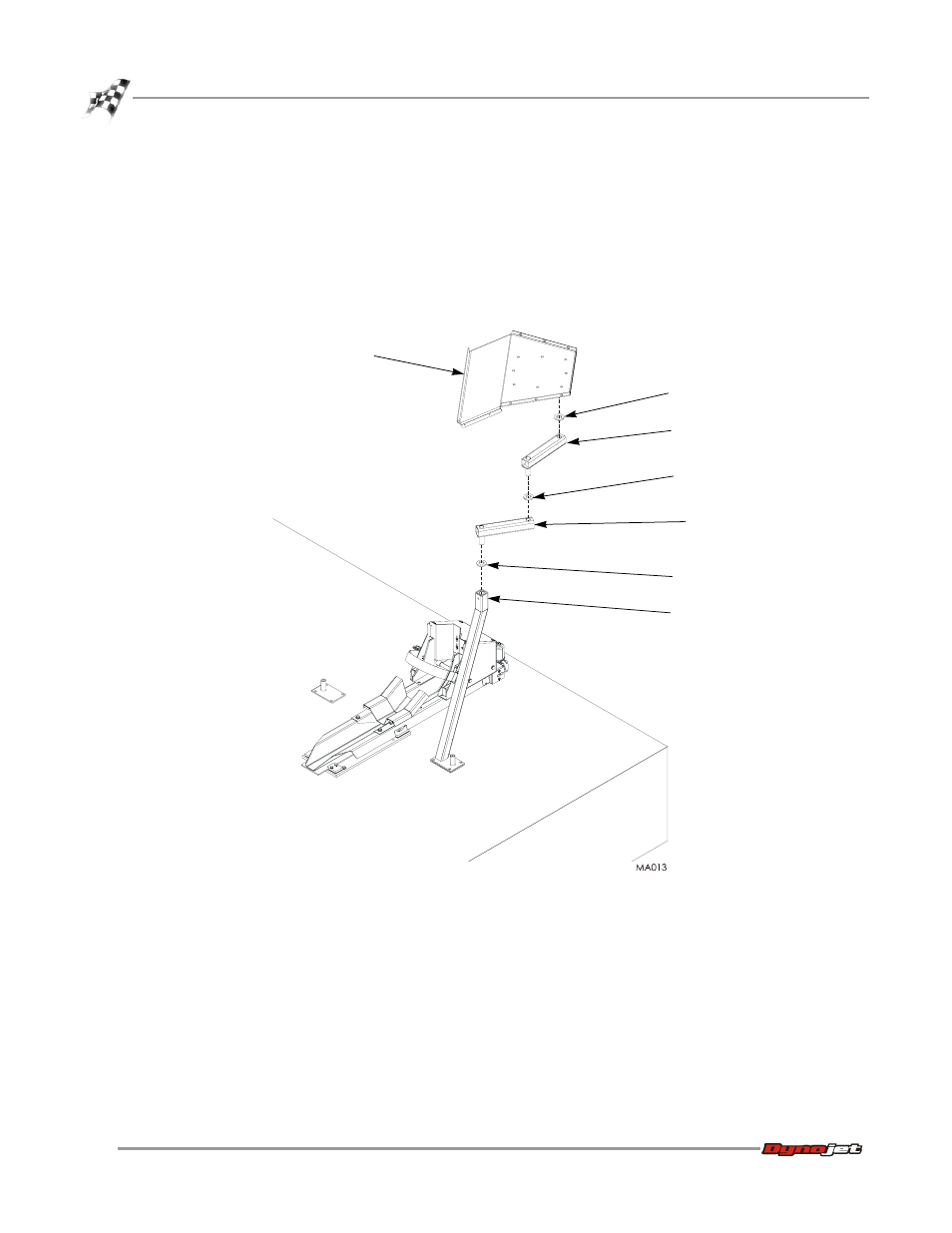

Figure E-3: Remove the Monitor Tray and Arms
second arm
poly washer
first arm
monitor tray
support arm
poly washer
poly washer
