I N S T A L L A T I O N
Trike Carriage Adapter Installation
Version 2
In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
2-25
I
NSTALLING
THE
R
IGHT
B
LOWER
M
OUNT
AND
B
LOWER
A
SSEMBLY
You will need the following parts:
• 21600015
Lower Blower Arm
• 26215220
Washer, 3/8", Metal
• 26215520
Washer, 1/8", Poly (2)
• 26215521
Washer, 1/4", Poly (2)
• 35521420
Cap Plug (4)
• 35712991
Clamp Lever
• 37513200
Anchor, Redhead, 3/8" (4)
• 61328101
Blower Assembly
• 61329601
Blower Mount
• 63413001
Upper Blower Arm
• DM150-002-007
Washer, 5/16", Flat (4)
• DM150-019-012
Bolt, 3/8-16 x 1", Hex (4)
1
Using Figure 2-17 as a guide, place the blower mount in a location that works best
for your dyno application.
2
Using the blower mount as a template, mark and drill the four holes needed to
secure the blower mount to the floor.
3
Install the Red Head anchors. Refer to Appendix A for installation instructions.
4
Secure the blower mount to the floor using four 3/8-16 x 1-inch hex bolts and
four 5/16-inch flat washers.

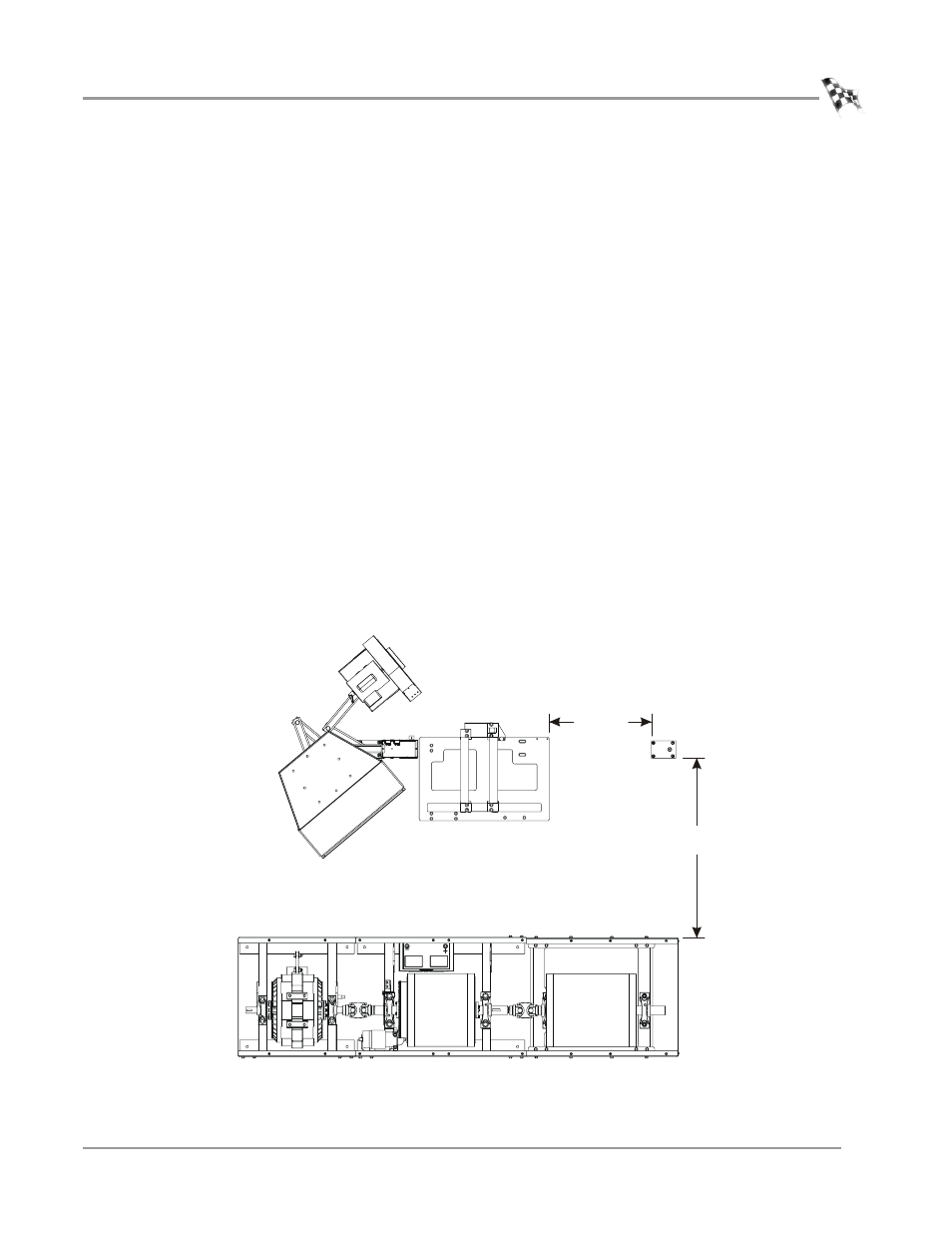

Figure 2-17: Install the Right Blower Mount
111.76 cm
(44.00 in.)
63.50 cm
(25.00 in.)
PD145
