In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
C H A P T E R 2
iPX Drum Module Installation
2-16
L INING UP AND S ECURING THE M ODULE U PRIGHTS
1 Verify the uprights on the drum and eddy current brake modules are flush with
the top of the pit floor before you tighten the connector plates.
1a
Loosen all upright bolts.
1b Place two straight edges across the drum module uprights.
1c With the upright tight against the straight edges and flush with the pit floor,
tighten the connector plate bolts and nuts on the drum module.
Note: You can use c-clamps to attach the upright to the straight edges to make
this quicker. Tighten the c-clamps until the uprights are flush with the pit floor.
1d
Tighten the upright bolts and nuts on the drum module.
1e Repeat this for the eddy current brake module uprights.
2 Secure the starter brace to the starter using the washer and nut removed earlier.
3 Remove the straight edges.

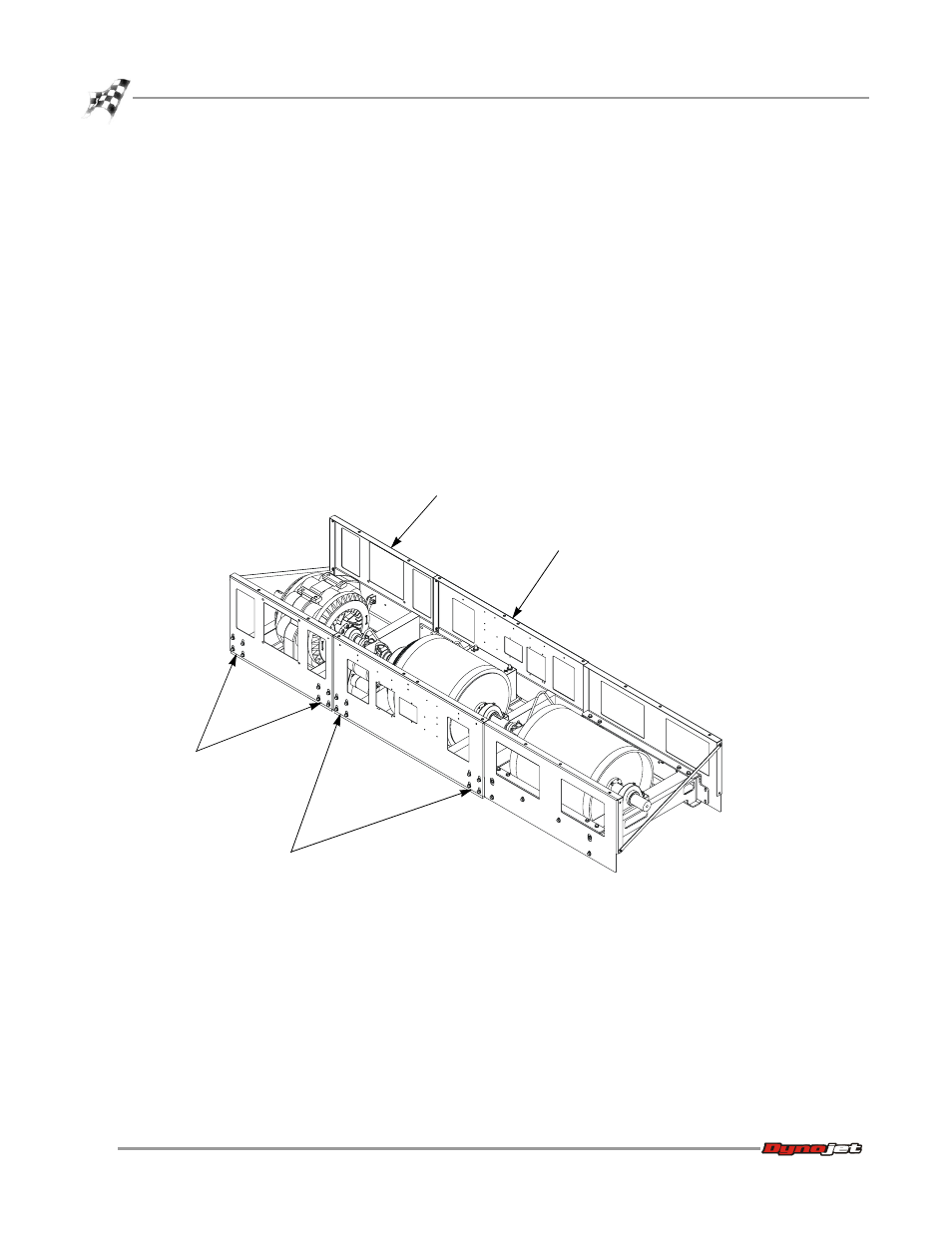

Figure 2-9: Secure the Uprights
PD144
drum module
upright
eddy current brake
module upright
loosen bolts
securing
uprights
connector
plate bolts
