In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
C H A P T E R 2
Carriage Assembly and Power Carriage Installation
2-46
I NSTALLING THE P OWER C ARRIAGE
You will need the following part:
• 82943001 Power Carriage
1 Remove the four screws securing the power carriage cover and set aside.
2 Bring the power carriage cable (two-pin connector) from the cable track over to
the motor mount.
3 Secure the strain relief to the side of the power carriage motor mount.s
4 Place the power carriage motor assembly near the motor mount and plug the
motor connector into the power carriage cable.
5 Secure the power carriage cover using the four screws removed earlier.
6 Verify the carriage moves without binding. Refer to “Final Adjustments and Tests”
on page 2-48.

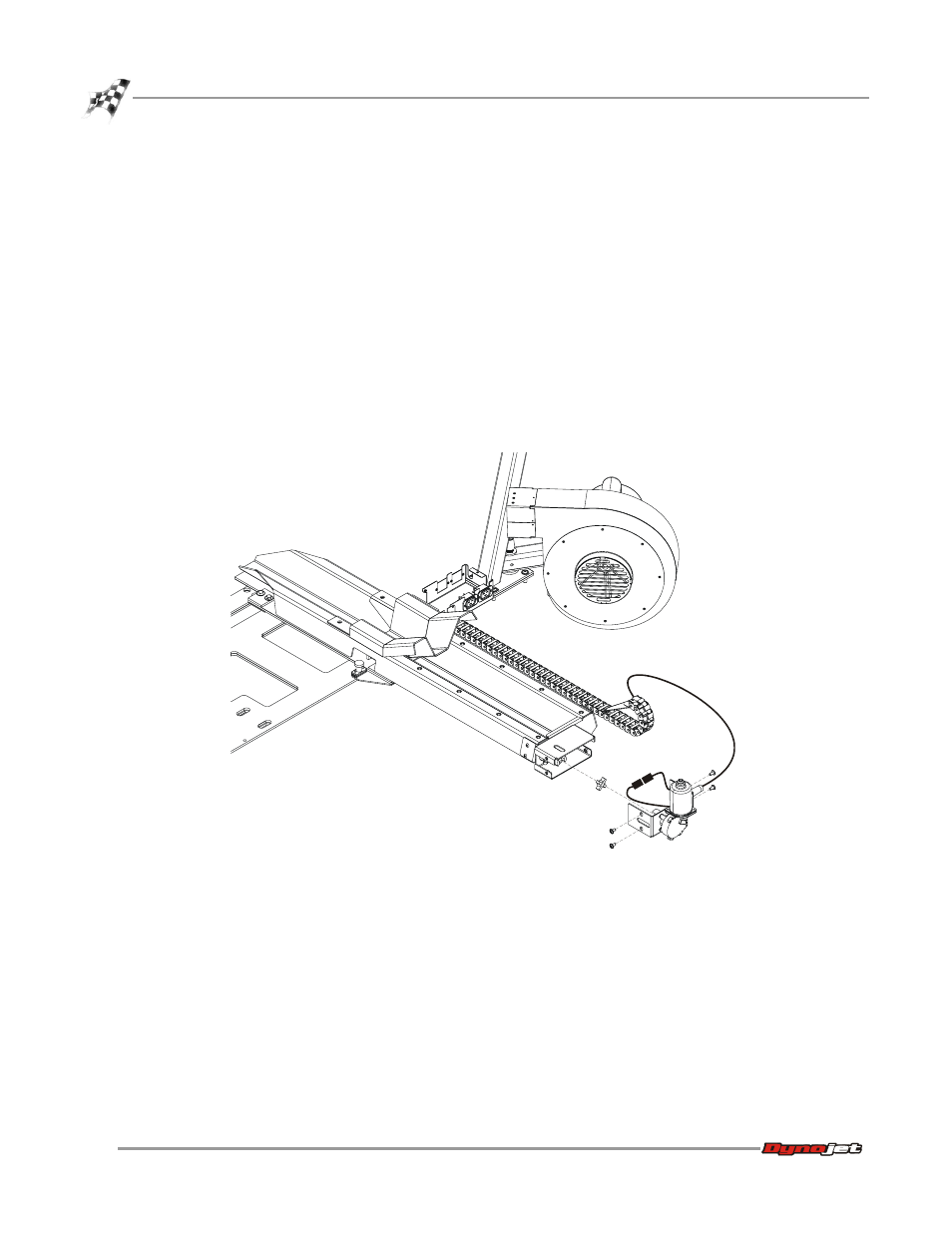

Figure 2-37: Install the Power Carriage
PD129
