I N S T A L L A T I O N
Zip Tube
Version 2 In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
2-59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ZIP TUBE
The zip tube encases the multiple cables running to the control panel. You will need
to use the cable wrap tool (P/N 16510001) to insert the cables into the zip tube.
1
Rotate the cable holder to the open position.
2 Insert the cable(s) into the cable holder.
• Pendant Cable
• Control Panel Cable
• RPM cable(s)
• Additional cables, if desired

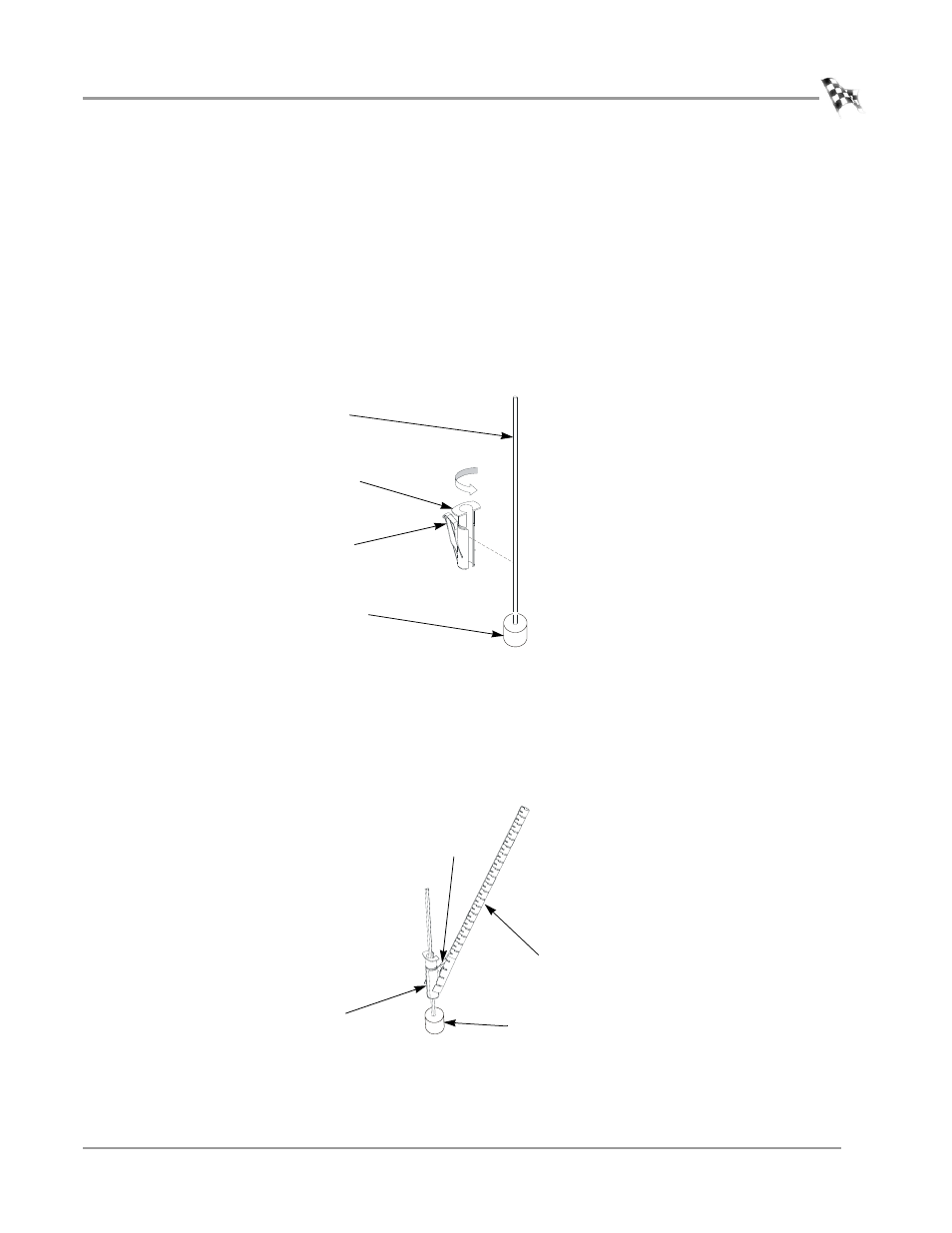

Figure 2-49: Insert the Cable(s) Into the Cable Holder
3 Rotate the cable holder closed.
4 Insert the guide body into the zip tube.
Note: Make sure you start the cable wrap tool close to the end of the cables. This
will make it easier to pull the tool along the length of the cables.
5 Pull the cable wrap tool through the zip tube along the length of the cables.
Figure 2-50: Secure the Cable(s) Into the Zip Tube
cable(s)
cable holder
guide body
end of cables
guide body
zip tube
end of cables
cable wrap tool
