I N S T A L L A T I O N
Carriage Assembly and Power Carriage Installation
Version 2
In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
2-47
I
NSTALLING
THE
T
IRE
S
TOP
AND
C
ABLE
T
RACK
A
DAPTER
B
RACKET
If you ordered the optional wheel clamp, refer to chapter 3 for instructions on
securing the cable track and connecting the wheel clamp cable. If you did not order
the wheel clamp, the wheel clamp cable will hang from the cable track.
You will need the following parts:
• 21626218
Cable Track Adapter Bracket
• 36561045
Screw, 1/4-20 x 5/8", Pan-Head, Torx
• 63310902
Tire Stop
• DM150-002-004
Washer, 5/16", Lock (4)
• DM150-002-007
Washer, 5/16", Flat (4)
• DM150-019-012
Bolt, 3/8-16 x 1", Hex (4)
1
Secure the tire stop to the carriage using three 3/8-16 x 1-inch bolts, three
5/16-inch flat washers, and three 5/16-inch lock washers.
2
Secure the cable track adapter bracket to the tire stop and carriage using the
remaining 3/8-16 x 1-inch bolt, 5/16-inch flat washer, and 5/16-inch lock washer.
3
Secure the cable track to the adapter bracket using one 1/4-20 x 5/8-inch pan-head
torx screw.

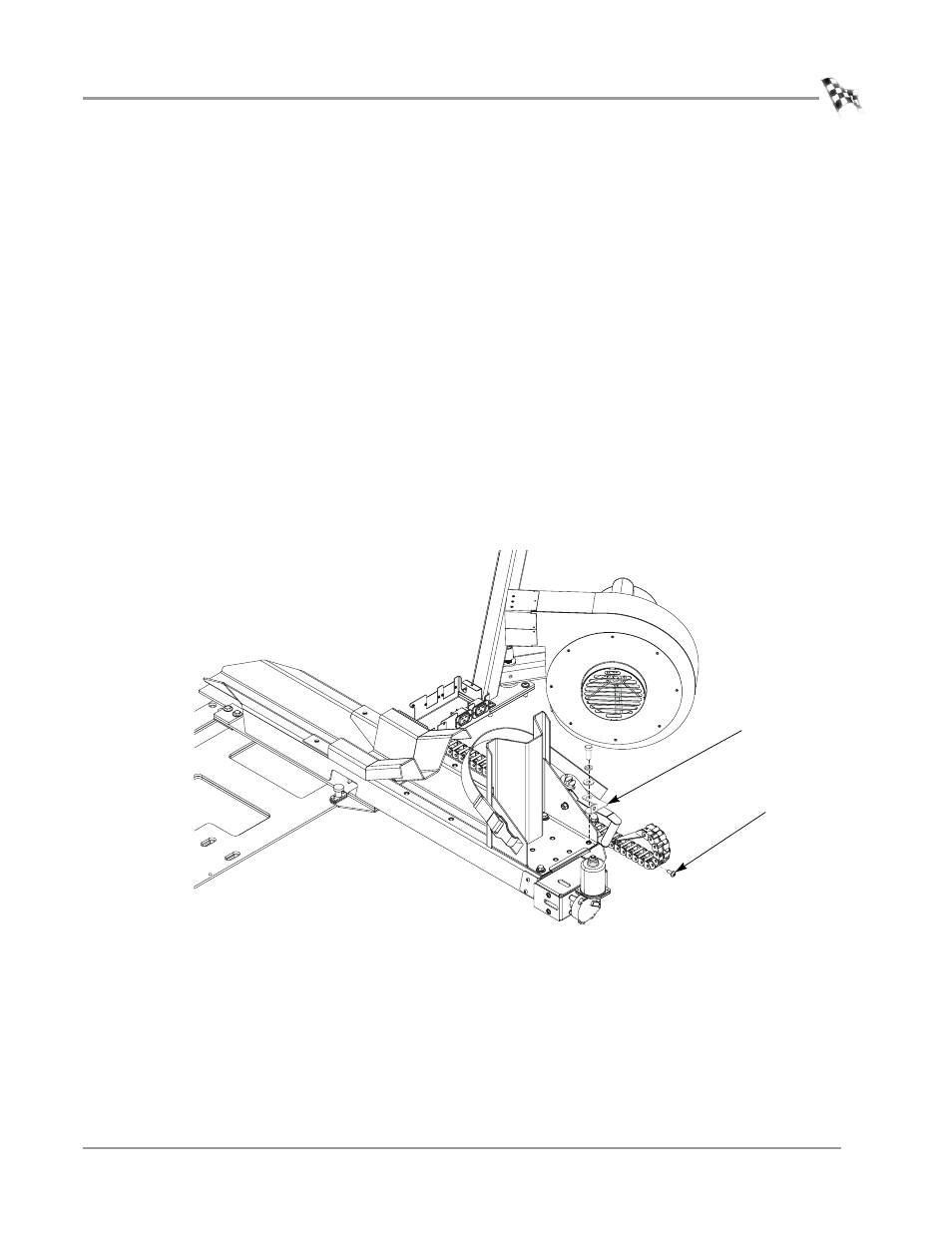

Figure 2-38: Install the Cable Track Adapter Bracket
PD130
cable track
adapter bracket
torx screw
