In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
C H A P T E R 1
Dynamometer Specifications and Requirements
1-6

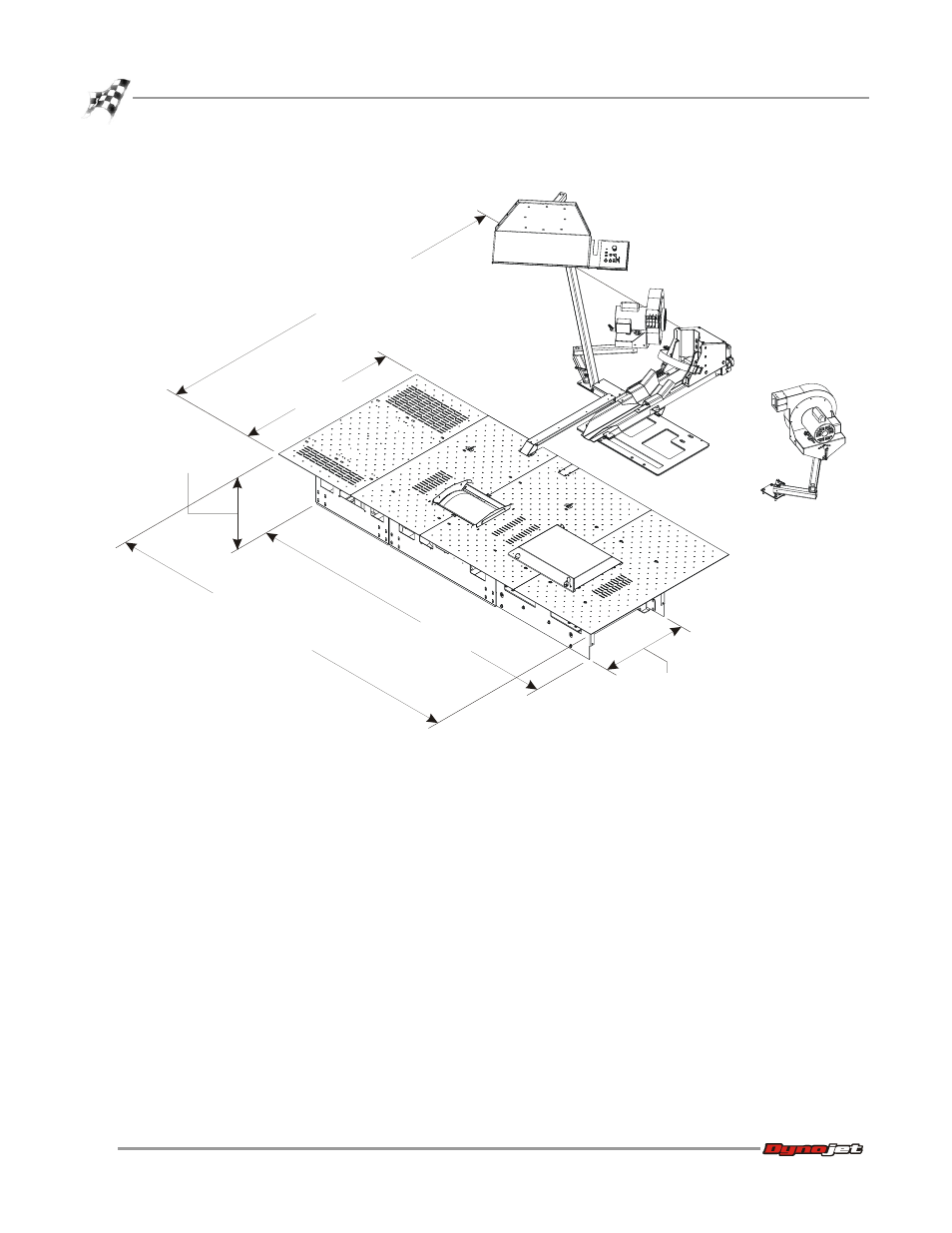

Figure 1-1: Model 250iPX Dyno Dimensions
137.16 cm
(54.00 in.)
standard carriage
304.80 cm (120.00 in.)
extended carriage
355.60 cm (140.00 in.)
45.72 - 46.67 cm
(18.00 - 18.38 in.)
271.42 cm
(106.86 in.)
76.20 cm
(30.00 in.)
PD104
239.00 cm (91.10 in.)
pit covers
310.29 cm (122.16 in.)
including eddy current
brake cover
