Left Side Blower and Monitor Arm Installation
Version 2 In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
2-23
I NSTALLING THE M ONITOR A RMS AND M ONITOR T RAY
1 Insert a plastic cap in both ends of each arm.
2 Place a poly washer around the pin of the first arm and insert the pin into the
support arm.
3 Place a poly washer around the pin of the second arm and insert the pin into the
first arm.
4 Place a poly washer around the pin of the tray and insert the pin into the second
arm.
Note: The monitor tray is an optional accessory. If you did not order a monitor
tray, skip this step.
5 Check for clearance between the monitor arm and motorcycle, walls, ceiling, etc.
Note: Dynojet does not recommend placing the computer CPU on the
monitor/keyboard tray since vibration can cause damage to the computer.

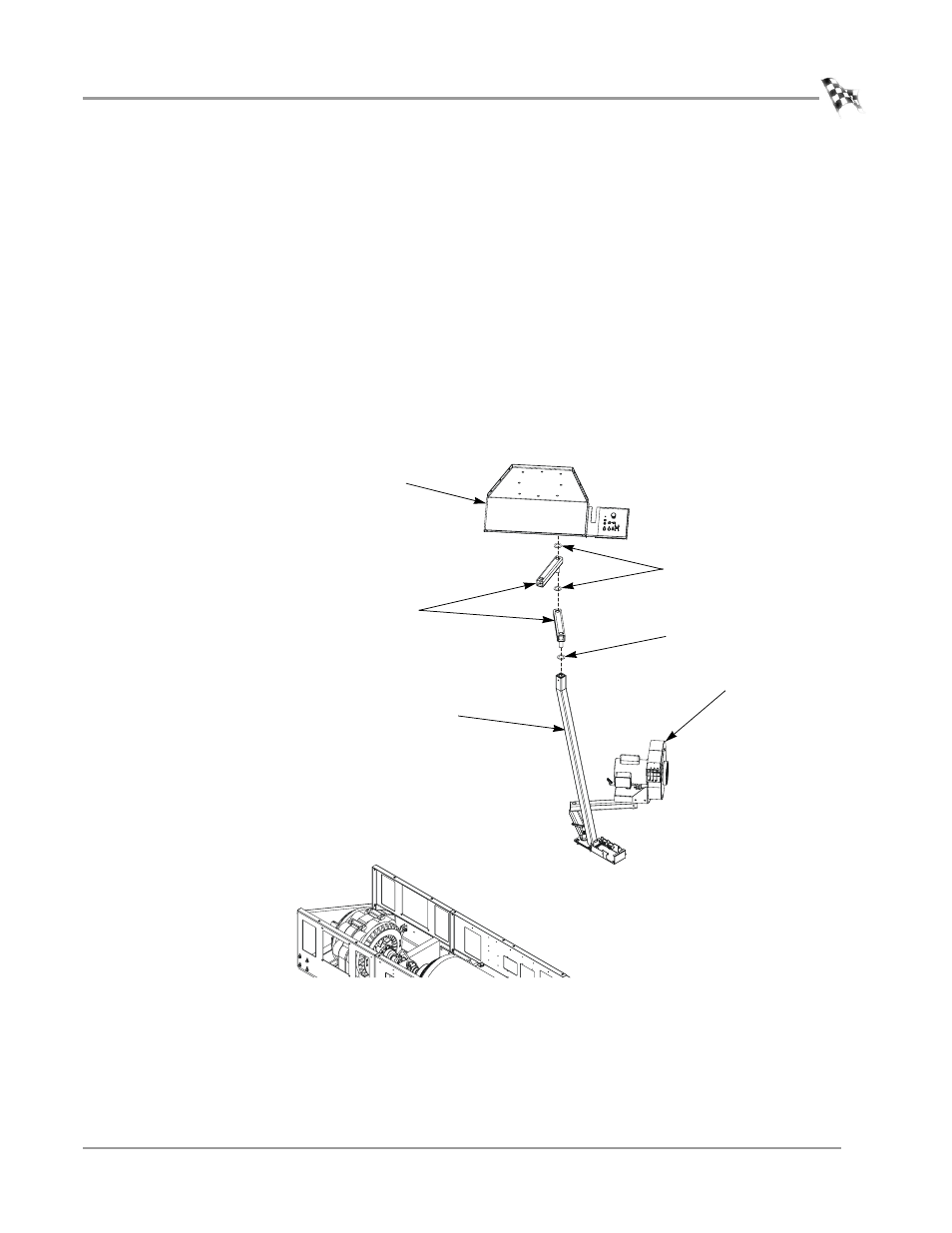

Figure 2-15: Install the Monitor Arms and Monitor Tray
PD115
monitor
support
washer
tray
arms
washers
left blower
assembly
