In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
C H A P T E R 2
Pit Covers Installation
2-56
17 Install each drum guard to the drum guard mounting bracket using two
1/4-20 x 5/8-inch pan-head torx screws and two 1/4-20 nuts.
Note: Verify the drum does not contact the drum guards.
Note: If you installed the EEC finger guards, you will need to adjust them now.
Refer to “Adjusting the EEC Finger Guards” on page C-3 for detailed instructions.

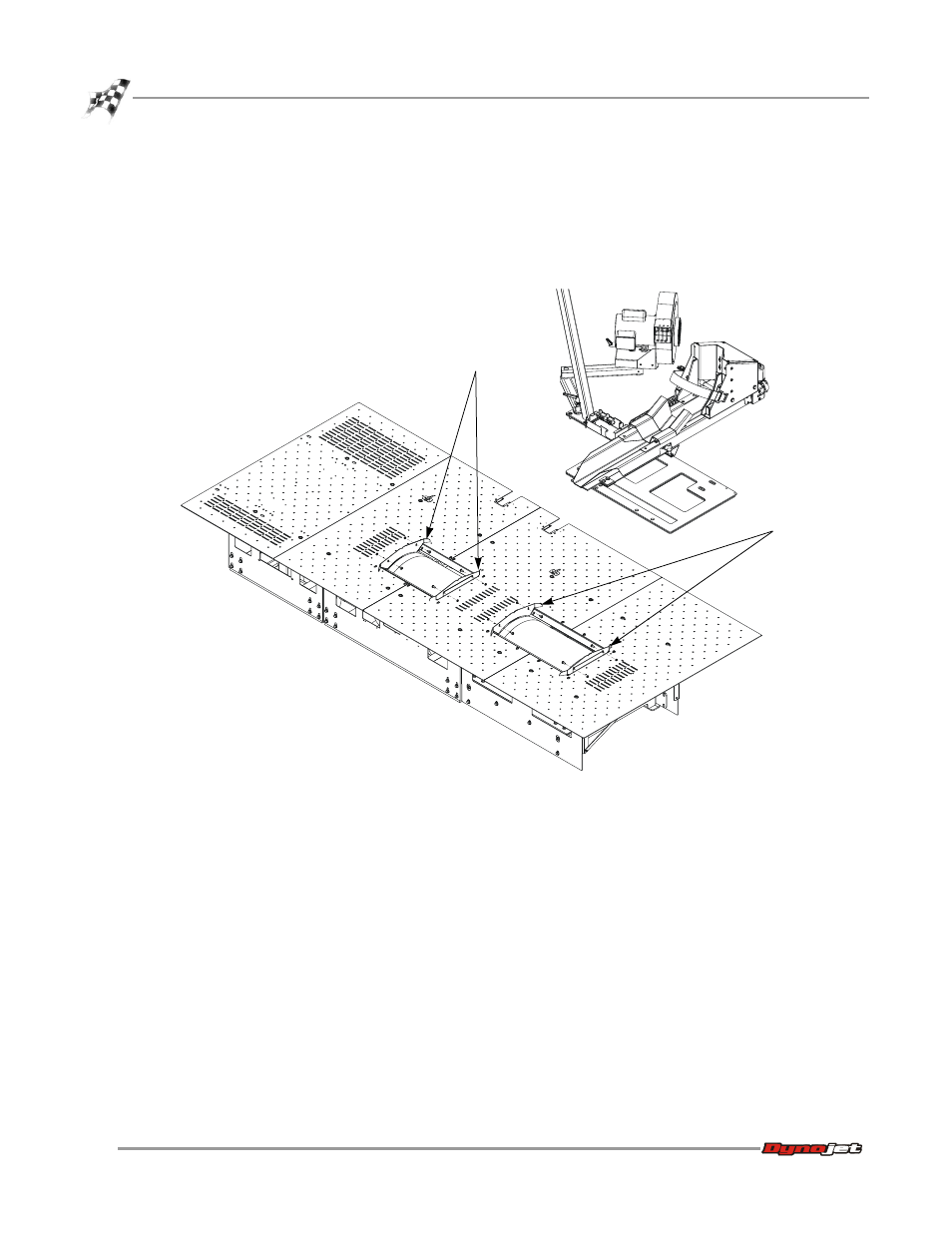

Figure 2-46: Install the Drum Guards
PD139
drum guards
drum guards
