In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
C H A P T E R 2
Routing Cables
2-40
5 Connect the battery and starter cables.
Be sure to route the cables through the cable routing bracket. Secure the cables to
the bracket using cable ties.
5a
Attach the brown cable to the positive (+) battery post.
5b Attach the red battery cable to the positive (+) battery post and to the large
stud on the starter solenoid.
5c Attach the blue and yellow cable to the negative (-) battery post.
5d Attach the black battery cable to the negative (-) battery post and to the
grounding location on the starter brace.
5e Attach the blue cable to the starter solenoid.

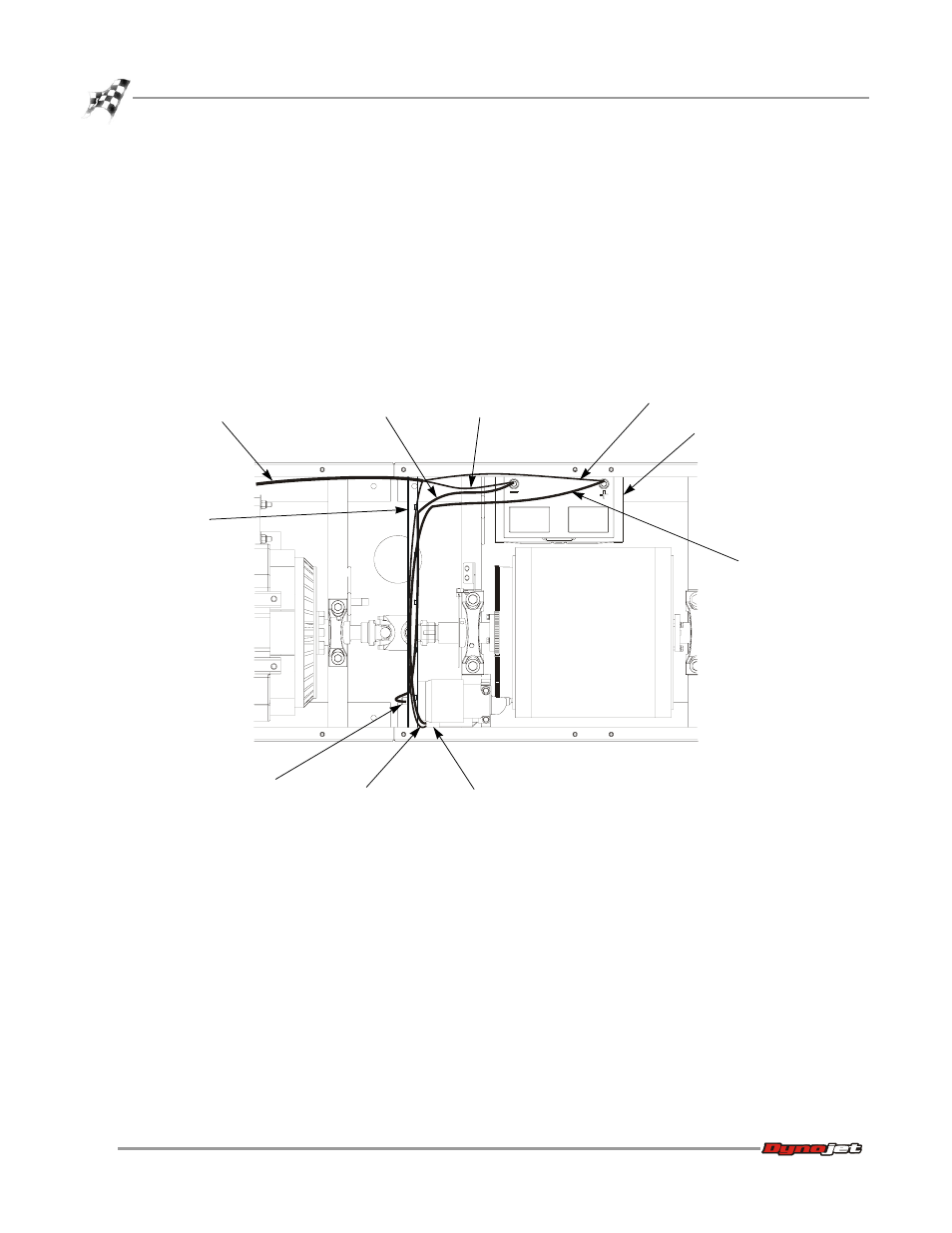

Figure 2-32: Connect the Battery and Starter Cables
PD151
battery
brown cable
blue/yellow cable
red cable
black cable
blue cable starter solenoid
starter brace
battery cable
cable routing
bracket
