In Ground Model 200iPX/250iPX Motorcycle Dynamometer Installation Guide
C H A P T E R 2
Pit Covers Installation
2-54
8 Loosely install the middle pit cover to the dyno module drum guard mounting
bracket using four 1/4-20 x 5/8-inch pan-head torx screws.
9 Place the middle pit cover on the dyno drum module uprights and align the
middle pit cover with the existing dyno pit cover.
10 Loosely install the middle pit cover to the dyno drum module uprights using the
four 3/8-16 x 1/2-inch button-head flange screws.
11 Loosely install the middle pit cover to the iPX drum module uprights using two
3/8-16 x 1/2-inch button-head flange screws.

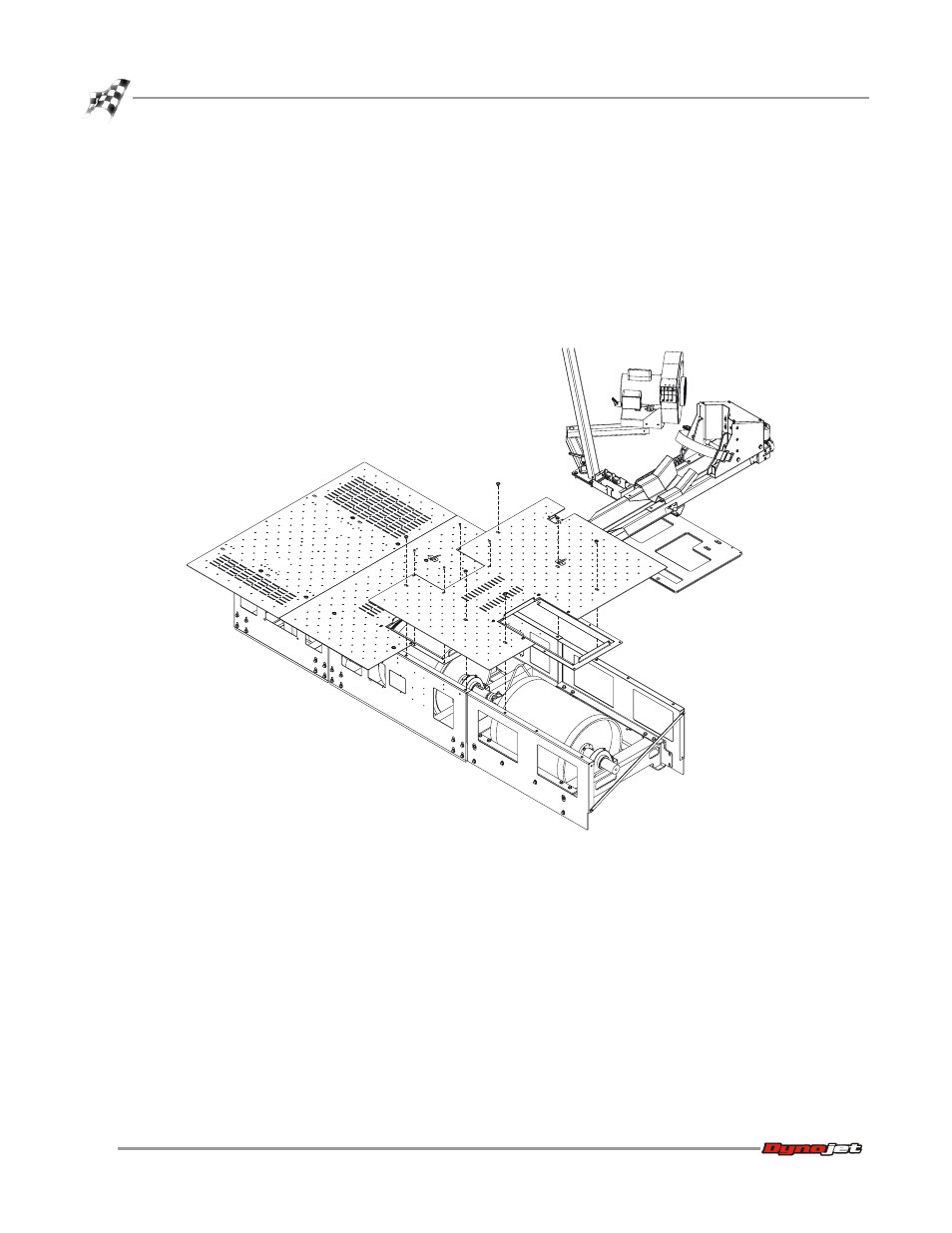

Figure 2-44: Install the Middle Pit Cover to the Dyno and iPX Drum Module
PD137
