Using LCD Panel Interface
You can use the LCD panel on the chassis to perform configuration and diagnostics, and to obtain status information
about the chassis and its contents.

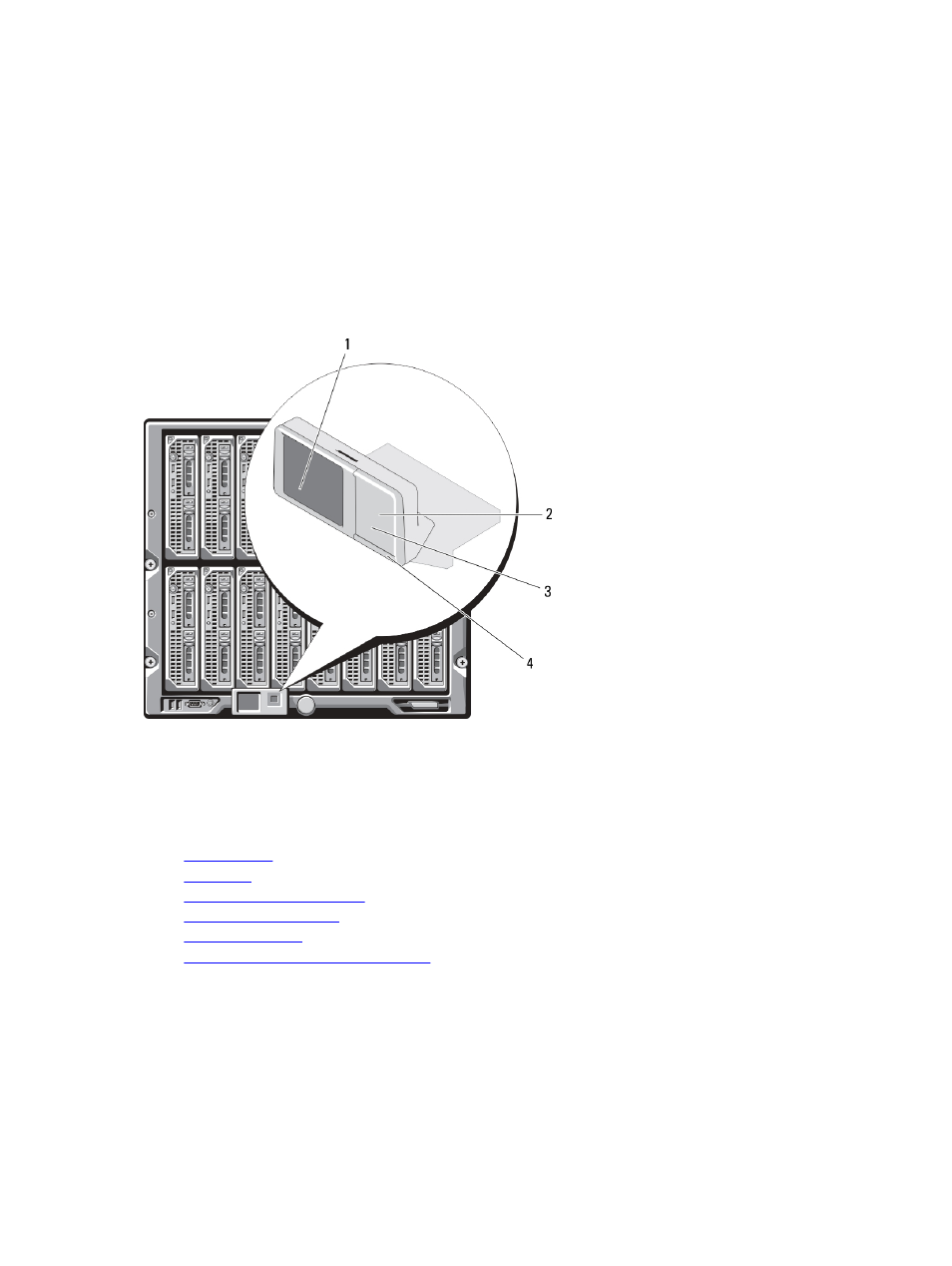

The following figure illustrates the LCD panel. The LCD screen displays menus, icons, pictures, and messages.
Figure 10. LCD Display
1 LCD screen 2 selection ("check") button
3 scroll buttons (4) 4 status indicator LED
Related Links
LCD Navigation
Diagnostics
LCD Hardware Troubleshooting
Front Panel LCD Messages
LCD Error Messages
LCD Module and Server Status Information
LCD Navigation
The right side of the LCD panel contains five buttons: four arrow buttons (up, down, left, and right) and a center button.
• To move between screens, use the right (next) and left (previous) arrow buttons. At any time while using the panel,
you can return to a previous screen.
