8

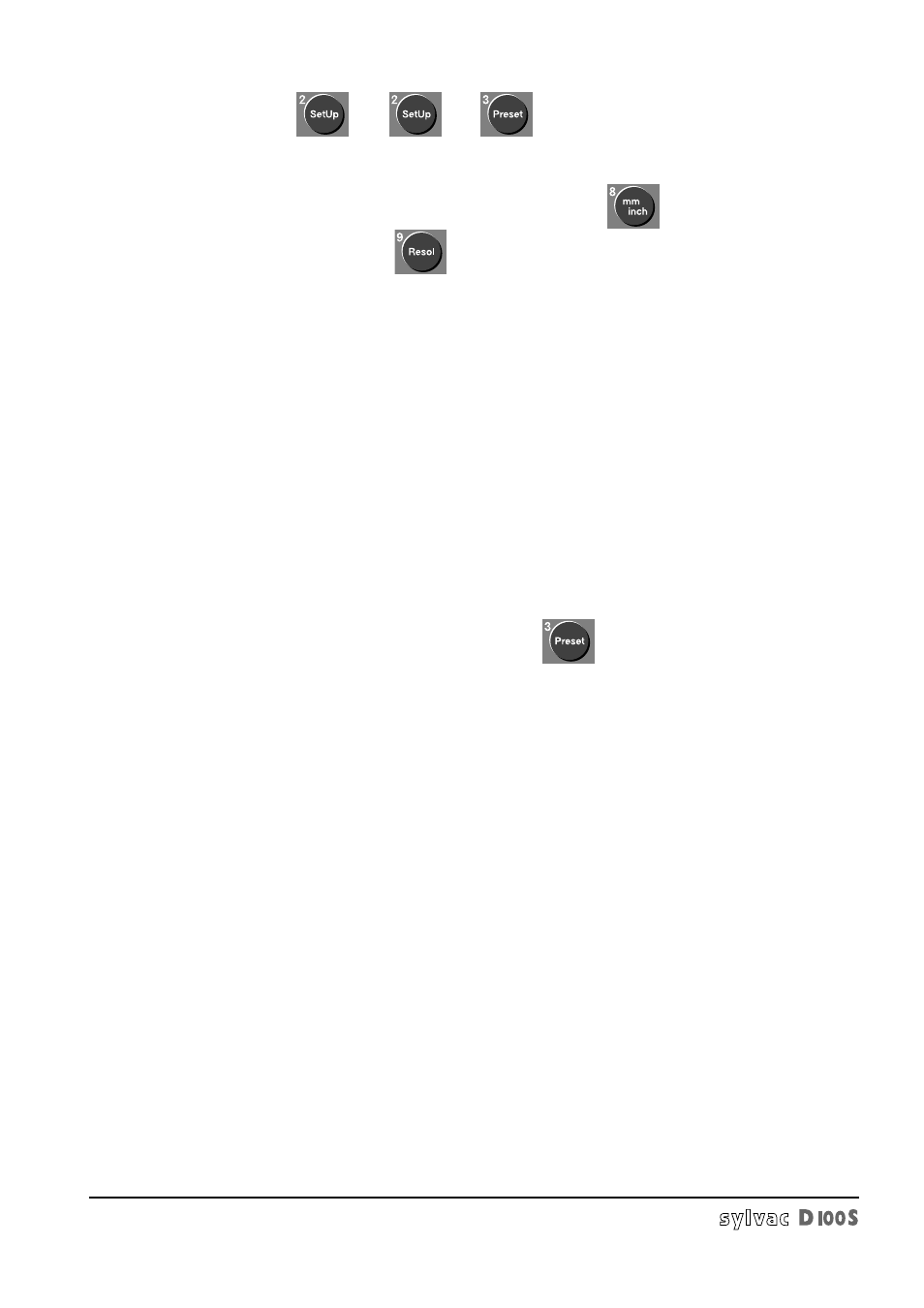

6/ Select language by pressing then then and then 1,2 or 3 (see chap. 1.6.11).
This selection is memorized permanently by the unit(along with all other datas).
7/ Where necessary, convert from metric to imperial measurement by pressing .
8/ Specify the readout resolution by pressing and then 1, 2, 3 or 4
(Section 1.6.4).
9/ If required (refer to Section 1.6.3):
- reverse direction of probe measurement
- select diameter mode (*2) or any other multiplication factor
- select measuring channel if several probes (or channels) are used, and A+/-B or A+/-B+/-C mode if necessary
- change probe - channel allocation or allocate a channel to an Opto-RS232 instrument
10/ If required, connect the foot pedal or other external contact (Section 1.8.6) and assign its function (refer to Section
1.6.11). It is also possible to connect a printer to the Centronics output (refer to Section 1.8), or a computer or any other
peripheral device to the RS-232-C input/output (Section 1.8.1) and set up transmission parameters (Section 1.6.14).
It is equally possible to connect an analog printer to the analog output (Section 1.8.3) and command devices (e.g. elec-
trovalve) on sort outputs (Section 1.8.3). It is possible to use a D110 vacuum pneumatic lifting unit (Section 5) and
configure the external contact (Section 1.6.11) in order to lift/lower probes.
11/ Reset display to zero or to any probe reference value by pressing . The stored preset value may be entered
with Set Up then Preset (Section 1.6.10).
12/ The displayed measurement can be accompanied by:
- the analog scale (Section 1.6.6)
- tolerances (Section 1.6.7) or classification (Section 1.6.8) indicators
- min/max mode (Section 1.6.12)
- store mode for statistics (Section 1.6.15 and 1.6.9)
- scanning mode if one or more D102/D108/D104 units are used (Section 1.6.13).
13/ Once the unit has been set up, the keyboard can be locked. The external contact and Print key remain active. The
mm/inch function can also be locked.
