Bowers Group Sylvac D100S Readouts User Manual
Page 19
18

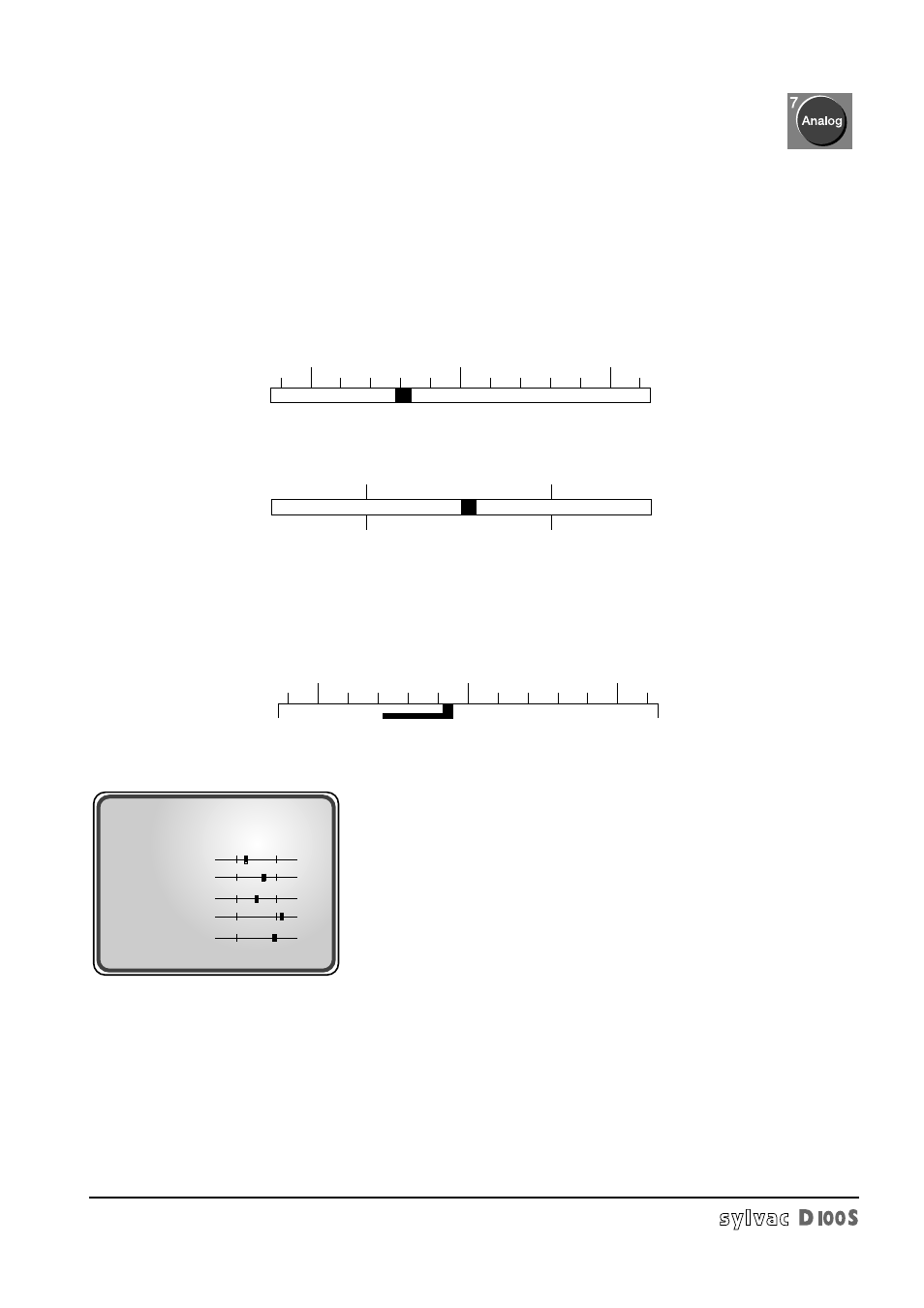

1.6.6 ANALOG KEY
Displays or removes the analog scale. The analog scale features an indicating range of 100 points, each one states one
least significant digit of the measured value (digit at the most right of the display). Thus the range covered by analog
scale is given by the working resolution:
Example: Selected resolution: 0.001 mm. One graduation is equal to 0.001 mm and the inclusive range is therefore
0.1 mm.
Example in normal mode:
In tolerance mode, the scale changes and two fixed vertical lines represent the tolerance limits:
The user can then judge centering of measure with tolerances at a glance.
In min/max mode, the line opens out to indicate searching lap back:
In scanning mode, each channel is accompanied by a scale of 40 points indicating centering with tolerances:
PIECE 1 :
1 12.864
2 5.970
3 16.004
4 10.990
5 7.887
