4.3 USE
4.3.1 Precautions
- To ensure optimum measurement precision avoid all lateral pressure when presenting the probe contact to the object
to be measured. Ideally, a mechanical retracting lifter should be used.
- Carefully clamp the fixing bearing of the probe in the holder. Fixing too tight can influence the measurement.
- Avoid any impact on the probe spindle.
4.3.2 Changing the contact point
The probe spindle has an ISO M 2.5 thread in the end allowing replacement of the contact points. When changing the
contact point, the probe spindle should be in the outermost position.
4.4 MAINTENANCE
This has been reduced to a simple operation. When the measuring spindle no longer slides with complete ease and pre-
cision, clean it with a dust free cloth and lightly lubricate with a fine oil.

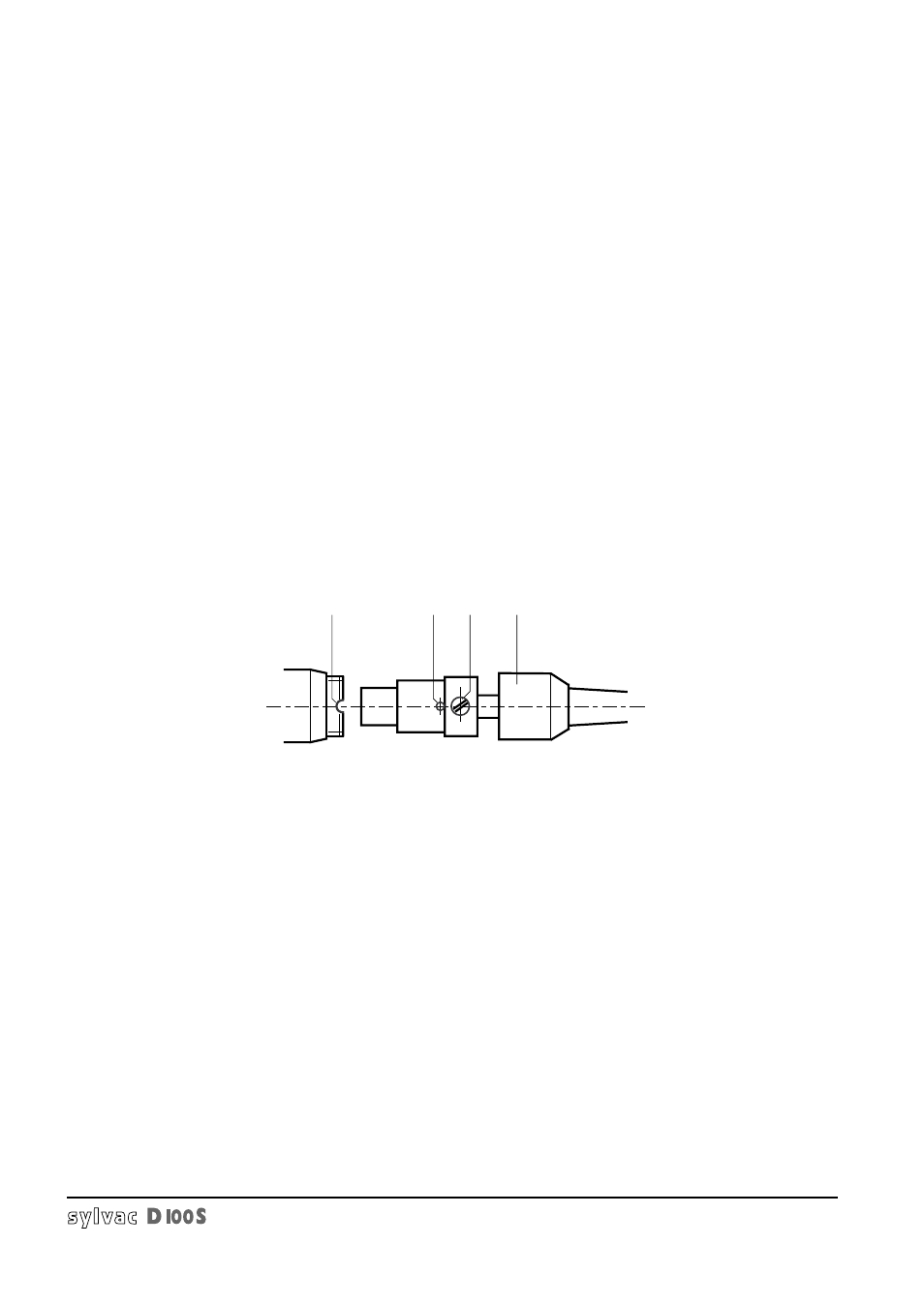

4.4.1 Replacing the connection cable, for P10, P25 and P50
- unscrew the cap (a)
- pull out the cable
- plug in the new cable, locate the pin (b) of the cable sleeve (d) in the slot (c)
- screw on the cap (a)
Notes: - use connection cable for the corresponding probe (P10-P25-P50).
- for the P5 model: the cable is connected to the probe by means of a sealed connector.
c b d a
