2.2.2/ Format for 80 column printer: for A4 printers, i.e. Centronics (standard PC link cable).

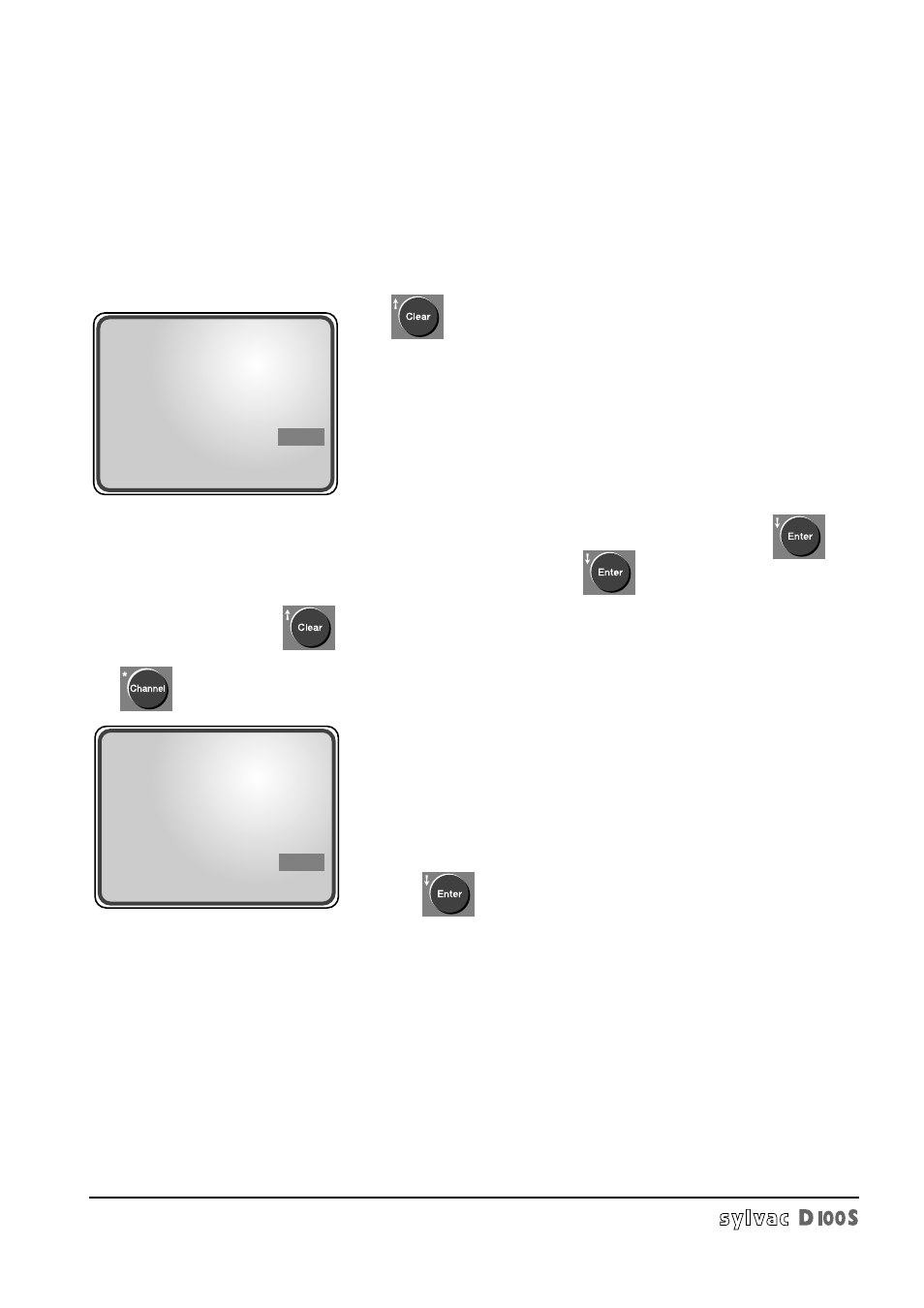

If a header is required, the unit will ask for company name and will then switch to alpha-numerical input mode, as shown
below:

Press

if no company name has to be printed.

Otherwise an alpha-numerical name may be entered (using figures & letters up
to 20 characters).

The table opposite shows the alphabetic input display. The 12 left-hand keys of
the keyboard each now represent 2 or 3 letters. The position of letters on the dis-
play correspond: to the position on the keyboard. Pressing once on a key
selects the first letter of 2 or 3, pressing a second time on the same key selects
the second letter, pressing again selects the first letter again (or the third letter

for the last 2 keys) and so on. Another couple of letters may also be selected, until confirmed with the

key.

Continue to input letters and figures and confirm the word thus entered with

In the case of an error, press

and restart.

The

key allows you to switch from alphabetic to numerical input and back:

The keys are also represented graphically. It is possible to insert a blank space
(...).

Continue inserting different letters and numbers and confirm the word

entered by

Example: in alpha mode, 1st depression of key 7—> selects letter A, 2nd depression —> selects letter B, 3rd depres-
sion —> return to letter A, and so on...Confirm letter with Enter key.

When company name is entered, the unit asks for:

- drawing number

- workstation

- workpiece identification: - at heading

- at each printing. This allows each measured workpiece to be identified, either in
normal measuring mode, or in scanning mode.

- Insertion of date and time (real time clock).

If one item of a header is not entered (question mark instead of word), this will not be printed.

Factory name
?
7 8 9
4 5 6
1 2 3
0 • space ALPHA

NUM

Factory name
?
AB CD EF
GH IJ KL
MN OP QR
ST UVW XYZ

ALPHA

NUM
