Pi setpoint, Pi output, Pi gains – Rockwell Automation 20B PowerFlex 70, PowerFlex 700 Reference Manual User Manual

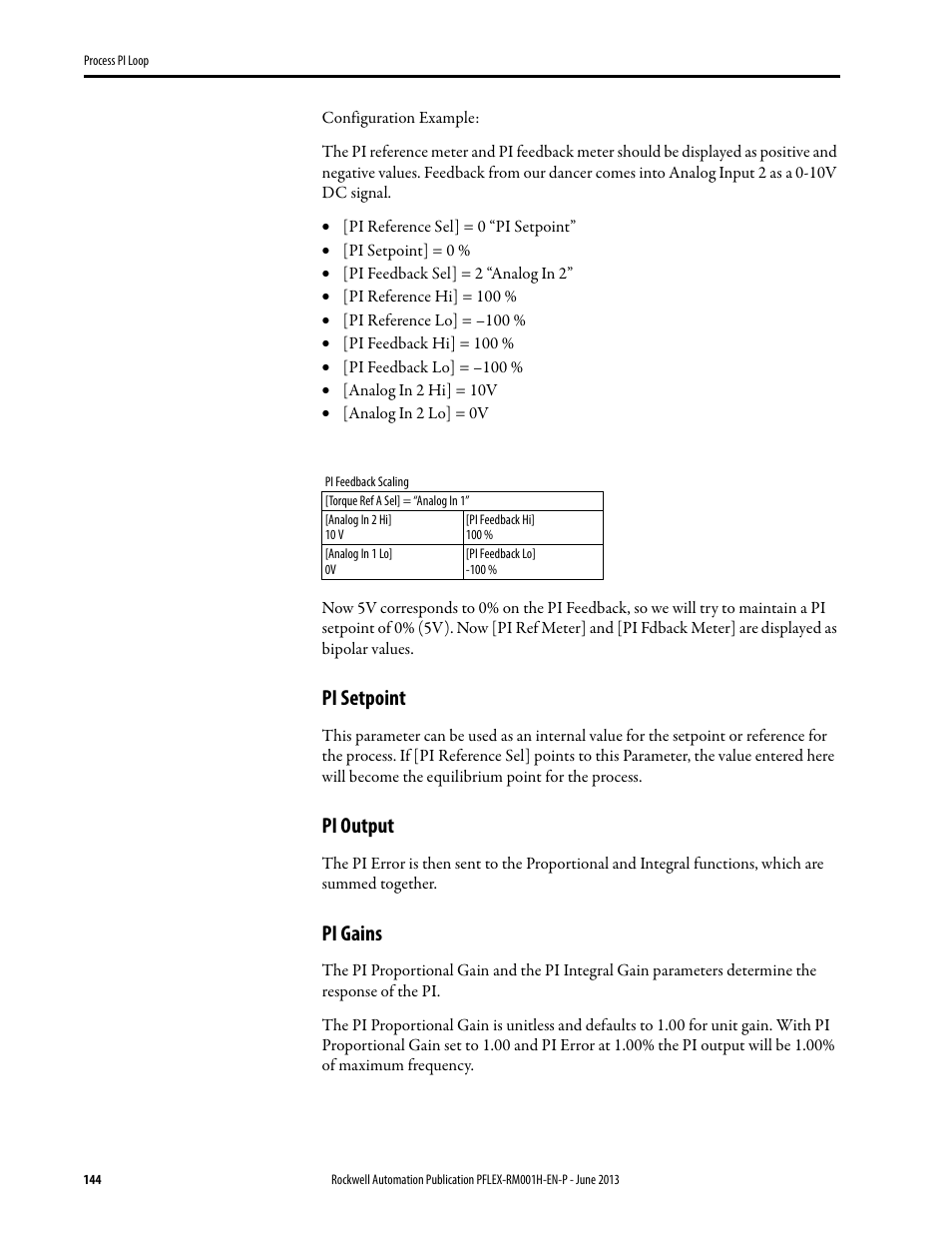

Page 144
