Publication GMSI10-UM013D-EN-P - May 2010
2 Introduction
The XM-122 also includes a single on-board relay, expandable to five, an
integral tachometer, two 4-20 mA outputs, and a buffer output for each input.
The module can collect data under steady-state and startup/coast-down
conditions, capture trend and spectra or waveform data on event, and monitor
up to 16 alarms making the module a complete monitoring system.
The module can operate stand-alone, or it can be deployed on a standard or
dedicated DeviceNet network where it can provide real-time data and status
information to other XM modules, PLCs, DCS and Condition Monitoring
Systems.
The XM-122 can be configured remotely via the DeviceNet network, or locally
using a serial connection to a PC or laptop. Refer to Chapter 3 for a list of the
configuration parameters.
XM-122 Module
Components The XM-122 consists of a terminal base unit and an instrument module. The
XM-122 gSE Vibration Module and the XM-940 Terminal Base are shown
below.

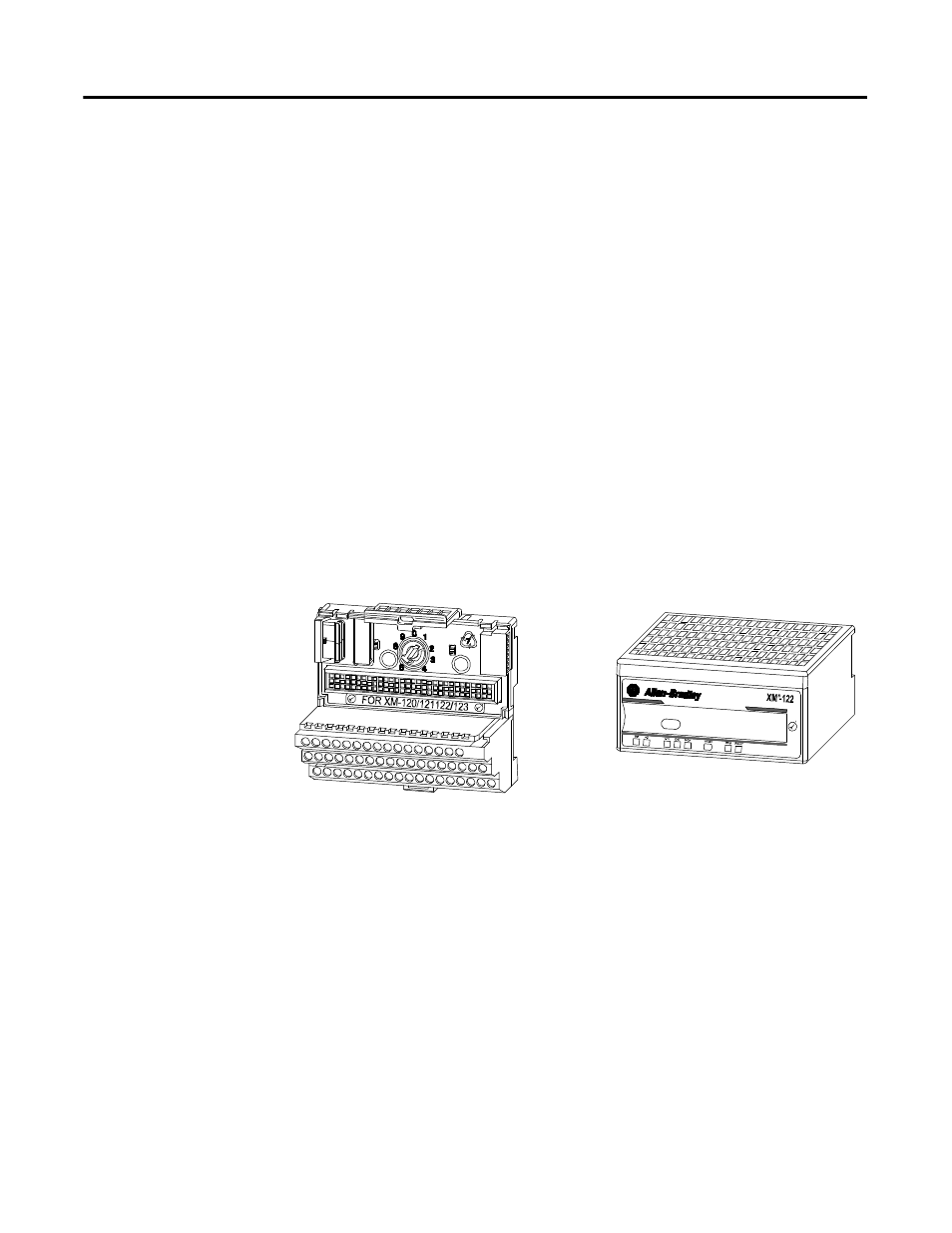

Figure 1.1 XM-122 Module Components
• XM-940 Dynamic Measurement Module Terminal Base - A DIN rail
mounted base unit that provides terminations for all field wiring
required by XM Dynamic Measurement modules, including the
XM-122.
gSE VIBRATION 1440-VSE02-01RA
XM-940 Dynamic Measurement Module Terminal Base Unit
Cat. No. 1440-TB-A
XM-122 gSE Vibration Module
Cat. No. 1440-VSE02-01RA
