Publication 1793-6.5.1 - April 1999
Chapter
5
How Communication Takes Place
and I/O Image Table Mapping
with the DeviceNet Adapter
Chapter Objectives In this chapter, we tell you about:
• DeviceNetManager software
• I/O structure
• image table mapping
• factory defaults
About DeviceNetManager
Software DeviceNetManager software is a tool used to configure your FLEX I/O
DeviceNet adapter and its related modules, including any FLEX Integra
modules. This software tool can be connected to the adapter via the
DeviceNet network.
You must understand how DeviceNetManager software works in order to
add a device to the network. Refer to the DeviceNetManager Software User
Manual, publication 1787-6.5.3.

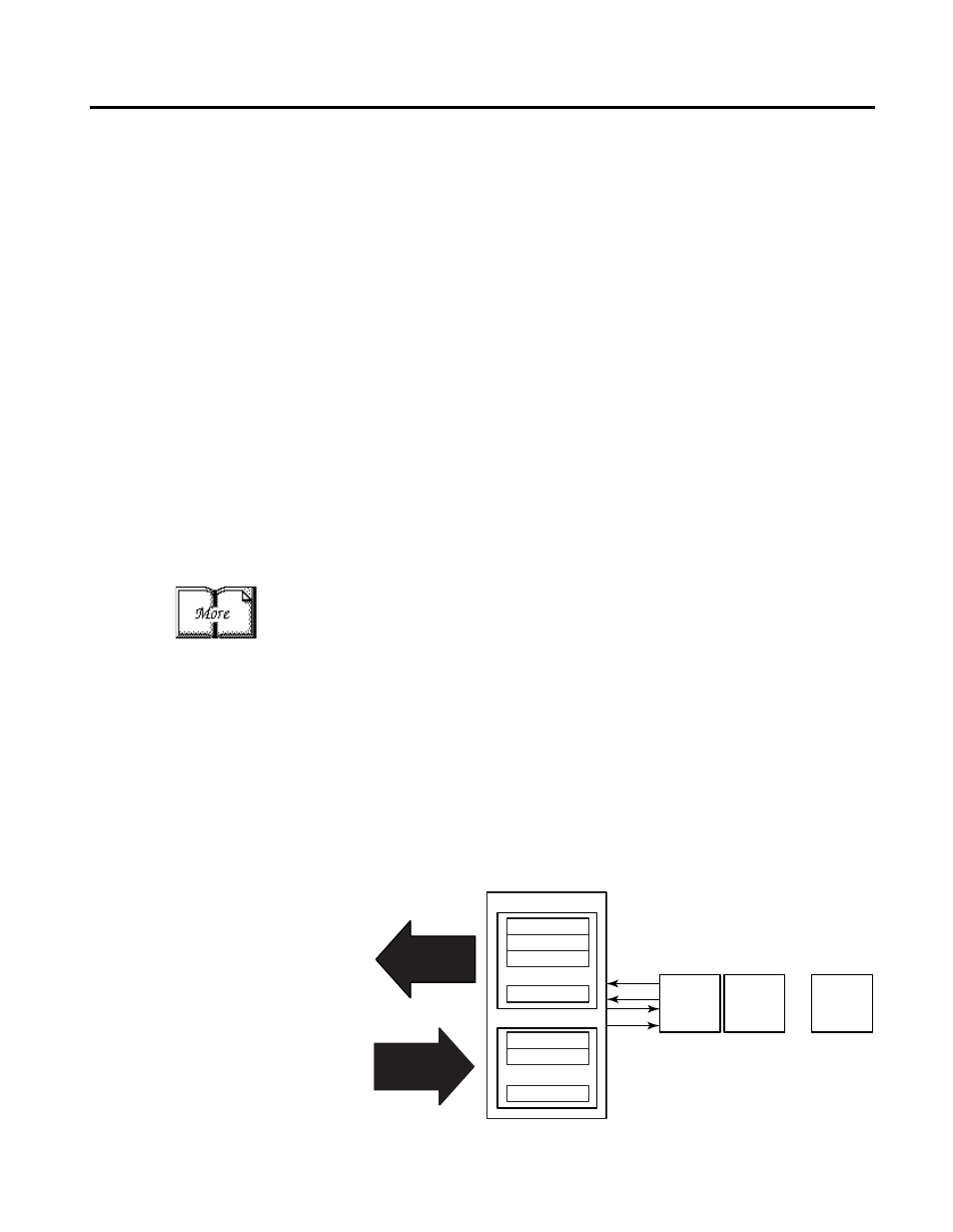

Polled I/O Structure Output data is received by the adapter in the order of the installed I/O
modules. The Output data for Slot 0 is received first, followed by the
Output data for Slot 1, and so on up to slot 7.
The first word of input data sent by the adapter is the Adapter Status Word.
This is followed by the input data from each slot, in the order of the
installed I/O modules. The Input data from Slot 0 is first after the status
word, followed by Input data from Slot 2, and so on up to slot 7.
Adapter Status
Slot 0 Input Data
Slot 1 Input Data
Slot 7 Input Data
Slot 0 Output Data
Slot 1 Output Data
Slot 7 Output Data
Read Data
Write Data
Network READ
Network WRITE
DeviceNet Adapter
Slot 0
I/O Module
Read
Write Slot 1
I/O Module
Slot 7
I/O Module
...
... ...
... ...
