Troubleshoot a Redundant System
Chapter 9

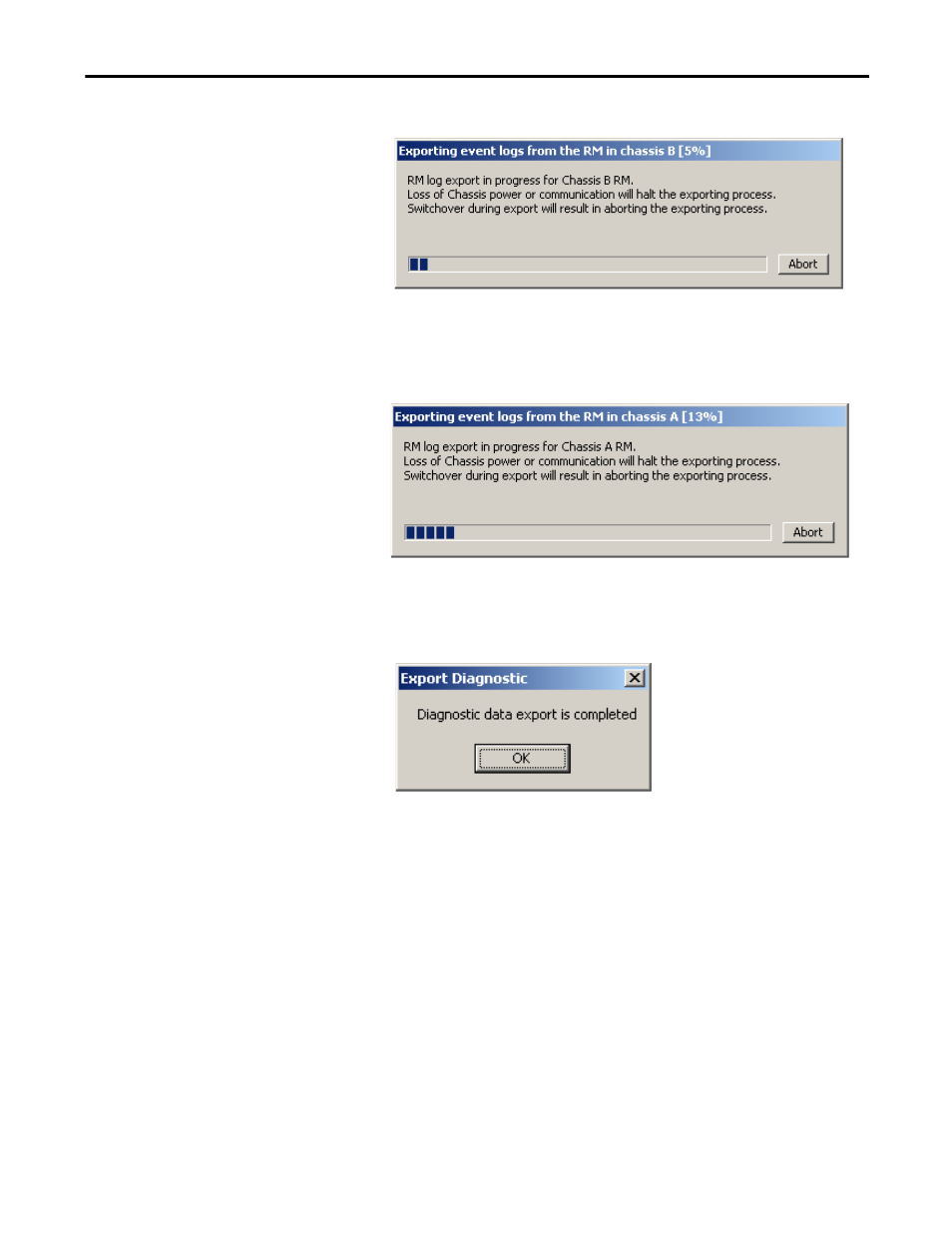

In the following example, chassis B is the primary chassis.
The secondary chassis then exports.
In the following example, chassis A is the secondary chassis.
A confirmation dialog box displays when the export completes.
7. Click OK.
