Figure 8.3, Tcp/ip configuration web page – Rockwell Automation 1203-EN1 EtherNet/IP-to-SCANport Module User Manual
Page 94
8-6
Viewing the Module’s Web Pages
The TCP/IP Configuration web page provides details about the module’s
Ethernet settings and network activities.

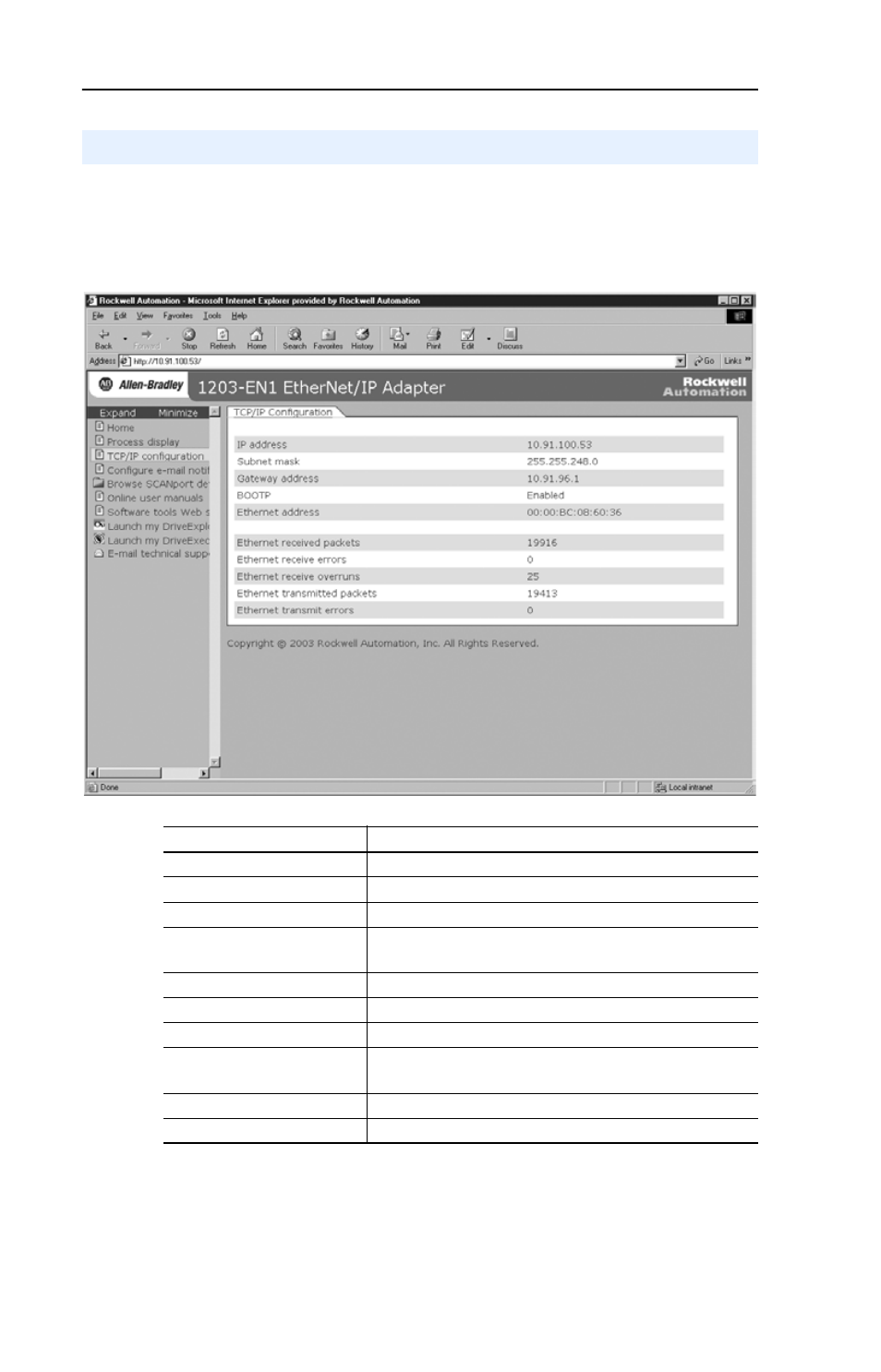

Figure 8.3 Example of TCP/IP Configuration Web Page
TCP/IP Configuration Web Page
Information
Description
IP Address
IP address of the module.
Subnet Mask
Subnet mask for the module’s network.
Gateway Address
Address for the gateway device on the module’s network.
BOOTP
Whether BOOTP is being used to configure the module’s
network information.
Ethernet Address
Hardware address for the module.
Ethernet received packets
Number of packets that the module has received.
Ethernet received errors
Number of receive errors reported by the hardware.
Ethernet received overruns
Number of receive buffer overruns reported by the
hardware.
Ethernet transmitted packets Number of packets that the module has sent.
Ethernet transmit errors
Number of transmit errors reported by the hardware.
