Configuring the Scanner or Bridge 4-5

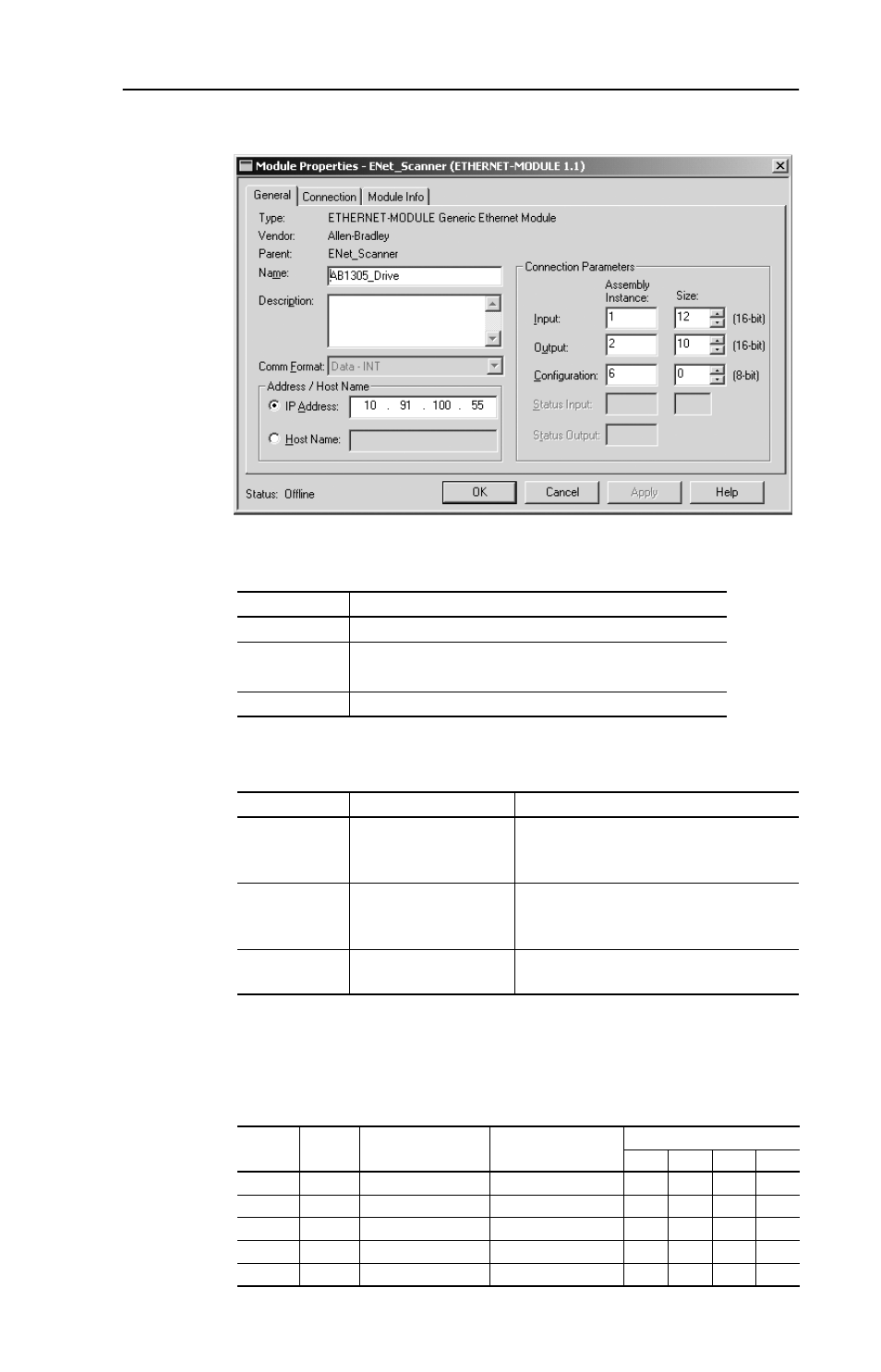

Figure 4.8 Module Properties Dialog Box - Page 1
3. Edit the following information about the module:
4. Under Connection Parameters, edit the following:
The following table defines the number of 16-bit words that you need
for input and output depending on your configuration.
Table 4.A 1305 Drive (16-bit Reference/Feedback and Datalinks)
Box Type
Name A name to identify the module and drive.
Comm. Format Data - INT.
This setting formats the data in 16-bit words.
IP Address The IP address of the module.
Box Assembly Instance Size
Input 1
(This value is required.) The value will vary based on your
application (setting of Parameters 32 -
[SP I/O Cfg] and 46 - [M-S Output]).
Output 2
(This value is required.) The value will vary based on your
application (setting of Parameters 32 -
[SP I/O Cfg] and 45 - [M-S Input]).
Configuration 6
(This value is required.) 0
(This value is required.)
Input
Size Output
Size Logic Command/
Status Reference/
Feedback (16-bit) Datalinks (16-bit)
A
B C D
4 2
✔ ✔
6 4
✔ ✔ ✔
8 6
✔ ✔ ✔ ✔
10 8
✔ ✔ ✔ ✔ ✔
12 10
✔ ✔ ✔ ✔ ✔ ✔
