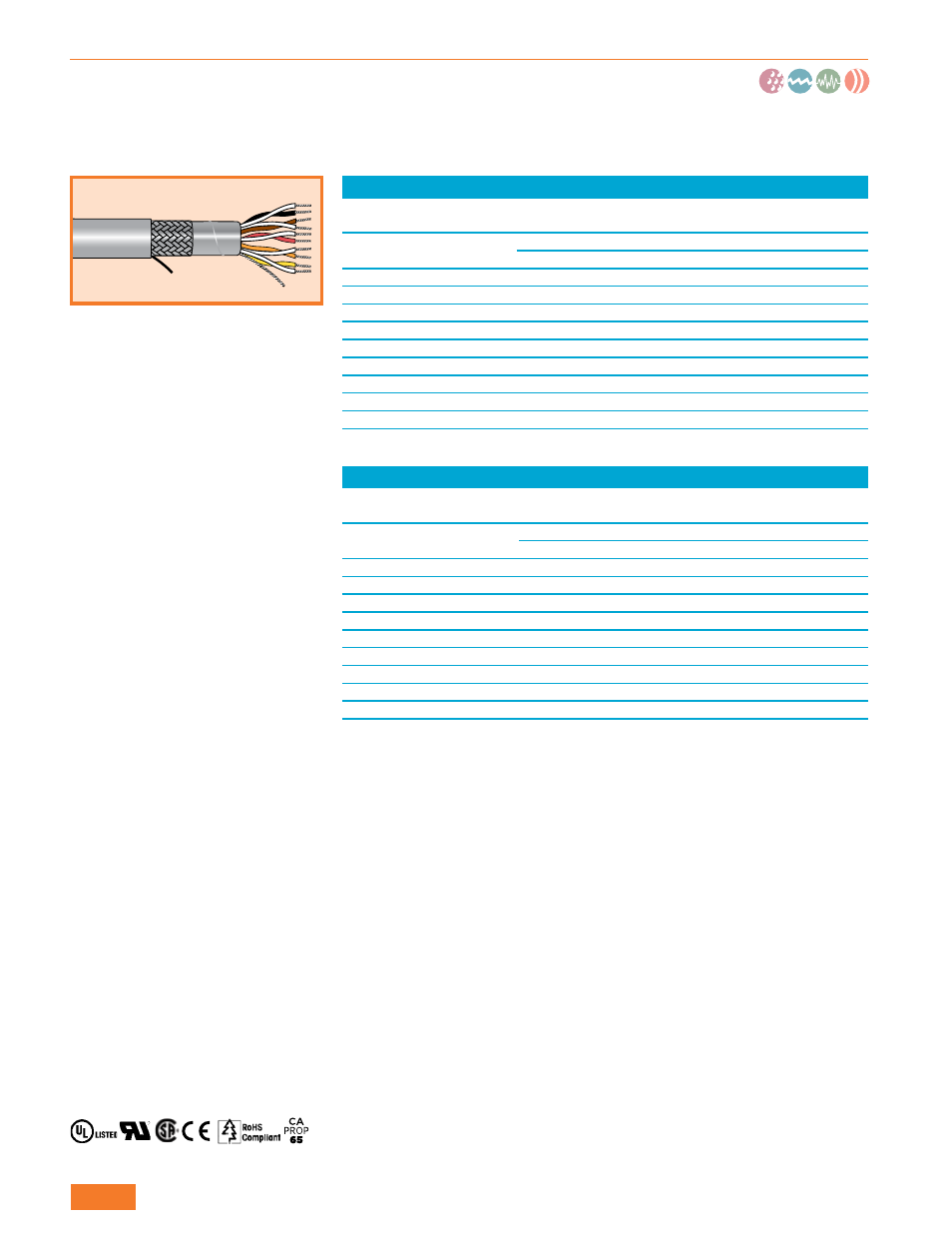

Xtra-Guard® Continuous Flex Data
C-Track or High Flexing Applications Up to 6 Million Flex Life Cycles
300 V Foil/Braid Shield, Multipair
UL CM
UL AWM 2661
CSA AWM I/II A/B FT4
CSA CMG
CE
Operating Temperature
• +5°C to +105°C (flexing)
• -10°C to +105°C (stationary)
Conductor Color Coding
• Chart A (page 516)
• Jacket color: slate
Materials
• Finely stranded tinned copper
conductors
• Lubricated semi-rigid PVC
insulation
• Shield: Combination foil
and braid
Aluminum/polyester foil shield,
with 25% overlap and tinned
copper drain wire
Tinned copper braid with
85% coverage
• Oil-resistant PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-FLEX: Highly flexible,
cross-linked silicone rubber
• FIT-650: Chemical/
temperature resistant cross-
linked fluoroelastomer
24 AWG (0.20 mm
2
)
Stranding: 10/34 (10 x 0.16 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
86601CY
1
0.204
5.18
0.040
1.02
86602CY
2
0.260
6.60
0.040
1.02
86603CY
3
0.272
6.91
0.040
1.02
86604CY
4
0.292
7.42
0.040
1.02
86605CY
5
0.314
7.98
0.040
1.02
86606CY
6
0.337
8.56
0.040
1.02
86608CY
8
0.385
9.78
0.040
1.02
86610CY
10
0.427
10.85
0.045
1.14
86614CY
14
0.463
11.76
0.053
1.35
22 AWG (0.38 mm
2
)
Stranding: 19/34 (19 x 0.16 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
86701CY
1
0.220
5.59
0.040
1.02
86702CY
2
0.287
7.29
0.040
1.02
86703CY
3
0.301
7.65
0.040
1.02
86704CY
4
0.324
8.23
0.040
1.02
86705CY
5
0.350
8.89
0.040
1.02
86706CY
6
0.377
9.58
0.040
1.02
86708CY
8
0.443
11.25
0.045
1.14
86710CY
10
0.497
12.62
0.053
1.35
86714CY
14
0.527
13.39
0.053
1.35
