Cable > Xtra-Guard > Xtra-Guard 1 > Multipair > Unshielded > 300 V

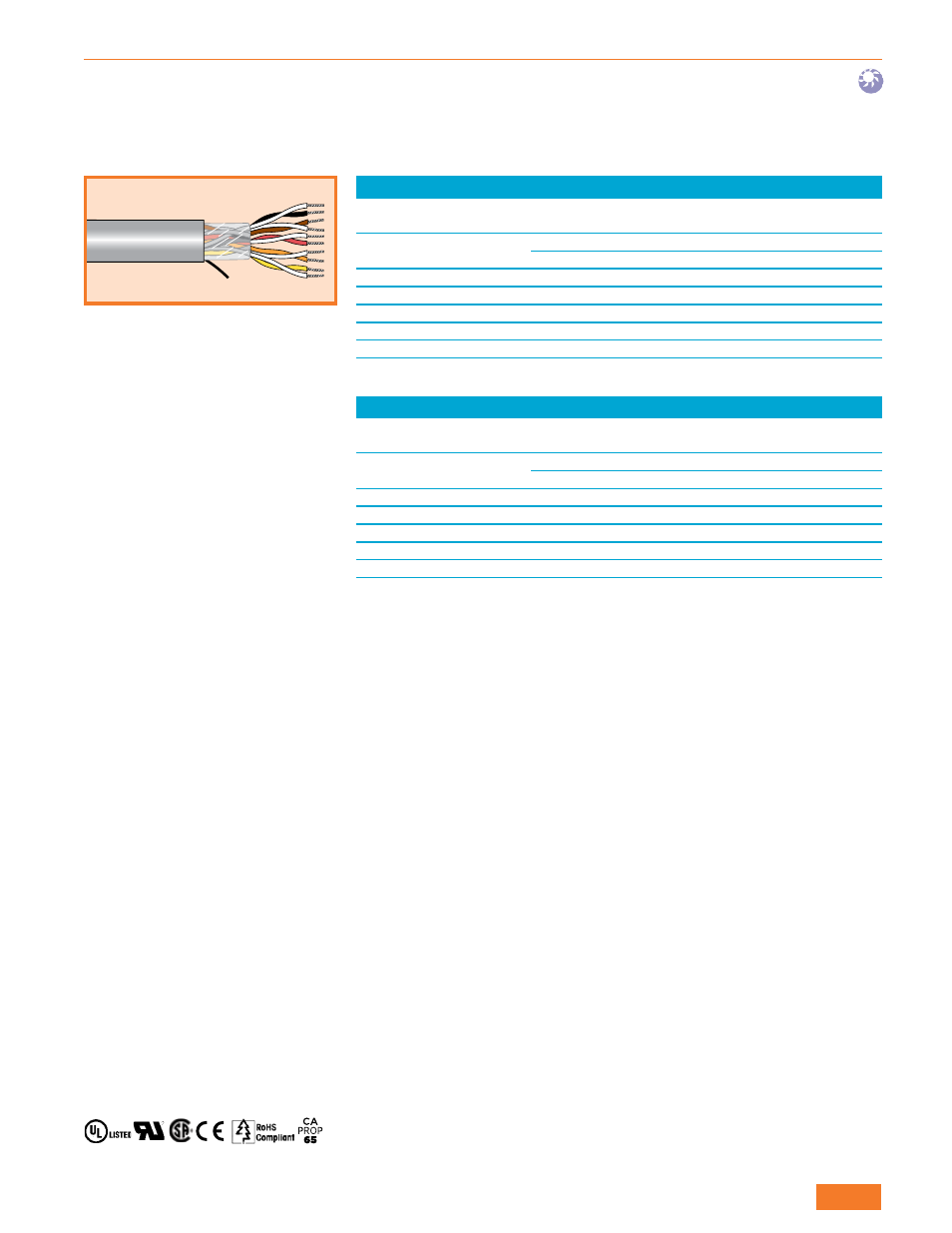

Xtra-Guard® 1
High Performance
300 V Unshielded, Multipair
UL CM
UL AWM 2464 VW-1
CSA CMG FT4
Operating Temperature
• –30°C to +80°C (AWM)
• –30°C to +105°C (CM)
Conductor Color Coding
• 24, 22 AWG: Chart B (page 516)
• 20, 18, 16 AWG: Chart D
(page 519)
• Jacket Colors
• Put-ups: slate
• Bulk: nine colors available
(page 31, minimums
may apply)
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-221: General-purpose,
cross-linked polyolefin (indoor)
• FIT-321: Medium-wall,
adhesive-lined, cross-linked
polyolefin (outdoor)
20 AWG (0.56 mm 2 )
Stranding: 7/28 (7 x 0.32 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No. Pairs
Nominal Diameter Jacket Thickness
Inch mm Inch mm
5282C 2 0.298 7.57 0.032 0.81
5283C 3 0.316 8.03 0.032 0.81
5286C 6 0.415 10.54 0.032 0.81
5289C 9 0.487 12.37 0.032 0.81
5289/12C 12 0.545 13.84 0.032 0.81
18 AWG (0.81 mm 2 )
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No. Pairs
Nominal Diameter Jacket Thickness
Inch mm Inch mm
5032C 2 0.327 8.31 0.032 0.81
5033C 3 0.348 8.84 0.032 0.81
5036C 6 0.460 11.68 0.032 0.81
5039C 9 0.541 13.74 0.053 1.35
5039/12C 12 0.648 16.46 0.053 1.35
