Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
45
Cable > Xtra-Guard > Xtra-Guard 1 > Multiconductor > Supra-Shield Foil/Braid > 300 V

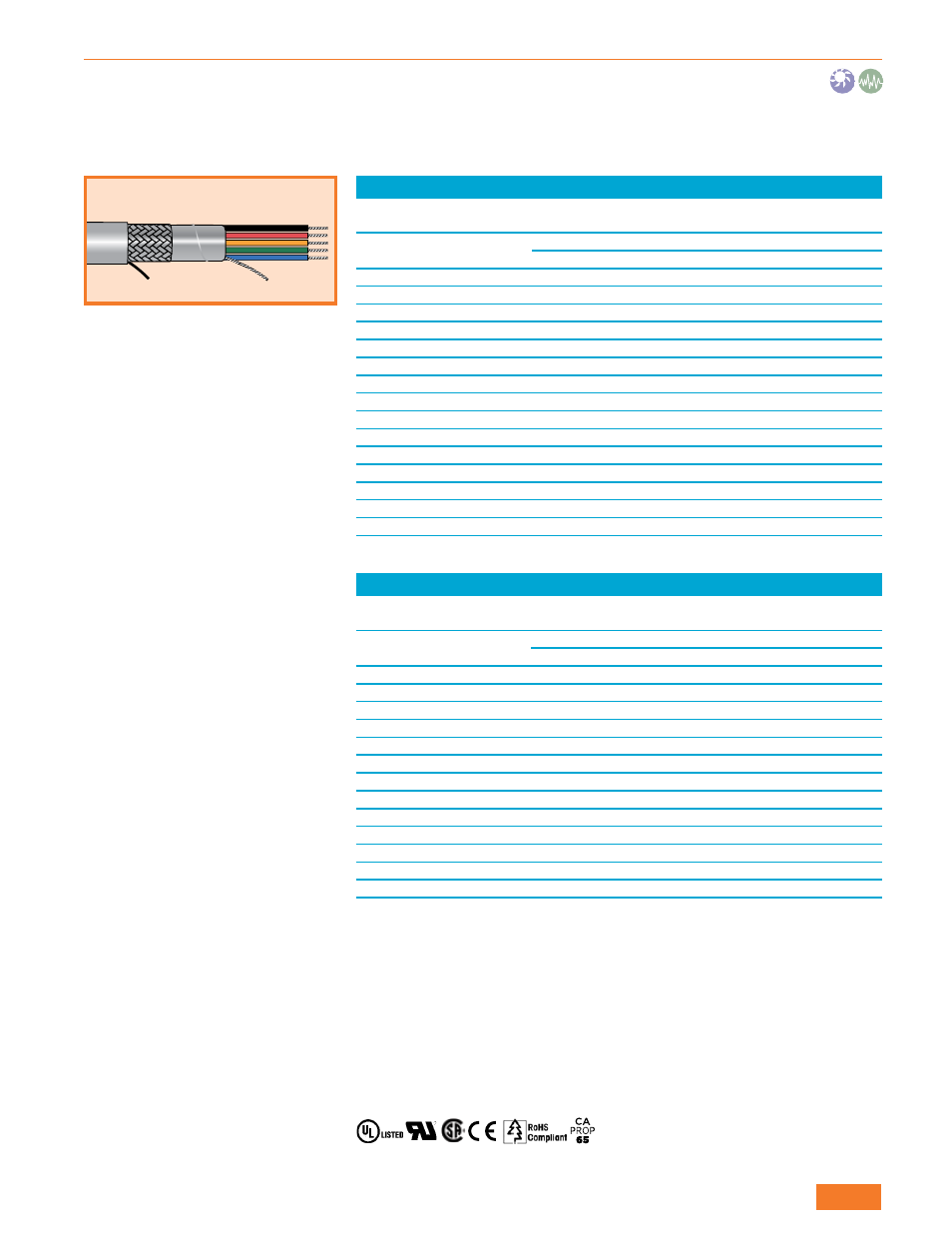

Xtra-Guard® 1
High Performance
300 V Supra-Shield® Foil/Braid, Multiconductor
UL CM
UL AWM 2464 VW-1
CSA CMG FT4
Operating Temperature
• –30°C to +80°C (AWM)
• –30°C to +105°C (CM)
Conductor Color Coding
• 28, 26, 24, 22 AWG: Chart E
(page 520)
• 20, 18, 16 AWG: Chart D (page 519)
• Jacket Colors
• Put-ups: slate
• Bulk: nine colors available
(page 31, minimums
may apply)
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum
foil with 25% overlap min.
Tinned copper drain wire sized
the same as conductors
Tinned copper braid, 70%
coverage min.
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-221: General-purpose,
cross-linked polyolefin (indoor)
• FIT-321: Medium-wall,
adhesive-lined, cross-linked
polyolefin (outdoor)
22 AWG (0.35 mm
2
)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part Number
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
5102C
2
0.196
4.98
0.032
0.81
5103C
3
0.204
5.18
0.032
0.81
5104C
4
0.217
5.51
0.032
0.81
5106C
6
0.247
6.27
0.032
0.81
5108C
8
0.263
6.68
0.032
0.81
5110C
10
0.296
7.52
0.032
0.81
5110/15C
15
0.327
8.31
0.032
0.81
5110/20C
20
0.359
9.12
0.032
0.81
5110/25C
25
0.396
10.06
0.032
0.81
5110/30C
30
0.417
10.59
0.032
0.81
5110/40C
40
0.462
11.73
0.032
0.81
5110/50C
50
0.506
12.85
0.032
0.81
5110/60C
60
0.588
14.94
0.032
0.81
5110/70C
70
0.630
16.00
0.032
0.81
5110/80C
80
0.665
16.89
0.032
0.81
20 AWG (0.56 mm
2
)
Stranding: 7/28 (7 x 0.32
mm)
Insulation thickness: 0.016 (0.41 mm)
Part Number
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
5152C
2
0.236
5.99
0.032
0.81
5153C
3
0.247
6.27
0.032
0.81
5154C
4
0.266
6.76
0.032
0.81
5156C
6
0.308
7.82
0.032
0.81
5158C
8
0.330
8.38
0.032
0.81
5160C
10
0.376
9.55
0.032
0.81
5160/15C
15
0.419
10.64
0.032
0.81
5160/20C
20
0.465
11.81
0.032
0.81
5160/25C
25
0.516
13.11
0.032
0.81
5160/30C
30
0.545
13.84
0.032
0.81
5160/40C
40
0.656
16.66
0.053
1.35
5160/50C
50
0.718
18.24
0.053
1.35
5160/60C
60
0.774
19.66
0.053
1.35
