Cable > Xtra-Guard > Xtra-Guard 3 > Multiconductor > Foil Shielded > 300 V

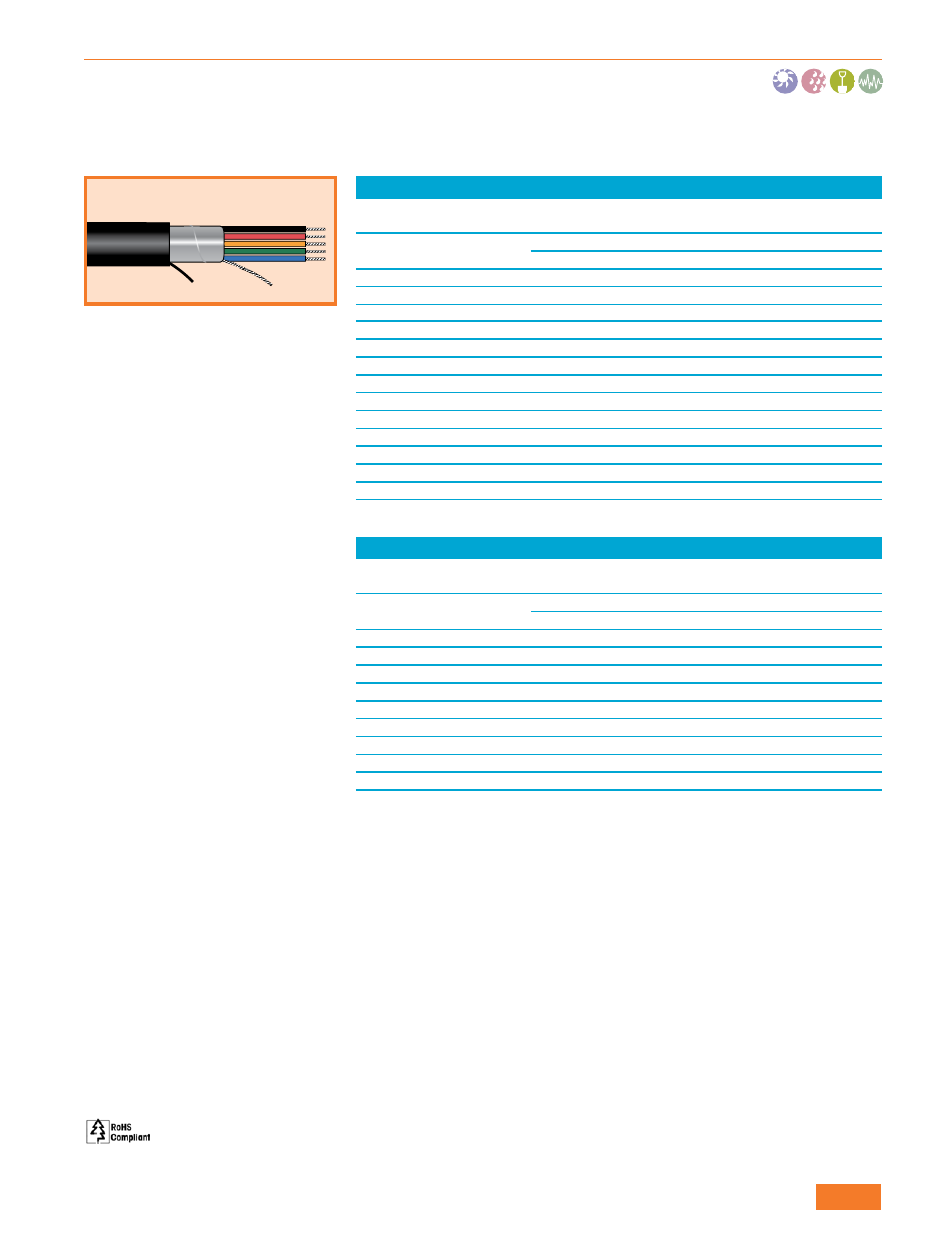

Xtra-Guard® 3
Direct Burial
300 V Foil Shield, Multiconductor
Operating Temperature
• –30°C to +80°C
Conductor Color Coding
• 22 AWG: Chart E (page 520)
• 20 AWG: Chart D (page 519)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Specially formulated
polyethylene jacket
• UV resistant
• Aluminum/polyester foil shield,
with 25% overlap and foil
facing inward
• Tinned copper drain wire sized
the same as cable conductors
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-700: Bonding,
thermoplastic adhesive lined,
cross-linked polyolefin
22 AWG (0.35 mm 2 )
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Conductors
Nominal Diameter Jacket Thickness
Inch mm Inch mm
35192 2 0.171 4.34 0.032 0.81
35193 3 0.179 4.55 0.032 0.81
35194 4 0.192 4.88 0.032 0.81
35196 6 0.222 5.64 0.032 0.81
35198 8 0.237 6.02 0.032 0.81
35199/10 10 0.271 6.88 0.032 0.81
35199/15 15 0.301 7.65 0.032 0.81
35199/20 20 0.333 8.46 0.032 0.81
35199/25 25 0.371 9.42 0.032 0.81
35199/30 30 0.392 9.96 0.032 0.81
35199/40 40 0.436 11.07 0.032 0.81
35199/50 50 0.479 12.17 0.032 0.81
35199/60 60 0.521 13.23 0.032 0.81
20 AWG (0.56 mm 2 )
Stranding: 7/28 (7 x 0.32 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No. Conductors
Nominal Diameter Jacket Thickness
Inch mm Inch mm
35462 2 0.211 5.36 0.032 0.81
35463 3 0.222 5.64 0.032 0.81
35464 4 0.240 6.10 0.032 0.81
35466 6 0.282 7.16 0.032 0.81
35468 8 0.304 7.72 0.032 0.81
35470 10 0.351 8.92 0.032 0.81
35470/15 15 0.393 9.98 0.032 0.81
35470/20 20 0.437 11.10 0.032 0.81
35470/25 25 0.491 12.47 0.032 0.81
