Cable > Xtra-Guard > Xtra-Guard 3 > Multipair > Foil Shield > 300 V

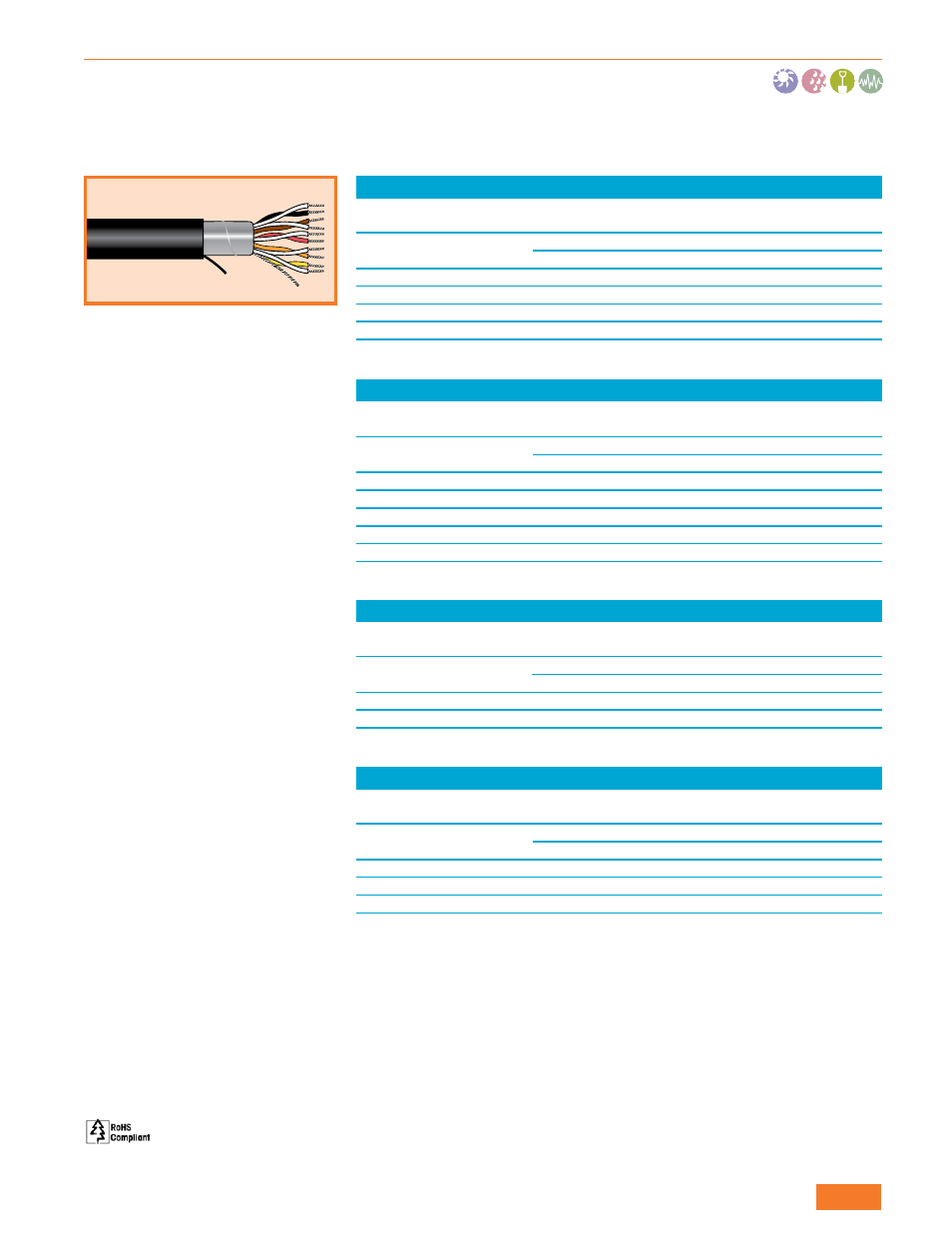

Xtra-Guard® 3
Direct Burial
300 V Foil Shield, Multipair
Operating Temperature
• –30°C to +80°C
Conductor Color Coding
• 24, 22 AWG: Chart B (page 516)
• 20, 18 AWG: Chart A (page 516)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Specially formulated
polyethylene jacket
• UV resistant
• Aluminum/polyester foil shield,
with 25% overlap and foil
facing inward
• Tinned copper drain wire sized
the same as cable conductors
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-700: Bonding,
thermoplastic adhesive lined,
cross-linked polyolefin
24 AWG (0.23 mm 2 )
Stranding: 7/32 (7 x 0.20 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Pairs
Nominal Diameter Jacket Thickness
Inch mm Inch mm
35491 1 0.159 4.04 0.032 0.81
35492 2 0.215 5.46 0.032 0.81
35493 3 0.227 5.77 0.032 0.81
35494 4 0.246 6.25 0.032 0.81
22 AWG (0.35 mm 2 )
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Pairs
Nominal Diameter Jacket Thickness
Inch mm Inch mm
35481 1 0.171 4.34 0.032 0.81
35482 2 0.235 5.97 0.032 0.81
35483 3 0.248 6.30 0.032 0.81
35484 4 0.269 6.83 0.032 0.81
35485 5 0.293 7.44 0.032 0.81
20 AWG (0.56 mm 2 )
Stranding: 7/28 (7 x 0.32 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No. Pairs
Nominal Diameter Jacket Thickness
Inch mm Inch mm
35452 2 0.301 7.65 0.032 0.81
35453 3 0.319 8.10 0.032 0.81
18 AWG (0.81 mm 2 )
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No. Pairs
Nominal Diameter Jacket Thickness
Inch mm Inch mm
35372 2 0.330 8.38 0.032 0.81
35373 3 0.350 8.89 0.032 0.81
35376 6 0.462 11.73 0.032 0.81
