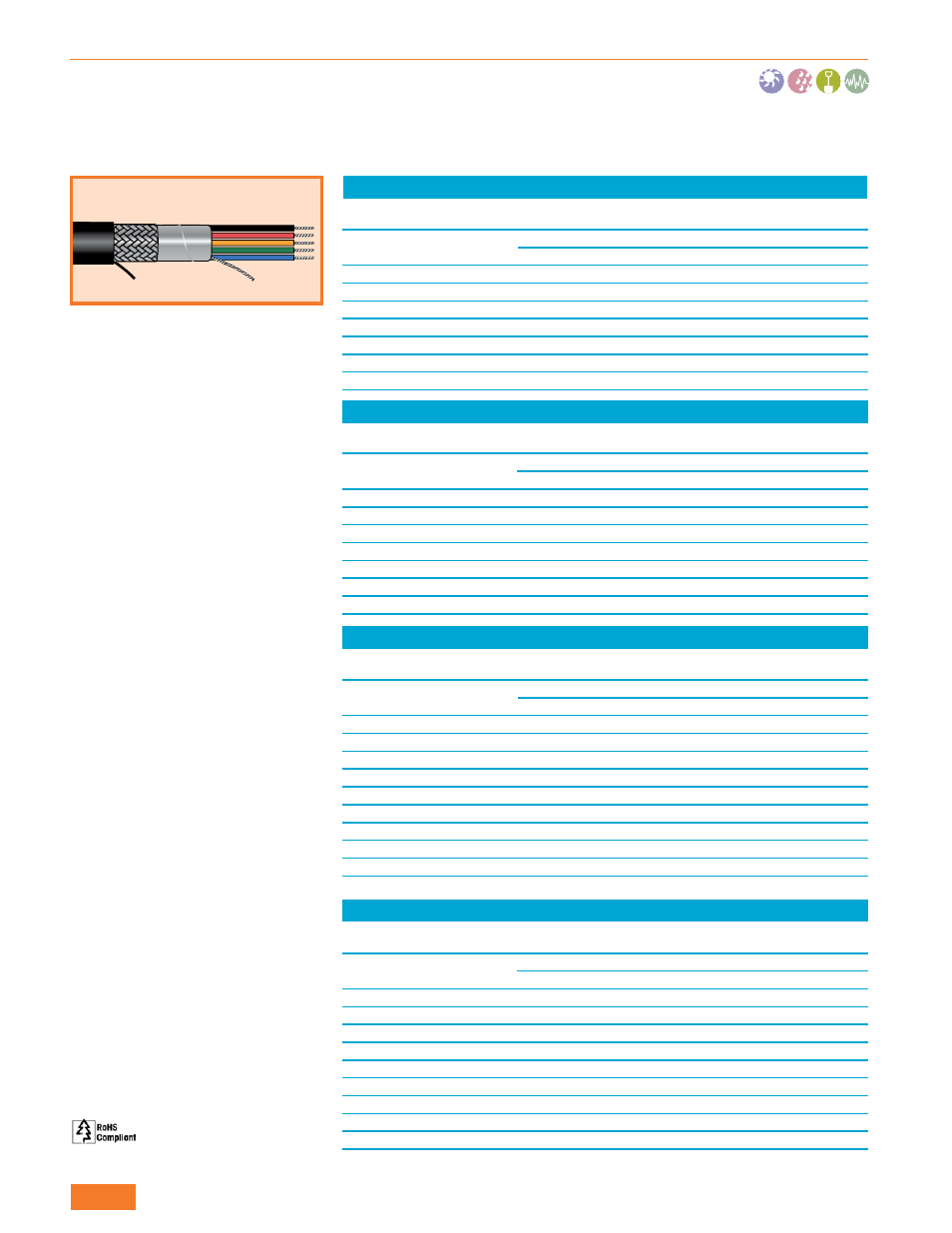

Xtra-Guard® 3
Direct Burial
300 V Supra-Shield® Foil/Braid, Multiconductor
Operating Temperature
• –30°C to +80°C
Conductor Color Coding
• 22 AWG: Chart E (page 520)
• 20, 18, 16 AWG: Chart D
(page 519)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Specially formulated
polyethylene jacket
• UV resistant
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum
foil with 25% overlap min.
Tinned copper drain wire sized
the same as conductors
Tinned copper braid, 70%
coverage min.
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-700: Bonding,
thermoplastic adhesive lined,
cross-linked polyolefin
22 AWG (0.35 mm
2
)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
35102
2
0.195
4.95
0.032
0.81
35103
3
0.203
5.16
0.032
0.81
35104
4
0.216
5.49
0.032
0.81
35106
6
0.246
6.25
0.032
0.81
35108
8
0.261
6.63
0.032
0.81
35110
10
0.295
7.49
0.032
0.81
35110/15
15
0.325
8.26
0.032
0.81
18 AWG (0.81 mm
2
)
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
35162
2
0.253
6.43
0.032
0.81
35162/1*
2
0.253
6.43
0.032
0.81
35163
3
0.265
6.73
0.032
0.81
35163/1*
3
0.265
6.73
0.032
0.81
35164
4
0.286
7.26
0.032
0.81
35166
6
0.333
8.46
0.032
0.81
35168
8
0.358
9.09
0.032
0.81
35170
10
0.411
10.44
0.032
0.81
35170/15
15
0.458
11.63
0.032
0.81
20 AWG (0.56 mm
2
)
Stranding: 7/28 (7 x 0.32
mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
35152
2
0.235
5.97
0.032
0.81
35153
3
0.246
6.25
0.032
0.81
35154
4
0.264
6.71
0.032
0.81
35156
6
0.306
7.77
0.032
0.81
35158
8
0.328
8.33
0.032
0.81
35160
10
0.375
9.53
0.032
0.81
35160/15
15
0.417
10.59
0.032
0.81
16 AWG (1.23 mm
2
)
Stranding: 19/0.0117 (19 x 0.29 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
35172
2
0.277
7.04
0.032
0.81
35172/1*
2
0.277
7.04
0.032
0.81
35173
3
0.291
7.39
0.032
0.81
35173/1*
3
0.291
7.39
0.032
0.81
35174
4
0.315
8.00
0.032
0.81
35176
6
0.369
9.37
0.032
0.81
35178
8
0.398
10.11
0.032
0.81
35180
10
0.459
11.66
0.032
0.81
35180/15
15
0.513
13.03
0.032
0.81
