Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
93
Cable > Xtra-Guard > Xtra-Guard 4 > Multipair > Supra-Shield Foil/Braid > 300 V

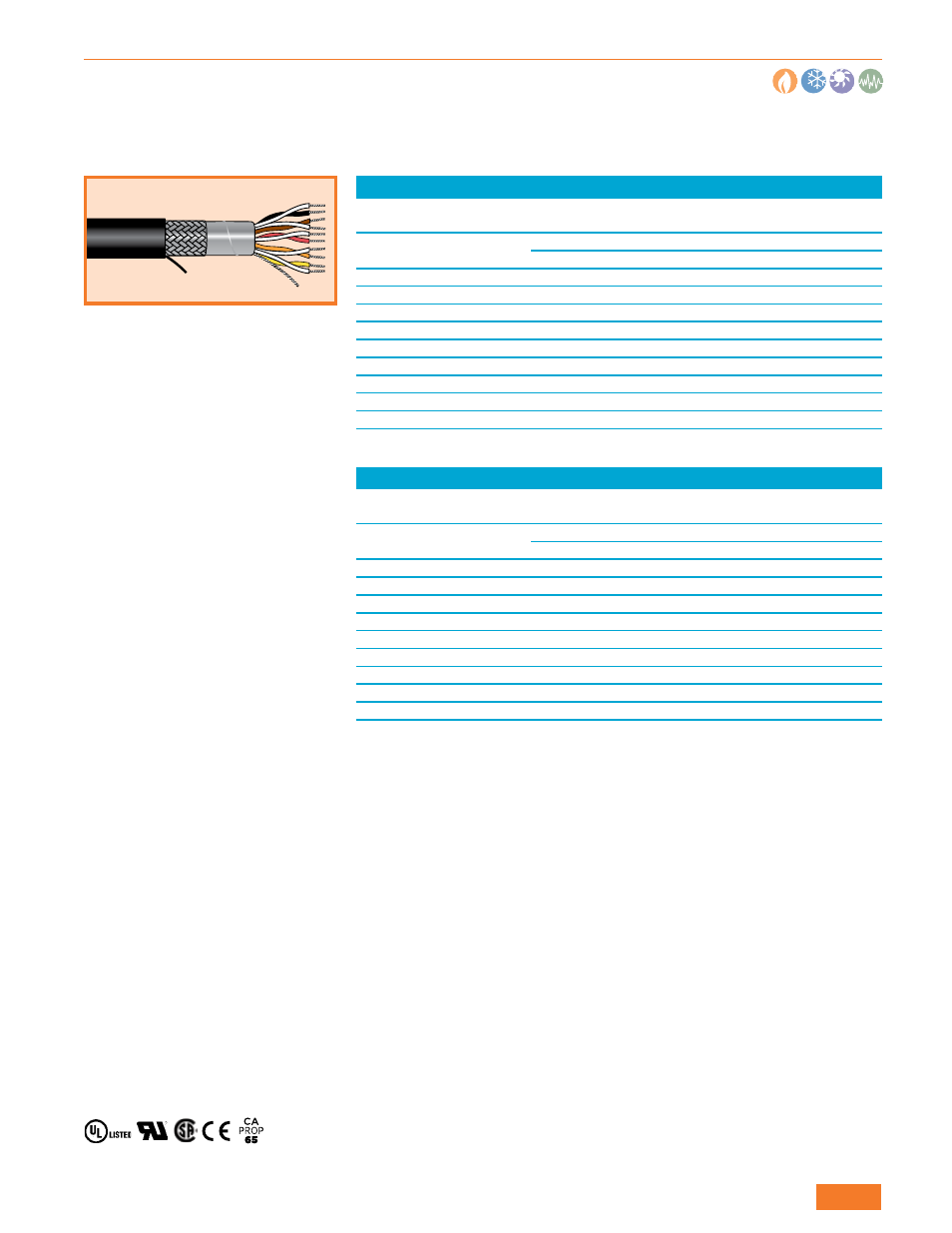

Xtra-Guard® 4
Advanced Temperature and Chemical Performance
300 V Supra-Shield® Foil/Braid, Multipair
UL AWM 20237
UL PLTC
CSA AWM I/II A/B FT1
MSHA P-07-KA070017-MSHA
NEC Class 1, Div 2 (22 AWG)
Operating Temperature
• –50°C to +125°C
Conductor Color Coding
• Chart B (page 516)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• TPE insulation
• TPE jacket
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum
foil with 25% overlap min.
Tinned copper drain wire sized
the same as conductors
Tinned copper braid, 70%
coverage min.
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-600: highly flexible,
cross-linked elastomer
• FIT-400: temperature/chemical
resistant FEP
20 AWG (0.56 mm
2
)
Stranding: 7/28 (7 x 0.32
mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
45291
1
0.262
6.65
0.045
1.14
45292
2
0.352
8.94
0.045
1.14
45293
3
0.370
9.40
0.045
1.14
45294
4
0.420
10.67
0.055
1.40
45295
5
0.454
11.53
0.055
1.40
45296
6
0.489
12.42
0.055
1.40
45299
9
0.561
14.25
0.055
1.40
45299/11
11
0.621
15.77
0.065
1.65
45299/15
15
0.698
17.73
0.065
1.65
18 AWG (0.81 mm
2
)
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Pairs
Nominal Diameter
Jacket thickness
Inch
mm
Inch
mm
45131
1
0.280
7.11
0.045
1.14
45132
2
0.381
9.68
0.045
1.14
45133
3
0.422
10.72
0.055
1.40
45134
4
0.456
11.58
0.055
1.40
45135
5
0.494
12.55
0.055
1.40
45136
6
0.534
13.56
0.055
1.40
45139
9
0.635
16.13
0.065
1.65
45139/11
11
0.686
17.42
0.065
1.65
45139/15
15
0.766
19.46
0.065
1.65
