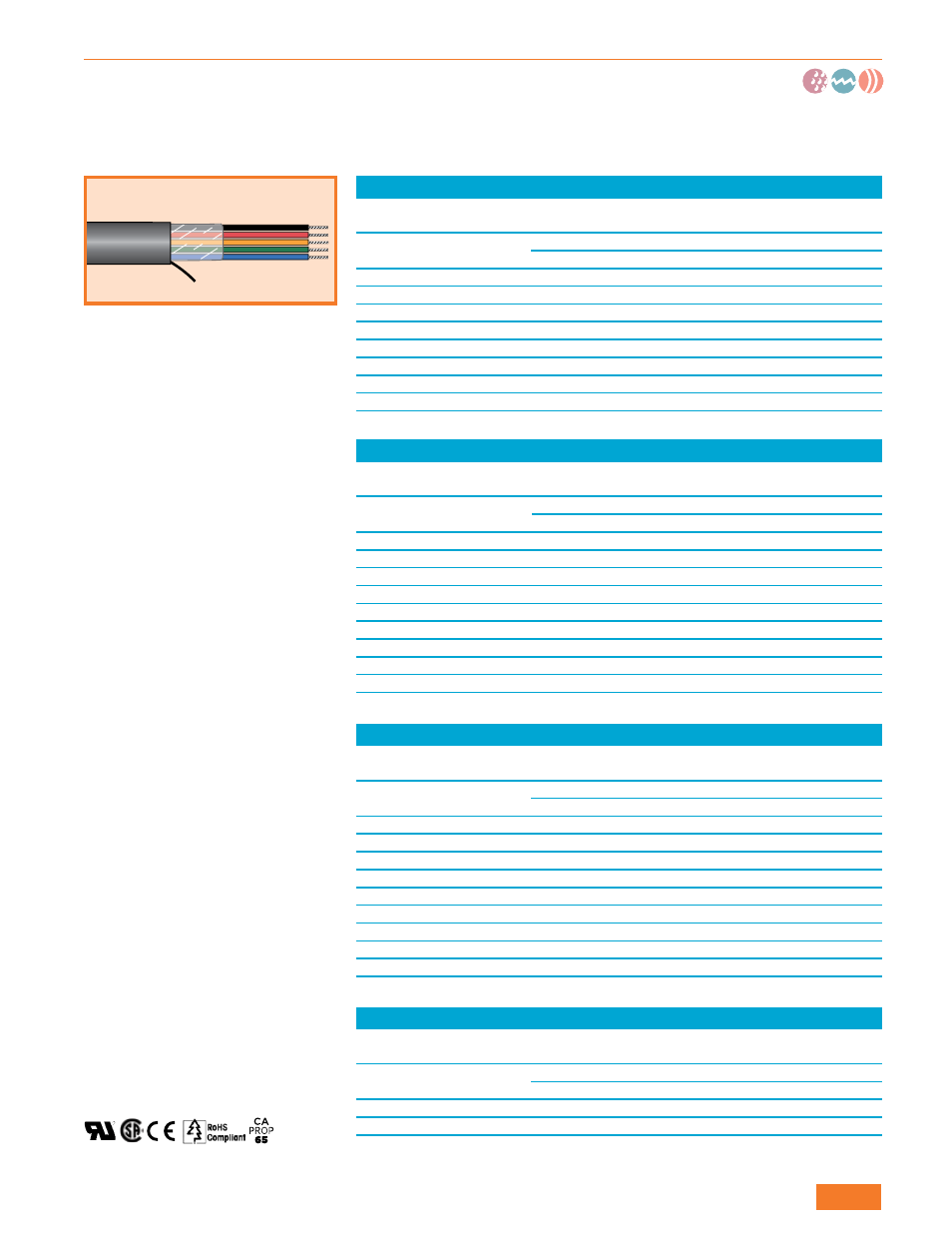

Xtra-Guard® Continuous Flex Control
C-Track or High Flexing Applications Up to 14 Million Flex Life Cycles
600 V Unshielded, Multiconductor
UL AWM 2587
CSA AWM I/II A/B FT1
CE
Operating Temperature
• -5°C to +90°C (flexing)
• -40°C to +90°C (stationary)
Conductor Color Coding
• Numbered red conductors
• 1 yellow/green ground
conductor
• Jacket color: black
Materials
• Finely stranded tinned copper
conductors
• Lubricated PVC insulation
• Oil-resistant PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-FLEX: Highly flexible,
cross-linked silicone rubber
• FIT-650: Chemical/
temperature resistant cross-
linked fluoroelastomer
20 AWG ( 0.51 mm
2
)
Stranding: 63/38 (63 x 0.10 mm)
Insulation thickness: 0.022 (0.56 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
85003
3
0.272
6.91
0.035
0.89
85004
4
0.297
7.54
0.035
0.89
85005
5
0.323
8.20
0.035
0.89
85007
7
0.388
9.86
0.040
1.02
85012
12
0.460
11.68
0.045
1.14
85018
18
0.548
13.92
0.050
1.27
85025
25
0.691
17.55
0.065
1.65
85034
34
0.746
18.95
0.065
1.65
18 AWG (0.85 mm
2
)
Stranding: 105/38 (105 x 0.10 mm)
Insulation thickness: 0.022 (0.56 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
85803
3
0.298
7.57
0.035
0.89
85804
4
0.326
8.28
0.035
0.89
85805
5
0.355
9.02
0.035
0.89
85807
7
0.438
11.13
0.045
1.14
85812
12
0.520
13.21
0.050
1.27
85815
15
0.577
14.66
0.050
1.27
85818
18
0.608
15.44
0.050
1.27
85825
25
0.767
19.48
0.065
1.65
85834
34
0.830
21.08
0.065
1.65
16 AWG (1.36mm
2
)
Stranding: 168/38 (168 x 0.10 mm)
Insulation thickness: 0.022 (0.56 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
85603
3
0.331
8.41
0.035
0.89
85604
4
0.362
9.19
0.035
0.89
85605
5
0.396
10.06
0.035
0.89
85607
7
0.478
12.14
0.040
1.02
85612
12
0.573
14.55
0.045
1.14
85618
18
0.674
17.12
0.045
1.14
85625
25
0.862
21.89
0.065
1.65
85634
34
0.936
23.77
0.065
1.65
85650
50
1.161
29.49
0.085
2.16
14 AWG (2.16mm
2
)
Stranding: 266/38 (266 x 0.10 mm)
Insulation thickness: 0.022” (0.56 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
85404
4
0.424
10.77
0.050
1.27
85407
7
0.582
14.78
0.070
1.78
