69
Cable > Xtra-Guard > Xtra-Guard 2 > Multipair > Supra-Shield Foil/Braid > 300 V

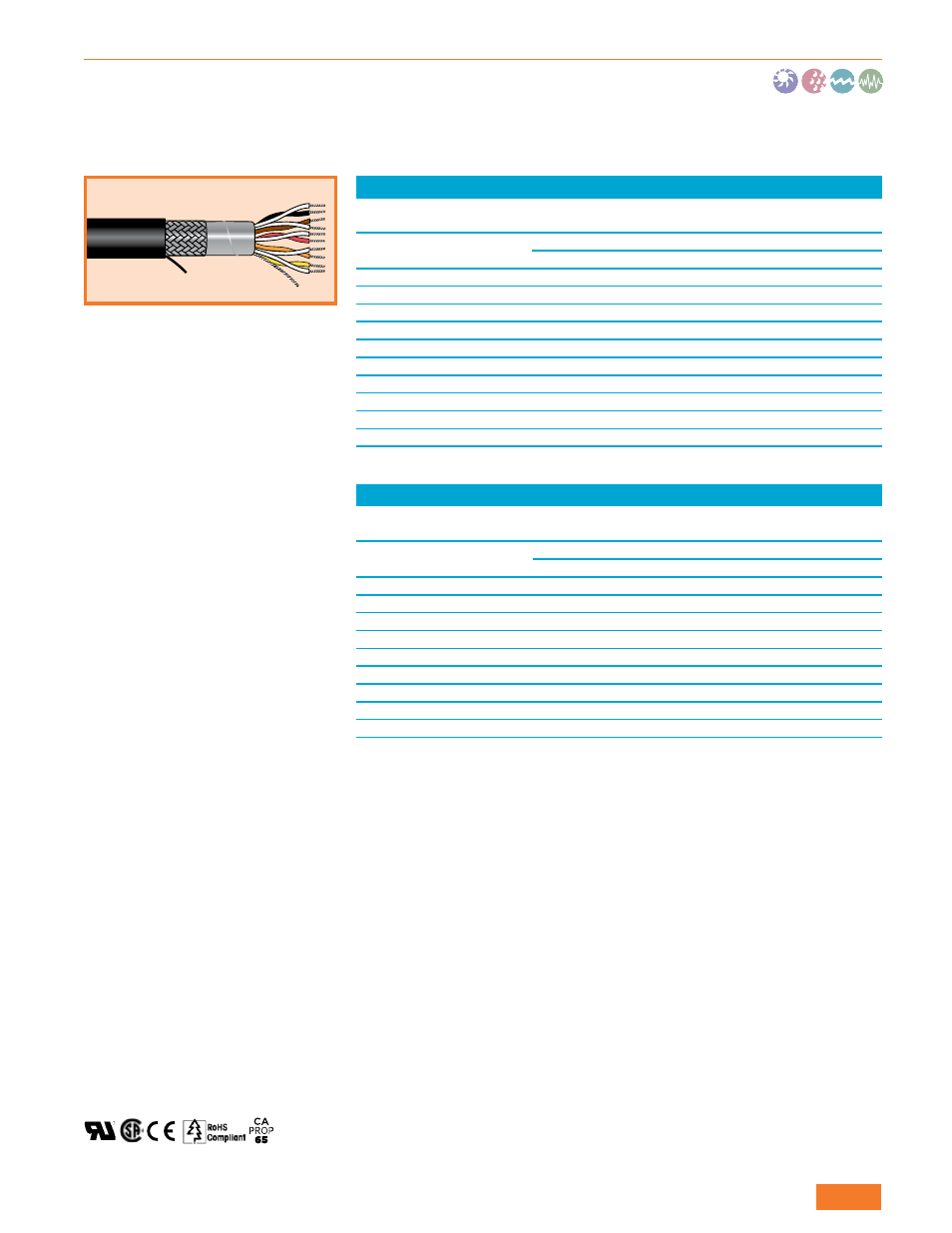

Xtra-Guard® 2
Oil and Abrasion Resistant
300 V Supra-Shield® Foil/Braid, Multipair
UL AWM 20668 VW-1
CSA AWM I/II A/B FT1
Operating Temperature
• –30°C to +90°C
Conductor Color Coding
• 24, 22 AWG: Chart B (page 516)
• 20, 18 AWG: Chart A (page 516)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Specially formulated
polyurethane jacket
• UV resistant
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum
foil with 25% overlap min.
Tinned copper drain wire sized
the same as conductors
Tinned copper braid, 70%
coverage min.
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-750: Bonding adhesive lined,
cross-linked polyolefin
24 AWG (0.23 mm
2
)
Stranding: 7/32 (7 x 0.20 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
25271
1
0.184
4.67
0.032
0.81
25272
2
0.240
6.10
0.032
0.81
25273
3
0.252
6.40
0.032
0.81
25274
4
0.271
6.88
0.032
0.81
25275
5
0.292
7.42
0.032
0.81
25276
6
0.314
7.98
0.032
0.81
25279
9
0.360
9.14
0.032
0.81
25279/11
11
0.385
9.78
0.032
0.81
25279/15
15
0.429
10.90
0.032
0.81
25279/19
19
0.457
11.61
0.032
0.81
22 AWG (0.35 mm
2
)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
25121
1
0.196
4.98
0.032
0.81
25122
2
0.260
6.60
0.032
0.81
25123
3
0.273
6.93
0.032
0.81
25124
4
0.295
7.49
0.032
0.81
25125
5
0.319
8.10
0.032
0.81
25126
6
0.344
8.74
0.032
0.81
25129
9
0.396
10.06
0.032
0.81
25129/11
11
0.424
10.77
0.032
0.81
25129/15
15
0.475
12.07
0.032
0.81
