81
Cable > Xtra-Guard > Xtra-Guard 4 > Multiconductor > Unshielded > 300 V

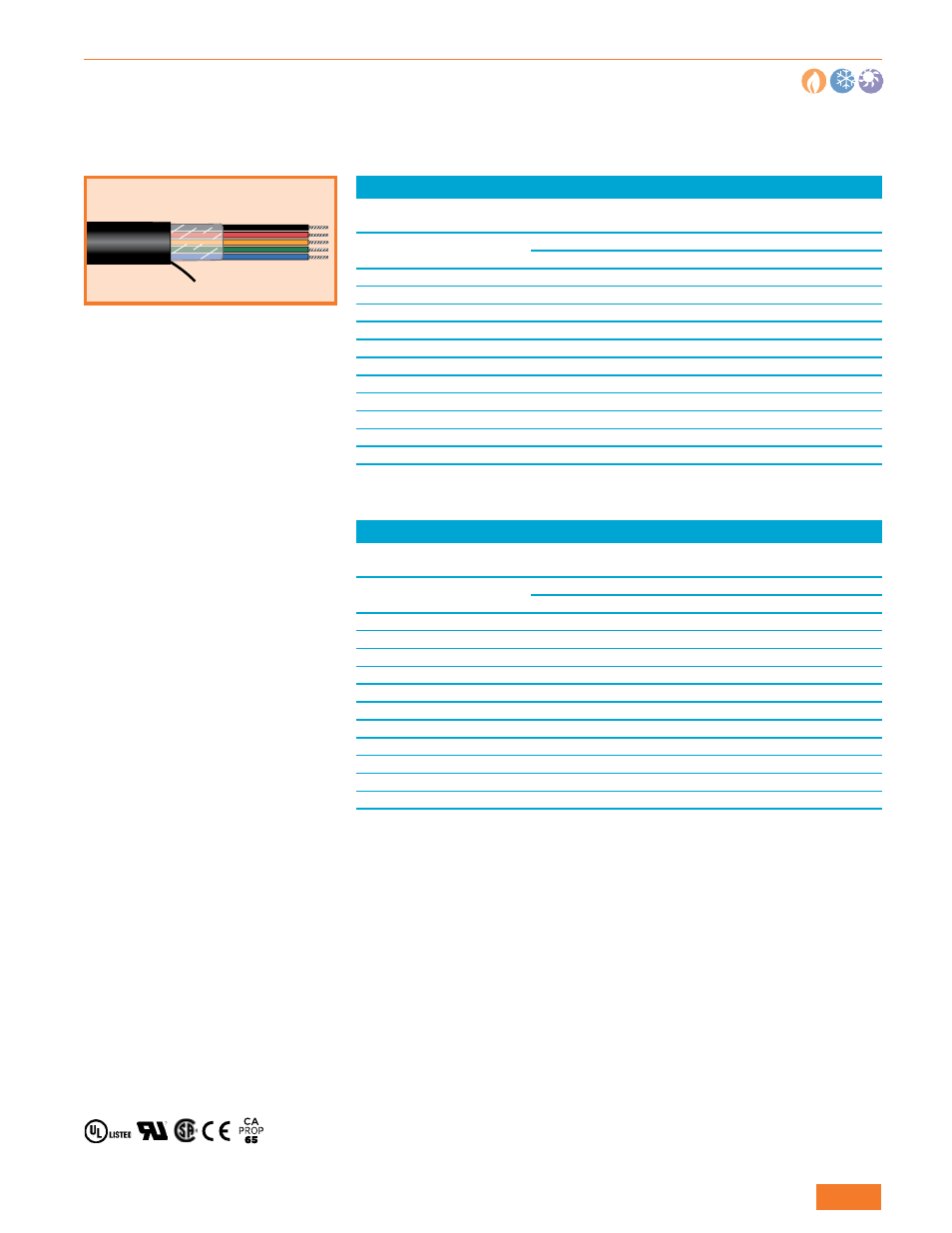

Xtra-Guard® 4
Advanced Temperature and Chemical Performance
300 V Unshielded, Multiconductor
UL AWM 20237
UL PLTC
CSA AWM I/II A/B FT1
MSHA P-07-KA070017-MSHA
NEC Class 1, Div 2
Operating Temperature
• –50°C to +125°C
Conductor Color Coding
• 24, 22 AWG: Chart E (page 520)
• 20, 18, 16 AWG: Chart D
(page 519)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• TPE insulation
• TPE jacket
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-600: highly flexible,
cross-linked elastomer
• FIT-400: temperature/chemical
resistant FEP
18 AWG (0.81 mm
2
)
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
45062
2
0.252
6.40
0.045
1.14
45062/1*
2
0.252
6.40
0.045
1.14
45063
3
0.264
6.71
0.045
1.14
45063/1*
3
0.264
6.71
0.045
1.14
45064
4
0.285
7.24
0.045
1.14
45066
6
0.333
8.46
0.045
1.14
45068
8
0.358
9.09
0.045
1.14
45070
10
0.430
10.92
0.055
1.40
45070/15
15
0.479
12.17
0.055
1.40
45070/20
20
0.530
13.46
0.055
1.40
45070/25
25
0.588
14.94
0.055
1.40
16 AWG (1.23 mm
2
)
Stranding: 19/0.0117 (19 x 0.29 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
45072
2
0.276
7.01
0.045
1.14
45072/1*
2
0.276
7.01
0.045
1.14
45073
3
0.290
7.37
0.045
1.14
45073/1*
3
0.290
7.37
0.045
1.14
45074
4
0.314
7.98
0.045
1.14
45076
6
0.369
9.37
0.045
1.14
45078
8
0.418
10.62
0.055
1.40
45080
10
0.478
12.14
0.055
1.40
45080/15
15
0.534
13.56
0.055
1.40
45080/20
20
0.593
15.06
0.055
1.40
45080/25
25
0.680
17.27
0.055
1.40
*Conductors color-coded per international standards: brown, blue, green/yellow.
*Conductors color-coded per international standards: brown, blue, green/yellow.
