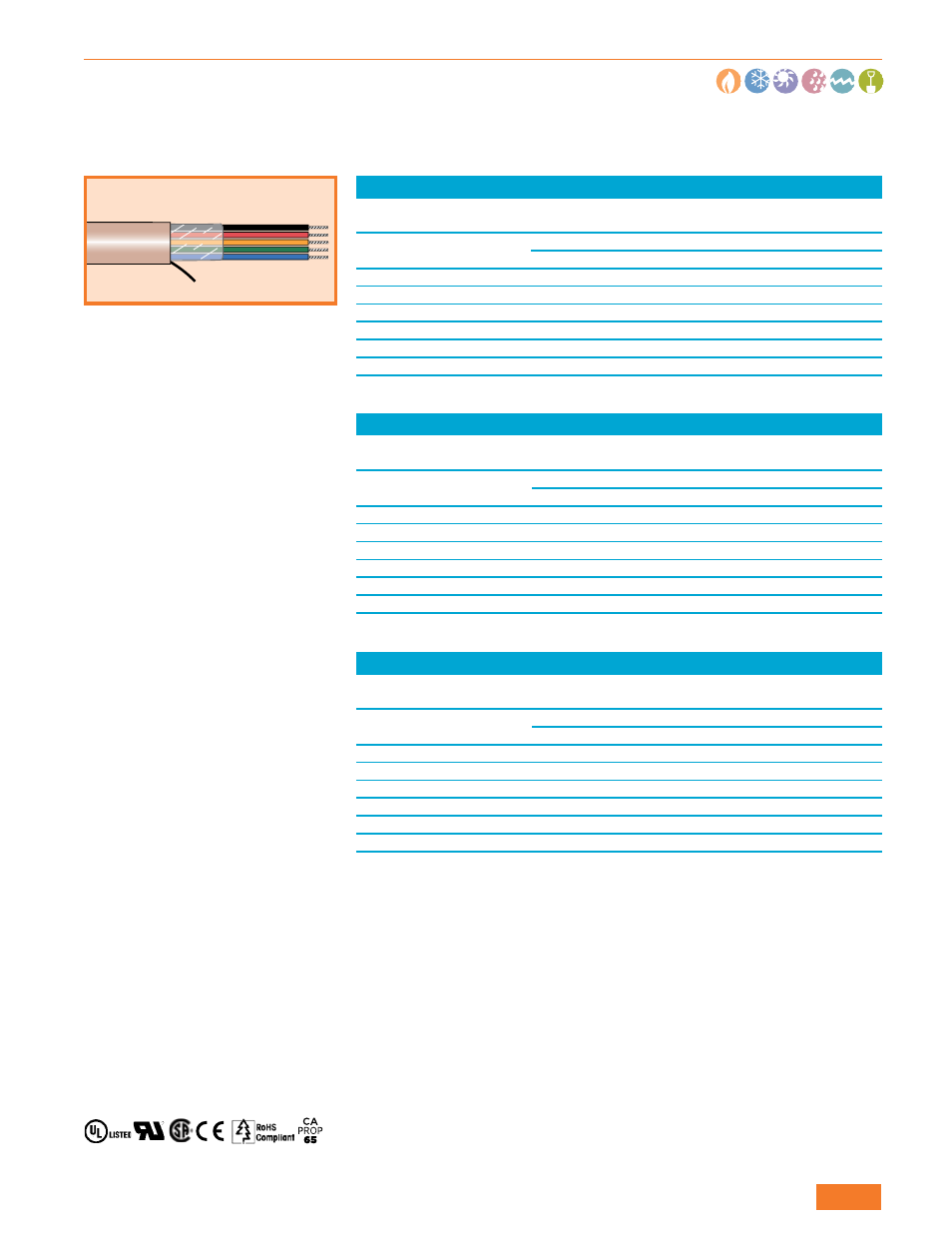

Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
95
Cable > Xtra-Guard > Xtra-Guard 5 > Multiconductor > Unshielded > 300 V
Xtra-Guard® 5
Maximum Temperature and Chemical Performance
300 V Unshielded, Multiconductor
UL AWM 20229
UL CMP
CSA CMP FT6
Operating Temperature
• –80°C to +200°C
• –80°C to +150°C (AWM, CMP)
Conductor Color Coding
• Chart E (page 520)
• Nine jacket tints (tan standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• FEP insulation
• FEP jacket
• Aramid fiber ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-650: Chemical/temperature
resistant flexible fluoroelastomer
• FIT-400: Temperature/chemical
resistant FEP
24 AWG (0.23 mm 2 )
Stranding: 7/32 (7 x 0.20 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Conductors
Nominal Diameter Jacket Thickness
Inch mm Inch mm
55012 2 0.148 3.76 0.027 0.69
55013 3 0.155 3.94 0.027 0.69
55014 4 0.166 4.22 0.027 0.69
55016 6 0.193 4.90 0.027 0.69
55019 9 0.220 5.59 0.027 0.69
55020/12 12 0.243 6.17 0.027 0.69
22 AWG (0.35 mm 2 )
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Conductors
Nominal Diameter Jacket Thickness
Inch mm Inch mm
55002 2 0.160 4.06 0.027 0.69
55003 3 0.168 4.27 0.027 0.69
55004 4 0.181 4.60 0.027 0.69
55006 6 0.211 5.36 0.027 0.69
55009 9 0.242 6.15 0.027 0.69
55010/12 12 0.268 6.81 0.027 0.69
20 AWG (0.56 mm 2 )
Stranding: 7/28 (7 x 0.32 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Conductors
Nominal Diameter Jacket Thickness
Inch mm Inch mm
55052 2 0.176 4.47 0.027 0.69
55053 3 0.185 4.70 0.027 0.69
55054 4 0.200 5.08 0.027 0.69
55056 6 0.235 5.97 0.027 0.69
55059 9 0.271 6.88 0.027 0.69
55060/12 12 0.301 7.65 0.027 0.69
