Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
103
Cable > Xtra-Guard > Xtra-Guard 5 > Multipair > Supra-Shield Foil/Braid > 300 V

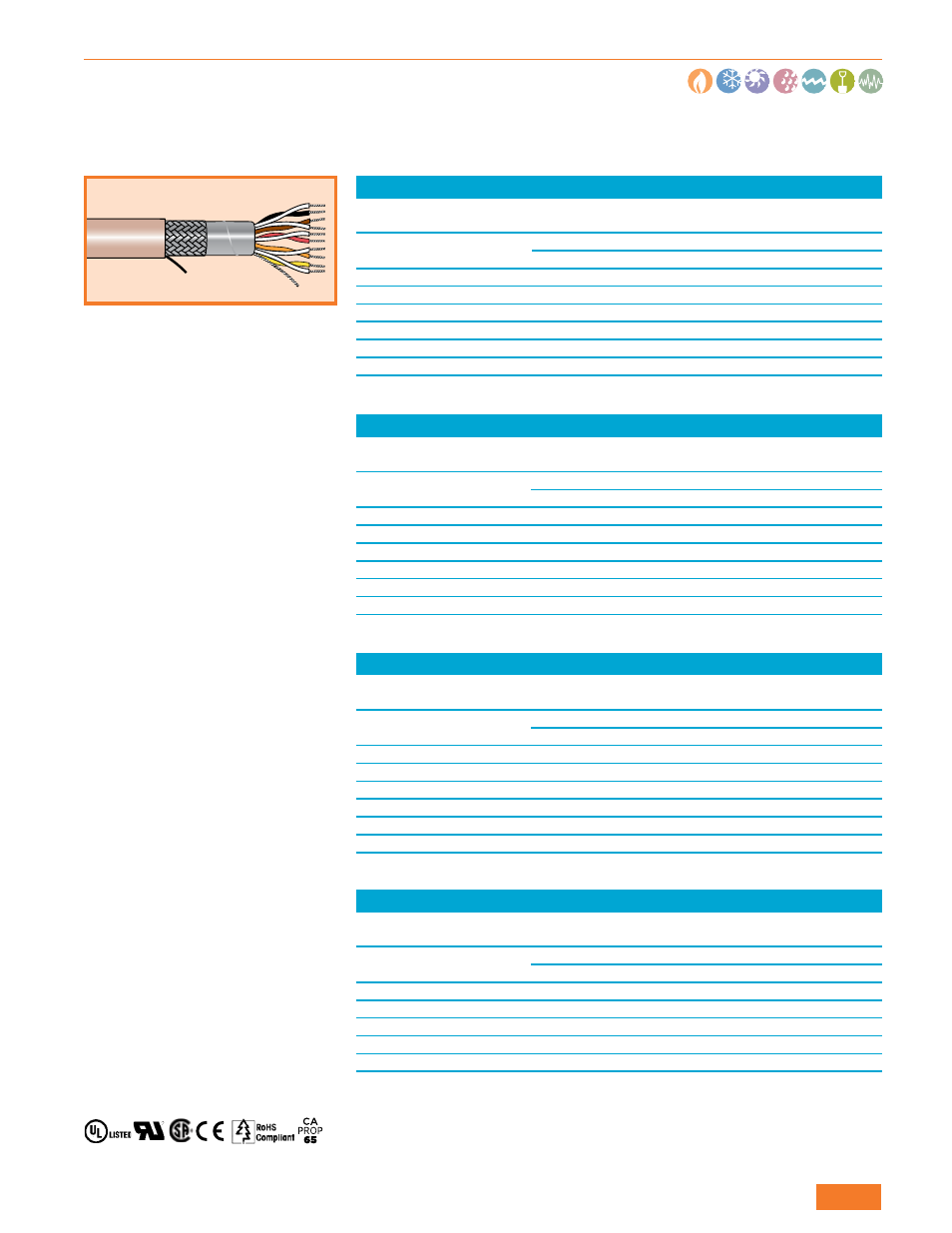

Xtra-Guard® 5
Maximum Temperature and Chemical Performance
300 V Supra-Shield® Foil/Braid, Multipair
UL AWM 20229
UL CMP
CSA CMP FT6
Operating Temperature
• –80°C to +200°C
• –80°C to +150°C (AWM, CMP)
Conductor Color Coding
• Chart A (page 516)
• Nine jacket tints (tan standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• FEP insulation
• FEP jacket
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum
foil with 25% overlap min.
Tinned copper drain wire sized
the same as conductors
Tinned copper braid, 70%
coverage min.
• Aramid fiber ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-650: Chemical/temperature
resistant flexible fluoroelastomer
• FIT-400: Temperature/chemical
resistant FEP
24 AWG (0.23 mm
2
)
Stranding: 7/32 (7 x 0.20 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
55271
1
0.176
4.47
0.027
0.69
55272
2
0.232
5.89
0.027
0.69
55273
3
0.244
6.20
0.027
0.69
55276
6
0.306
7.77
0.027
0.69
55279
9
0.351
8.92
0.027
0.69
55279/12
12
0.388
9.86
0.027
0.69
22 AWG (0.35 mm
2
)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
55121
1
0.188
4.78
0.027
0.69
55122
2
0.252
6.40
0.027
0.69
55123
3
0.265
6.73
0.027
0.69
55126
6
0.335
8.51
0.027
0.69
55129
9
0.386
9.80
0.027
0.69
55129/12
12
0.429
10.90
0.027
0.69
20 AWG (0.56 mm
2
)
Stranding: 7/28 (7 x 0.32
mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
55291
1
0.204
5.18
0.027
0.69
55292
2
0.278
7.06
0.027
0.69
55293
3
0.293
7.44
0.027
0.69
55296
6
0.375
9.53
0.027
0.69
55299
9
0.434
11.02
0.027
0.69
55299/12
12
0.483
12.27
0.027
0.69
18 AWG (0.90 mm
2
)
Stranding: 7/26 (7 x 0.40 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
55131
1
0.224
5.69
0.027
0.69
55132
2
0.311
7.90
0.027
0.69
55133
3
0.328
8.33
0.027
0.69
55136
6
0.424
10.77
0.027
0.69
55139
9
0.504
12.80
0.032
0.81
