Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
35
Cable > Xtra-Guard > Xtra-Guard 1 > Multiconductor > Unshielded > 300 V

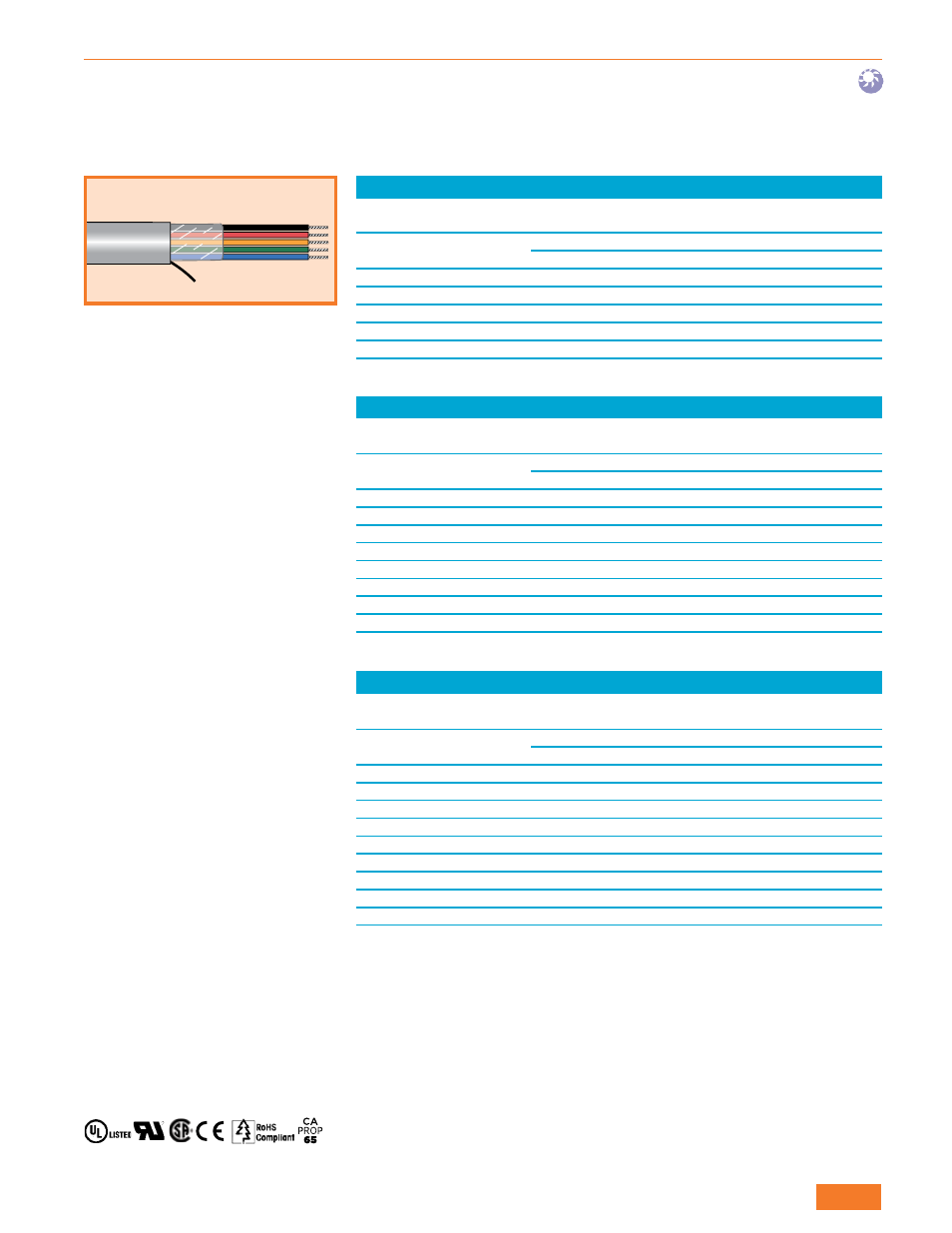

Xtra-Guard® 1
High Performance
300 V Unshielded, Multiconductor
UL CM
UL AWM 2343 VW-1
CSA CMG FT4
Operating Temperature
• –30°C to +80°C (AWM)
• –30°C to +105°C (CM)
Conductor Color Coding
• Chart E (page 520)
• Jacket Colors
• Put-ups: slate
• Bulk: nine colors available
(page 31, minimums
may apply)
Materials
• Stranded tinned
copper conductors
• Premium PVC insulation
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-221: General-purpose,
cross-linked polyolefin (indoor)
• FIT-321: Medium-wall,
adhesive-lined, cross-linked
polyolefin (outdoor)
24 AWG (0.23 mm
2
)
Stranding: 7/32 (7 x 0.20 mm)
Insulation thickness: 0.010 (0.25 mm)
Part Number
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
5201C
7
0.263
6.68
0.063
1.60
5202C
12
0.313
7.95
0.063
1.60
5203C
15
0.333
8.46
0.063
1.60
5204C
19
0.350
8.89
0.063
1.60
5206C
37
0.438
11.13
0.063
1.60
22 AWG (0.35 mm
2
)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part Number
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
5210/2C
2
0.230
5.84
0.063
1.60
5211C
7
0.281
7.14
0.063
1.60
5212C
12
0.338
8.59
0.063
1.60
5213C
15
0.361
9.17
0.063
1.60
5214C
19
0.380
9.65
0.063
1.60
5214/25C
25
0.430
10.92
0.063
1.60
5215C
27
0.438
11.13
0.063
1.60
5216C
37
0.480
12.19
0.063
1.60
20 AWG (0.56 mm
2
)
Stranding: 7/28 (7 x 0.32 mm)
Insulation thickness: 0.010 (0.25 mm)
Part Number
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
5220/2C
2
0.246
6.25
0.063
1.60
5220C
5
0.288
7.32
0.063
1.60
5221C
7
0.305
7.75
0.063
1.60
5222C
12
0.371
9.42
0.063
1.60
5223C
15
0.398
10.11
0.063
1.60
5224C
19
0.420
10.67
0.063
1.60
5224/25C
25
0.478
12.14
0.063
1.60
5225C
27
0.487
12.37
0.063
1.60
5226C
37
0.536
13.61
0.063
1.60
