Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
84
Cable > Xtra-Guard > Xtra-Guard 4 > Multiconductor > Foil Shielded > 300 V

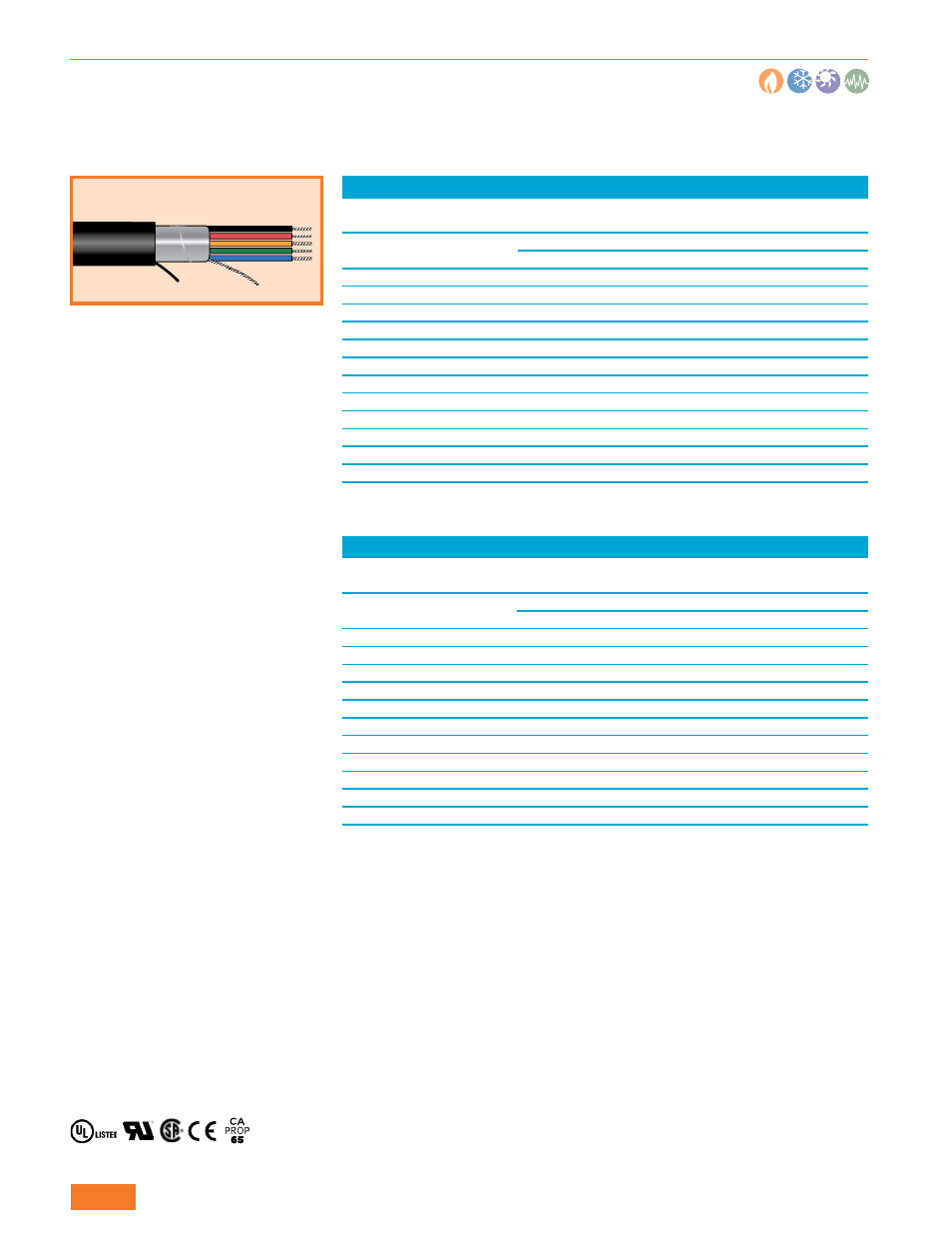

Xtra-Guard® 4
Advanced Temperature and Chemical Performance
300 V Foil Shielded, Multiconductor
UL AWM 20237
UL PLTC
CSA AWM I/II A/B FT1
MSHA P-07-KA070017-MSHA
NEC Class 1, Div 2
Operating Temperature
• –50°C to +125°C
Conductor Color Coding
• 24, 22 AWG: Chart E (page 520)
• 20, 18, 16 AWG: Chart D
(page 519)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• TPE insulation
• TPE jacket
• Aluminum/polyester foil shield,
with 25% overlap and foil
facing inward
• Tinned copper drain wire sized
the same as cable conductors
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-600: highly flexible,
cross-linked elastomer
• FIT-400: temperature/chemical
resistant FEP
18 AWG (0.81 mm
2
)
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
45382
2
0.256
6.50
0.045
1.14
45382/1*
2
0.256
6.50
0.045
1.14
45383
3
0.268
6.81
0.045
1.14
45383/1*
3
0.268
6.81
0.045
1.14
45384
4
0.289
7.34
0.045
1.14
45386
6
0.337
8.56
0.045
1.14
45388
8
0.362
9.19
0.045
1.14
45390
10
0.434
11.02
0.055
1.40
45390/15
15
0.483
12.27
0.055
1.40
45390/20
20
0.534
13.56
0.055
1.40
45390/25
25
0.592
15.04
0.055
1.40
45390/30
30
0.645
16.38
0.065
1.65
16 AWG (1.23 mm
2
)
Stranding: 19/0.0117 (19 x 0.29 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
45362
2
0.280
7.11
0.045
1.14
45362/1*
2
0.280
7.11
0.045
1.14
45363
3
0.294
7.47
0.045
1.14
45363/1*
3
0.294
7.47
0.045
1.14
45364
4
0.318
8.08
0.045
1.14
45366
6
0.373
9.47
0.045
1.14
45368
8
0.422
10.72
0.045
1.14
45370
10
0.482
12.24
0.055
1.40
45370/15
15
0.538
13.67
0.055
1.40
45370/20
20
0.597
15.16
0.055
1.40
45370/25
25
0.684
17.37
0.065
1.65
*Conductors color-coded per international standards: brown, blue, green/yellow.
*Conductors color-coded per international standards: brown, blue, green/yellow.
