Cable > Xtra-Guard > Xtra-Guard Flex > Multiconductor > Foil/Spiral Shield > 300 V

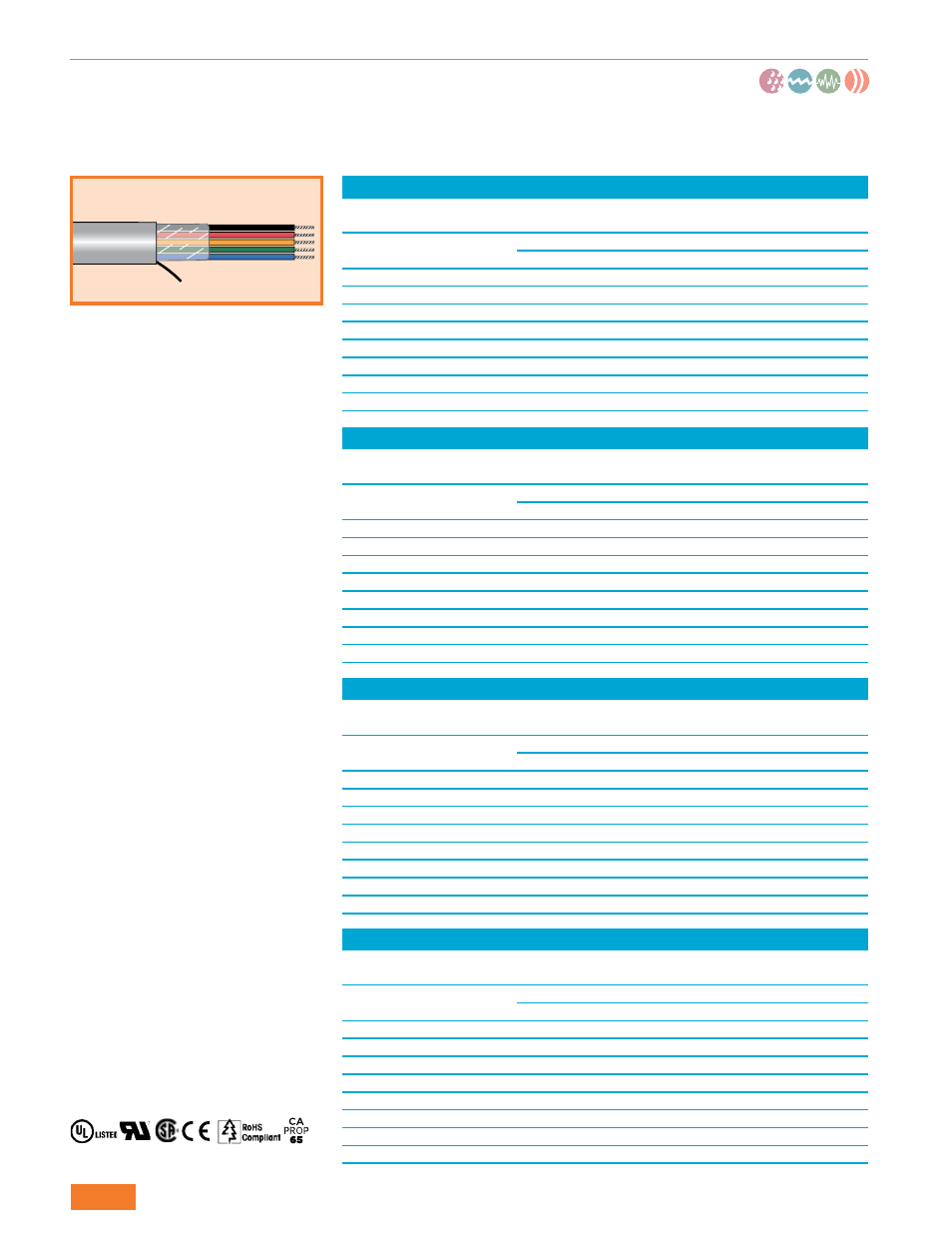

Xtra-Guard® Continuous Flex Data
C-Track or High Flexing Applications Up to 6 Million Flex Life Cycles
300 V Foil/Spiral Shield, Multiconductor
UL CM
UL AWM 2661
CSA AWM I/II A/B FT4
CSA CMG
CE
Operating Temperature
• +5°C to 105°C (flexing)
• -10°C to 105°C (stationary)
Conductor Color Coding
• Chart D (page 519)
• Jacket color: slate
Materials
• Finely stranded tinned copper
conductors
• Lubricated semi-rigid PVC
insulation
• Foil +spiral shield
Aluminum/polyester foil shield,
25% overlap min.
Foil facing outward
Tinned copper spiral shield,
90% coverage
• Oil-resistant PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-FLEX: Highly flexible,
cross-linked silicone rubber
• FIT-650: Chemical/
temperature resistant cross-
linked fluoroelastomer
28 AWG (0.09 mm
2
)
Stranding: 7/36 (7 x 0.13 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
86002CY
2
0.174
4.42
0.040
1.02
86003CY
3
0.180
4.57
0.040
1.02
86004CY
4
0.190
4.83
0.040
1.02
86005CY
5
0.200
5.08
0.040
1.02
86007CY
7
0.223
5.66
0.040
1.02
86012CY
12
0.283
7.19
0.040
1.02
86018CY
18
0.282
7.16
0.040
1.02
86025CY
25
0.329
8.36
0.040
1.02
26 AWG (0.14 mm
2
)
Stranding: 7/34 (7 x 0.16 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
86102CY
2
0.182
4.62
0.040
1.02
86103CY
3
0.188
4.78
0.040
1.02
86104CY
4
0.199
5.05
0.040
1.02
86105CY
5
0.211
5.36
0.040
1.02
86107CY
7
0.237
6.02
0.040
1.02
86112CY
12
0.303
7.70
0.040
1.02
86118CY
18
0.302
7.67
0.040
1.02
86125CY
25
0.355
9.02
0.040
1.02
24 AWG (0.20 mm
2
)
Stranding: 10/34 (10 x 0.16 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
86202CY
2
0.192
4.88
0.040
1.02
86203CY
3
0.199
5.05
0.040
1.02
86204CY
4
0.211
5.36
0.040
1.02
86205CY
5
0.225
5.72
0.040
1.02
86207CY
7
0.253
6.43
0.040
1.02
86212CY
12
0.327
8.31
0.040
1.02
86218CY
18
0.327
8.31
0.040
1.02
86225CY
25
0.396
10.06
0.045
1.14
22 AWG (0.38 mm2)
Stranding: 19/34 (19 x 0.16 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
86302CY
2
0.208
5.28
0.040
1.02
86303CY
3
0.217
5.51
0.040
1.02
86304CY
4
0.231
5.87
0.040
1.02
86305CY
5
0.247
6.27
0.040
1.02
86307CY
7
0.280
7.11
0.040
1.02
86312CY
12
0.367
9.32
0.040
1.02
86318CY
18
0.367
9.32
0.040
1.02
86325CY
25
0.446
11.33
0.045
1.14
