101
Cable > Xtra-Guard > Xtra-Guard 5 > Multipair > Unshielded > 300 V

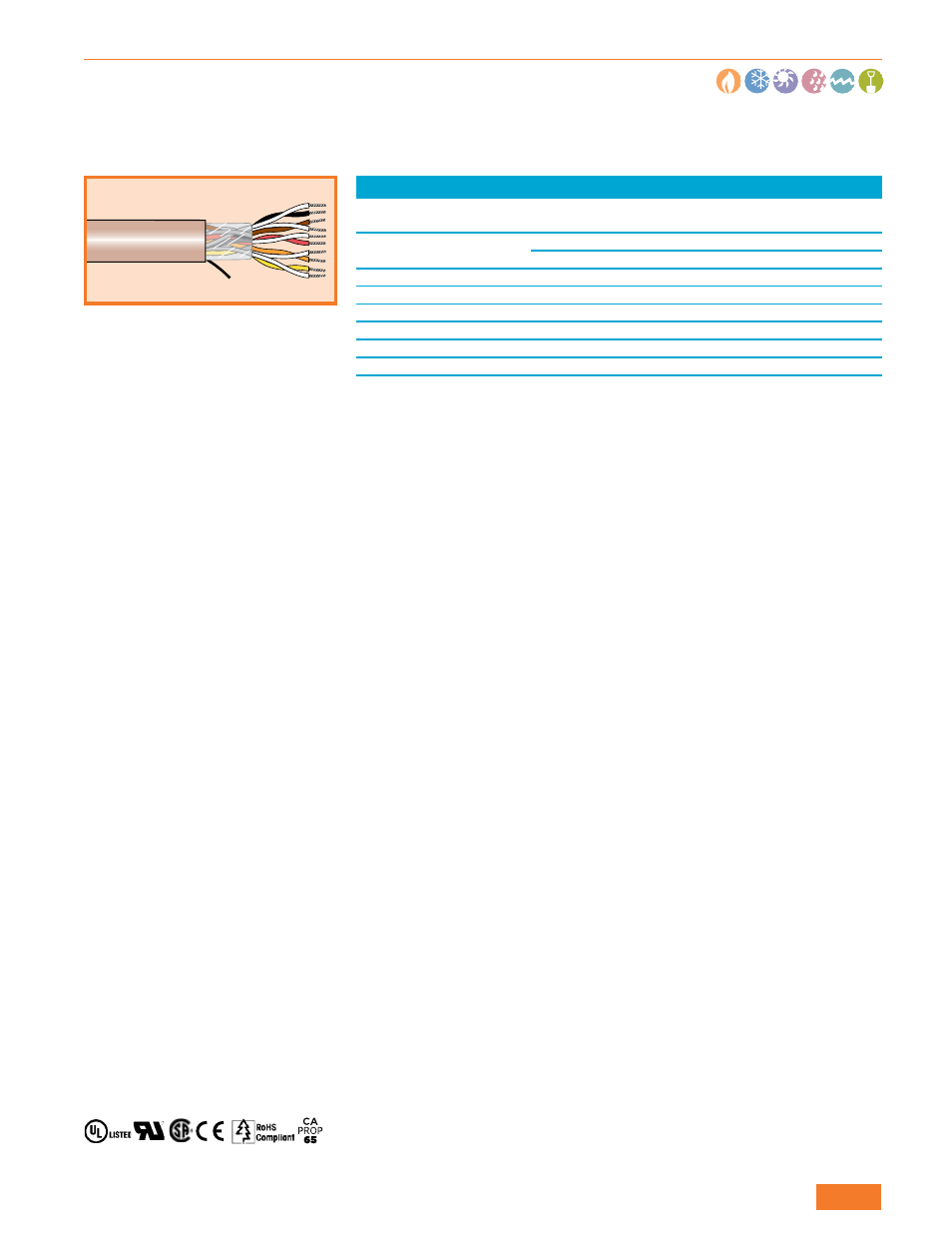

Xtra-Guard® 5
Maximum Temperature and Chemical Performance
300 V Unshielded, Multipair
UL AWM 20229
UL CMP
CSA CMP FT6
Operating Temperature
• –80°C to +200°C
• –80°C to +150°C (AWM, CMP)
Conductor Color Coding
• Chart A (page 516)
• Nine jacket tints (tan standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• FEP insulation
• FEP jacket
• Aramid fiber ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-650: Chemical/temperature
resistant flexible fluoroelastomer
• FIT-400: Temperature/chemical
resistant FEP
22 AWG (0.35 mm 2 )
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Pairs
Nominal Diameter Jacket Thickness
Inch mm Inch mm
55021 1 0.160 4.06 0.027 0.69
55022 2 0.224 5.69 0.027 0.69
55023 3 0.237 6.02 0.027 0.69
55026 6 0.307 7.80 0.027 0.69
55029 9 0.358 9.09 0.027 0.69
55029/12 12 0.401 10.19 0.027 0.69
