98
Cable > Xtra-Guard > Xtra-Guard 5 > Multiconductor > Foil Shielded > 300 V

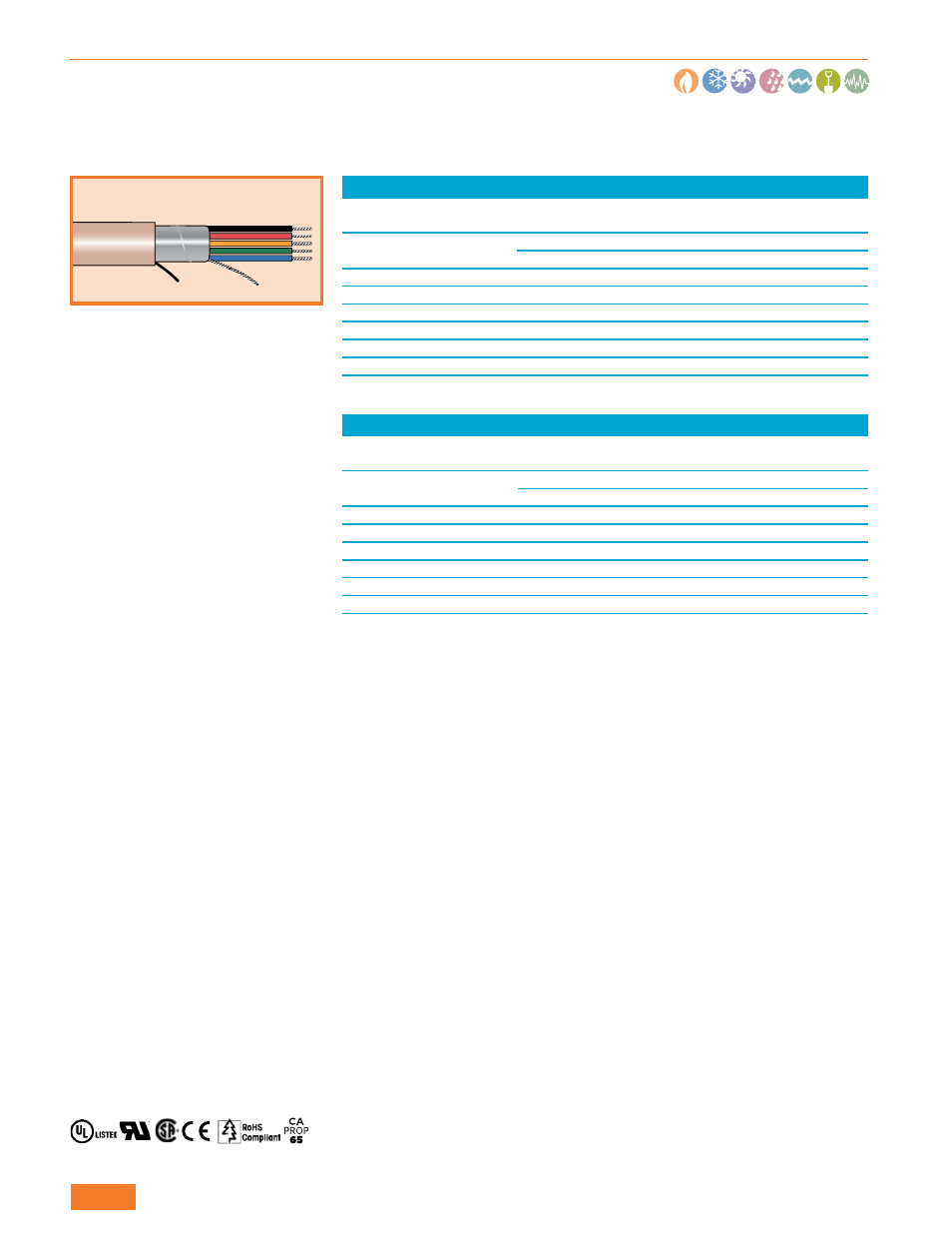

Xtra-Guard® 5
Maximum Temperature and Chemical Performance
300 V Foil Shielded, Multiconductor
UL AWM 20229
UL CMP
CSA CMP FT6
Operating Temperature
• –80°C to +200°C
• –80°C to +150°C (AWM, CMP)
Conductor Color Coding
• Chart E (page 520)
• Nine jacket tints (tan standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• FEP insulation
• FEP jacket
• Aluminum/polyester foil shield,
with 25% overlap and foil
facing inward
• Tinned copper drain wire sized
the same as cable conductors
• Aramid fiber ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-650: Chemical/temperature
resistant flexible fluoroelastomer
• FIT-400: Temperature/chemical
resistant FEP
18 AWG (0.90 mm 2 )
Stranding: 7/26 (7 x 0.40 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Conductors
Nominal Diameter Jacket Thickness
Inch mm Inch mm
55382 2 0.202 5.13 0.027 0.69
55383 3 0.213 5.41 0.027 0.69
55384 4 0.231 5.87 0.027 0.69
55386 6 0.271 6.88 0.027 0.69
55389 9 0.313 7.95 0.027 0.69
55390/12 12 0.349 8.86 0.027 0.69
16 AWG (1.23 mm 2 )
Stranding: 19/0.0117 (19 x 0.29 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No. Conductors
Nominal Diameter Jacket Thickness
Inch mm Inch mm
55362 2 0.224 5.69 0.027 0.69
55363 3 0.236 5.99 0.027 0.69
55364 4 0.257 6.53 0.027 0.69
55366 6 0.304 7.72 0.027 0.69
55369 9 0.353 8.97 0.027 0.69
55370/12 12 0.394 10.01 0.027 0.69
