Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
78
Cable > Xtra-Guard > Xtra-Guard 3 > Multipair > Supra-Shield Foil/Braid > 300 V

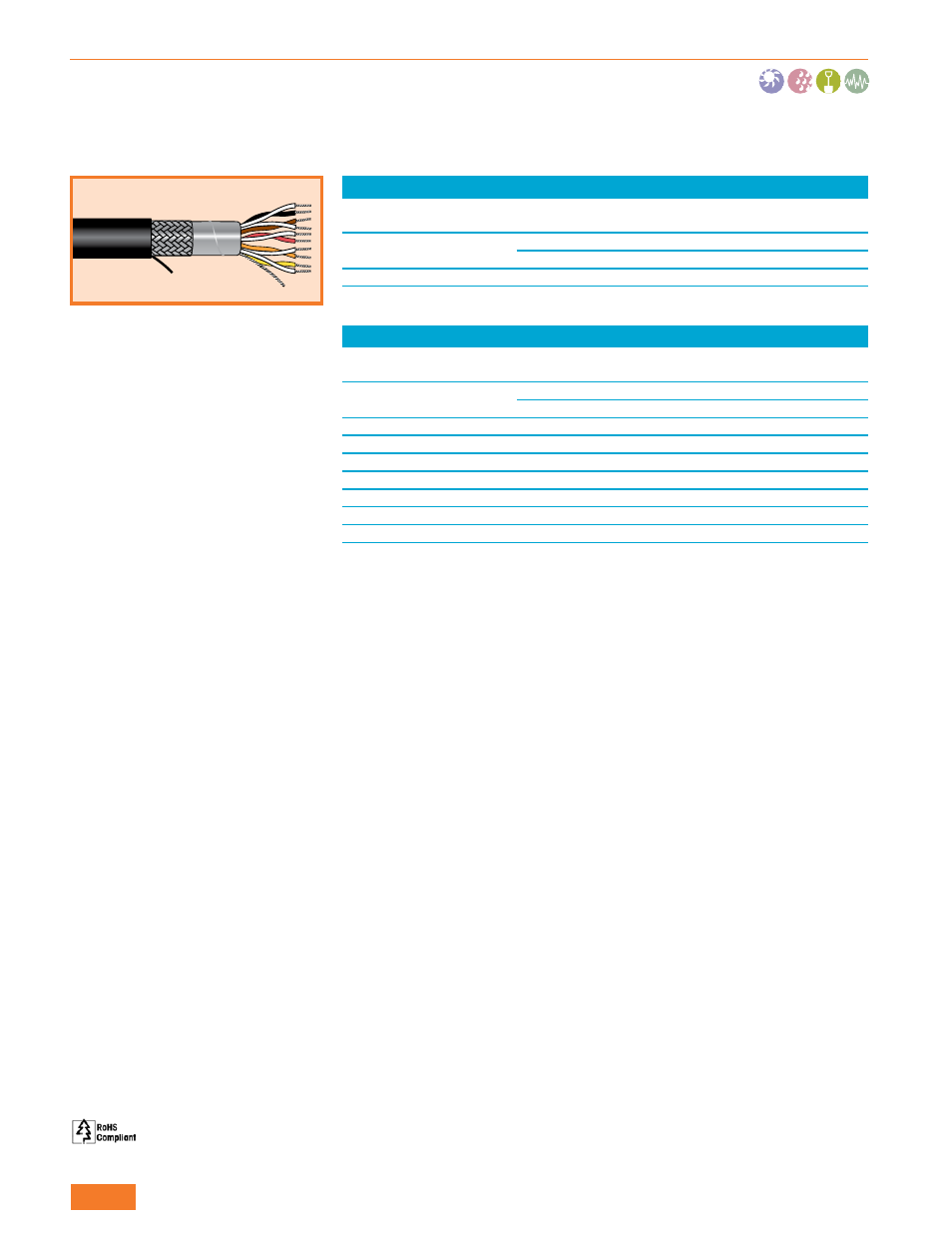

Xtra-Guard® 3
Direct Burial
300 V Supra-Shield® Foil/Braid, Multipair
Operating Temperature
• –30°C to +80°C
Conductor Color Coding
• Chart B (page 516)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Specially formulated
polyethylene jacket
• UV resistant
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum
foil with 25% overlap min.
Tinned copper drain wire sized
the same as conductors
Tinned copper braid, 70%
coverage min.
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-700: Bonding,
thermoplastic adhesive lined,
cross-linked polyolefin
24 AWG (0.23 mm
2
)
Stranding: 7/32 (7 x 0.20 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
35272
2
0.239
6.07
0.032
0.81
22 AWG (0.35 mm
2
)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
35121
1
0.195
4.95
0.032
0.081
35122
2
0.259
6.58
0.032
0.081
35123
3
0.272
6.91
0.032
0.081
35124
4
0.293
7.44
0.032
0.081
35125
5
0.317
8.05
0.032
0.081
35126
6
0.342
8.69
0.032
0.081
35129
9
0.393
9.98
0.032
0.081
