Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
59
Cable > Xtra-Guard > Xtra-Guard 2 > Multiconductor > Unshielded > 300 V

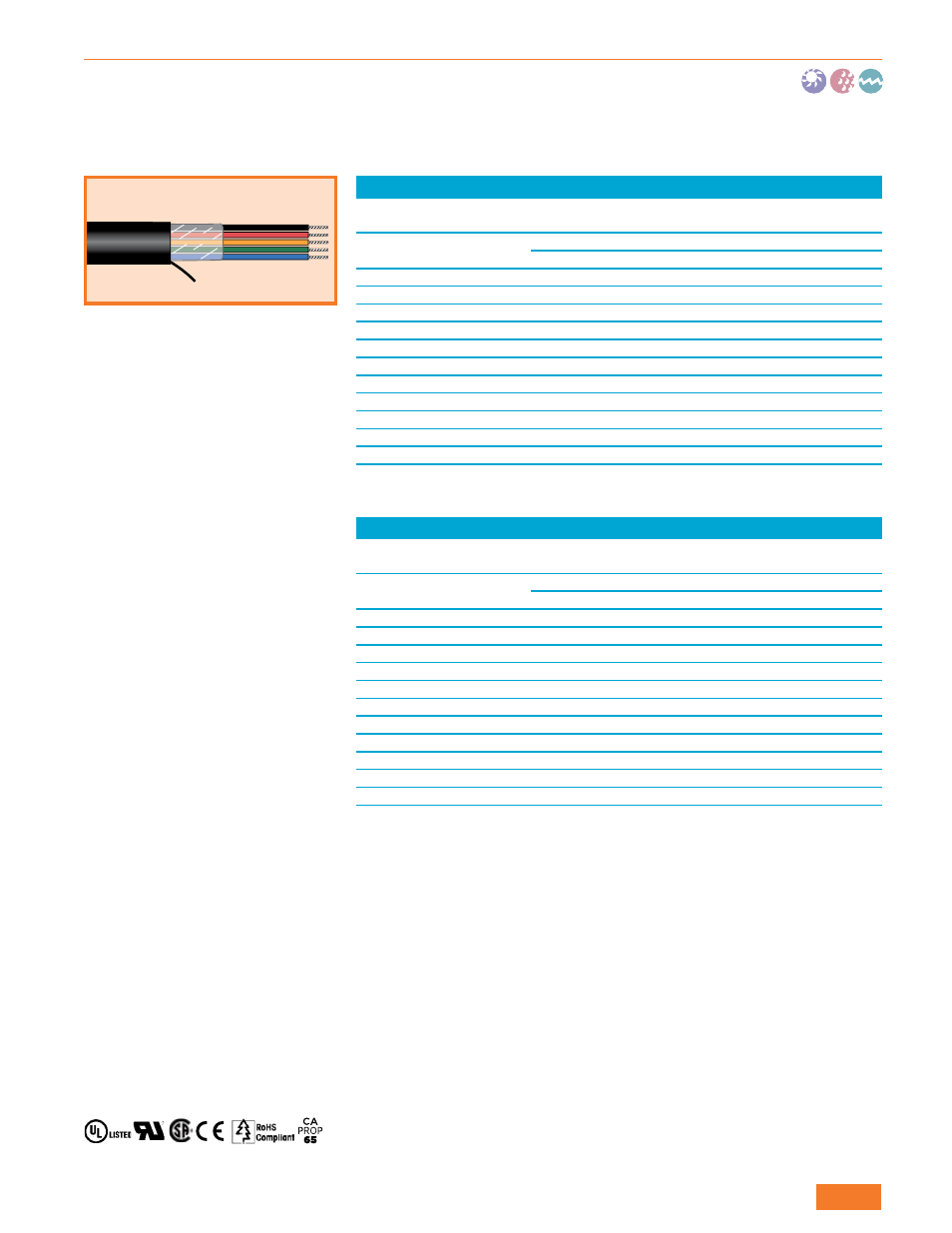

Xtra-Guard® 2
Oil and Abrasion Resistant
300 V Unshielded, Multiconductor
UL AWM 20668 VW-1
CSA AWM I/II A/B FT1
Operating Temperature
• –30°C to +90°C
Conductor Color Coding
• 24, 22 AWG: Chart E (page 520)
• 20, 18, 16 AWG: Chart D
(page 519)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Specially formulated
polyurethane jacket
• UV resistant
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-750: Bonding adhesive lined,
cross-linked polyolefin
18 AWG (0.81 mm
2
)
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
25062
2
0.226
5.74
0.032
0.81
25062/1*
2
0.226
5.74
0.032
0.81
25063
3
0.238
6.05
0.032
0.81
25063/1*
3
0.238
6.05
0.032
0.81
25064
4
0.259
6.58
0.032
0.81
25066
6
0.307
7.80
0.032
0.81
25068
8
0.332
8.43
0.032
0.81
25070
10
0.384
9.75
0.032
0.81
25070/15
15
0.433
11.00
0.032
0.81
25070/20
20
0.484
12.29
0.032
0.81
25070/25
25
0.542
13.77
0.032
0.81
*Conductors color-coded per international standards: brown, blue, green/yellow.
16 AWG (1.23 mm
2
)
Stranding: 19/0.0117 (19 x 0.29 mm)
Insulation thickness: 0.016 (0.41 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
25072
2
0.250
6.35
0.032
0.81
25072/1*
2
0.250
6.35
0.032
0.81
25073
3
0.264
6.71
0.032
0.81
25073/1*
3
0.264
6.71
0.032
0.81
25074
4
0.288
7.32
0.032
0.81
25076
6
0.343
8.71
0.032
0.81
25078
8
0.372
9.45
0.032
0.81
25080
10
0.432
10.97
0.032
0.81
25080/15
15
0.488
12.40
0.032
0.81
25080/20
20
0.547
13.89
0.053
1.35
25080/25
25
0.656
16.66
0.053
1.35
*Conductors color-coded per international standards: brown, blue, green/yellow.
