Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
109
Cable > Xtra-Guard > Xtra-Guard Flex > Multiconductor > Shielded > 600 V

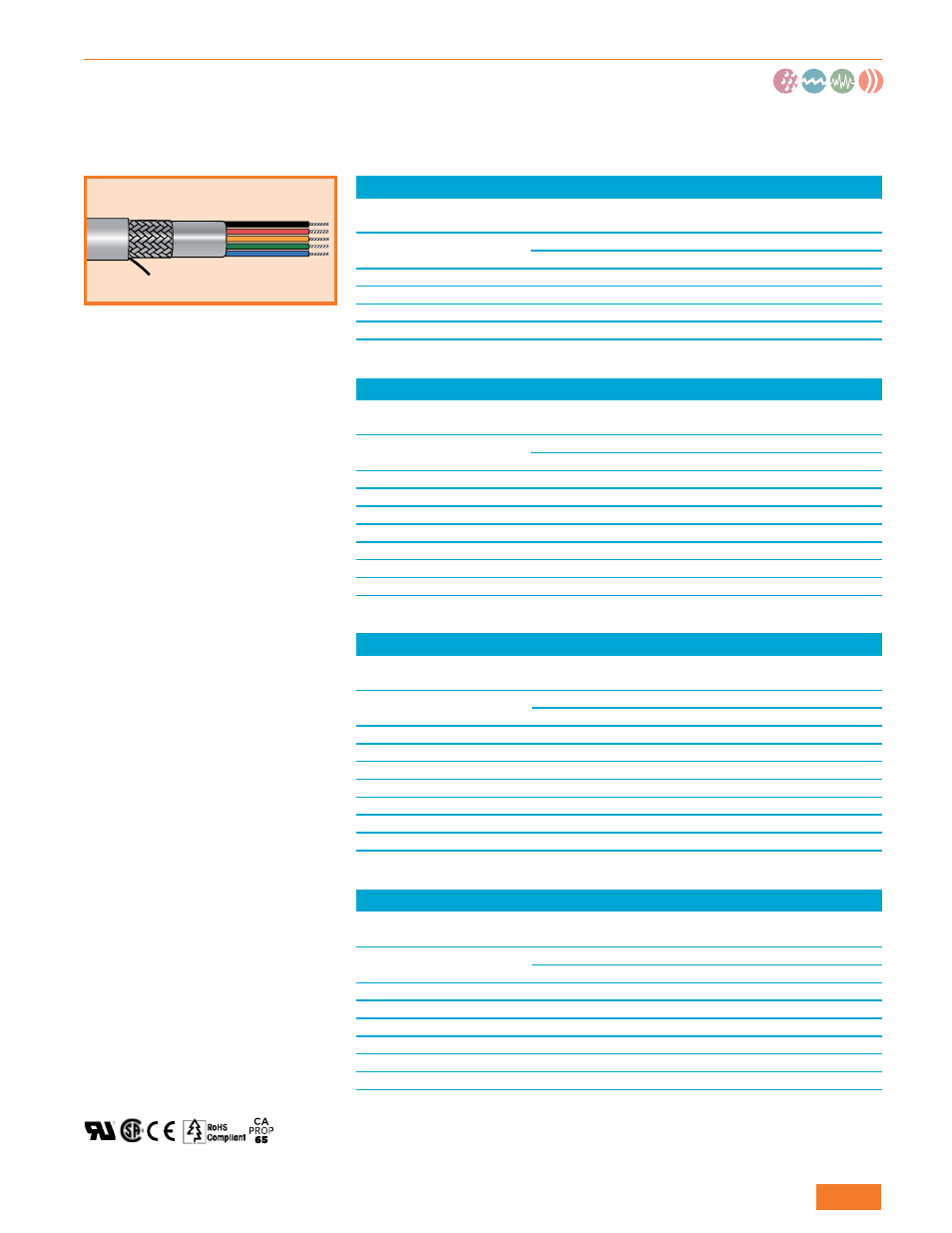

Xtra-Guard® Standard Flex
Light to Moderate Flex Applications
600 V Shielded, Multiconductor
UL AWM 2587
CSA AWM I/II A/B FT1
CE
Operating Temperature
• –5°C to +90°C (flexing)
• –40°C to +90°C (stationary)
Conductor Color Coding
• Numbered black conductors
• 1 yellow/green ground
conductor
• Jacket color: slate
Materials
• Finely stranded bare copper
conductors
• Lubricated PVC Insulation
• Oil-resistant PVC jacket
• Tinned copper braid shield,
85% coverage
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-FLEX: Highly flexible,
cross-linked silicone rubber
• FIT-650: Chemical/
temperature resistant cross-
linked fluoroelastomer
20 AWG (0.51 mm
2
)
Stranding: 10/30 (10 x 0.25 mm)
Insulation thickness: 0.022 (0.56 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
65003CY
3
0.339
8.61
0.035
0.89
65007CY
7
0.409
10.39
0.035
0.89
65012CY
12
0.521
13.23
0.040
1.02
65025CY
25
0.712
18.08
0.050
1.27
18 AWG (0.81 mm
2
)
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.022 (0.56 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
65803CY
3
0.360
9.14
0.035
0.89
65804CY
4
0.384
9.75
0.035
0.89
65805CY
5
0.414
10.52
0.035
0.89
65807CY
7
0.439
11.15
0.035
0.89
65812CY
12
0.568
14.43
0.045
1.14
65818CY
18
0.671
17.04
0.053
1.35
65825CY
25
0.776
19.71
0.053
1.35
16 AWG (1.32 mm
2
)
Stranding: 26/30 (26 x 0.25 mm)
Insulation thickness: 0.022 (0.56 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
65603CY
3
0.388
9.86
0.035
0.89
65604CY
4
0.416
10.57
0.035
0.89
65605CY
5
0.449
11.40
0.035
0.89
65607CY
7
0.484
12.29
0.035
0.89
65612CY
12
0.640
16.26
0.052
1.32
65618CY
18
0.767
19.48
0.062
1.57
65625CY
25
0.901
22.89
0.067
1.70
14 AWG (2.08 mm
2
)
Stranding: 41/30 (41 x 0.25 mm)
Insulation thickness: 0.022 (0.56 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
65403CY
3
0.443
11.25
0.042
1.07
65404CY
4
0.486
12.34
0.047
1.19
65405CY
5
0.537
13.64
0.052
1.32
65407CY
7
0.581
14.76
0.057
1.45
65412CY
12
0.732
18.59
0.062
1.57
65418CY
18
0.890
22.61
0.083
2.11
