Cable > Xtra-Guard > Xtra-Guard 4 > Multiconductor > Foil Shielded > 600 V

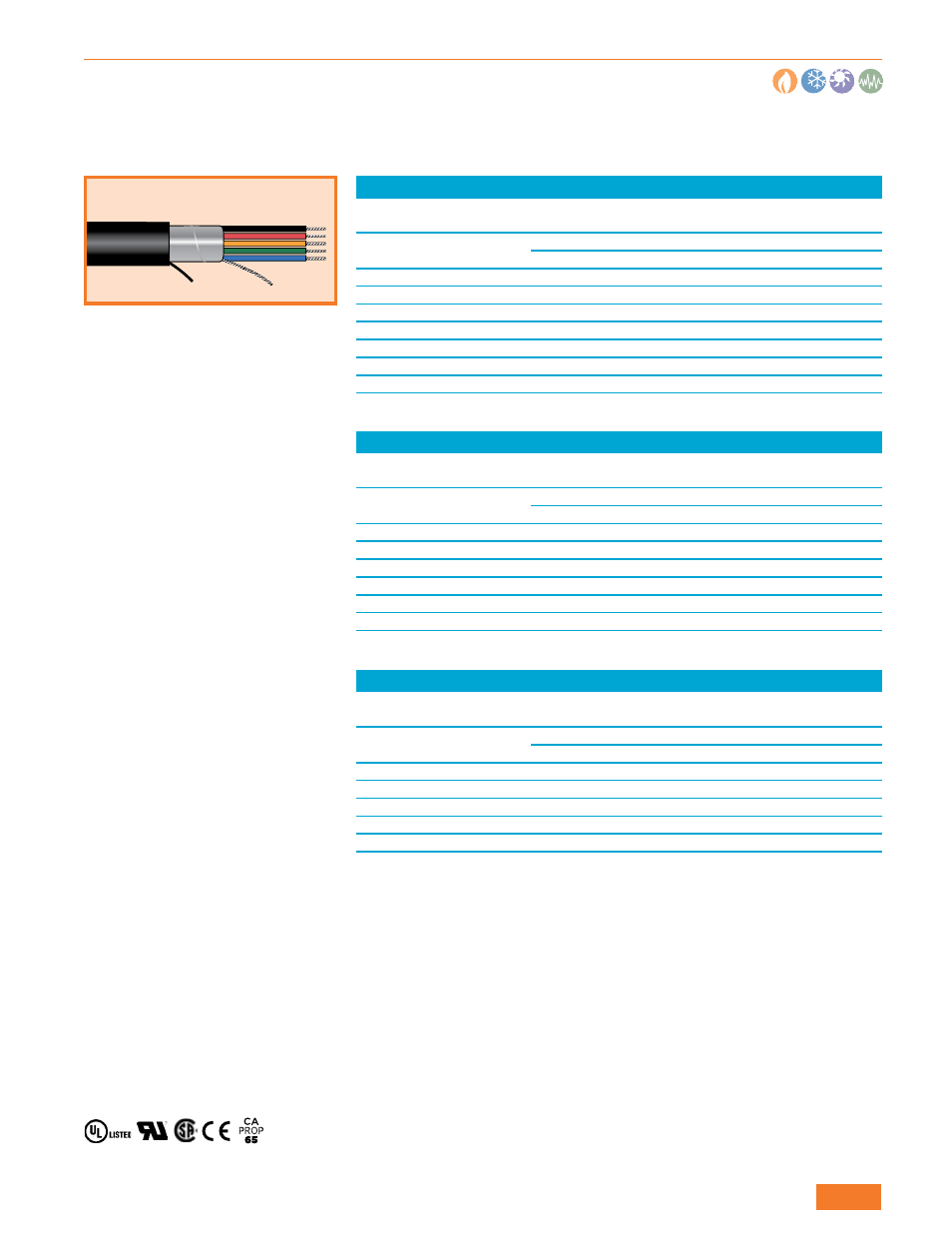

Xtra-Guard® 4
Advanced Temperature and Chemical Performance
600 V Foil Shielded, Multiconductor
UL AWM 20238
UL TC, WTTC
CSA AWM I/II A/B FT1
MSHA P-07-KA070017-MSHA
NEC Class 1, Div 2
Operating Temperature
• –50°C to +125°C
Conductor Color Coding
• Chart E (page 520)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• TPE insulation
• TPE jacket
• Aluminum/polyester foil shield,
with 25% overlap and foil
facing inward
• Tinned copper drain wire sized
the same as cable conductors
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-600: highly flexible,
cross-linked elastomer
• FIT-400: temperature/chemical
resistant FEP
18 AWG (0.81 mm
2
)
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.032 (0.81 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
45430/2
2
0.340
8.64
0.055
1.40
45430/3
3
0.357
9.07
0.055
1.40
45430/4
4
0.387
9.83
0.055
1.40
45430/5
5
0.420
10.67
0.055
1.40
45430/7
7
0.454
11.53
0.055
1.40
45430/9
9
0.543
13.79
0.055
1.40
45430/12
12
0.599
15.21
0.065
1.65
16 AWG (1.23 mm
2
)
Stranding: 19/0.0117 (19 x 0.29 mm)
Insulation thickness: 0.032 (0.81 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
45440/2
2
0.364
9.25
0.055
1.40
45440/3
3
0.383
9.73
0.055
1.40
45440/5
5
0.452
11.48
0.055
1.40
45440/7
7
0.490
12.45
0.055
1.40
45440/9
9
0.587
14.91
0.065
1.65
45440/12
12
0.649
16.48
0.065
1.65
14 AWG (2.08 mm
2
)
Stranding: 41/30 (41 x 0.25 mm)
Insulation thickness: 0.032 (0.81 mm)
Part No.
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
45450/2
2
0.394
10.01
0.055
1.40
45450/3
3
0.416
10.57
0.055
1.40
45450/5
5
0.493
12.52
0.055
1.40
45450/7
7
0.555
14.10
0.065
1.65
45450/15
15
0.775
19.69
0.065
1.65
