Cable > Xtra-Guard > Xtra-Guard 1 > Multiconductor > Foil Shielded > 600 V

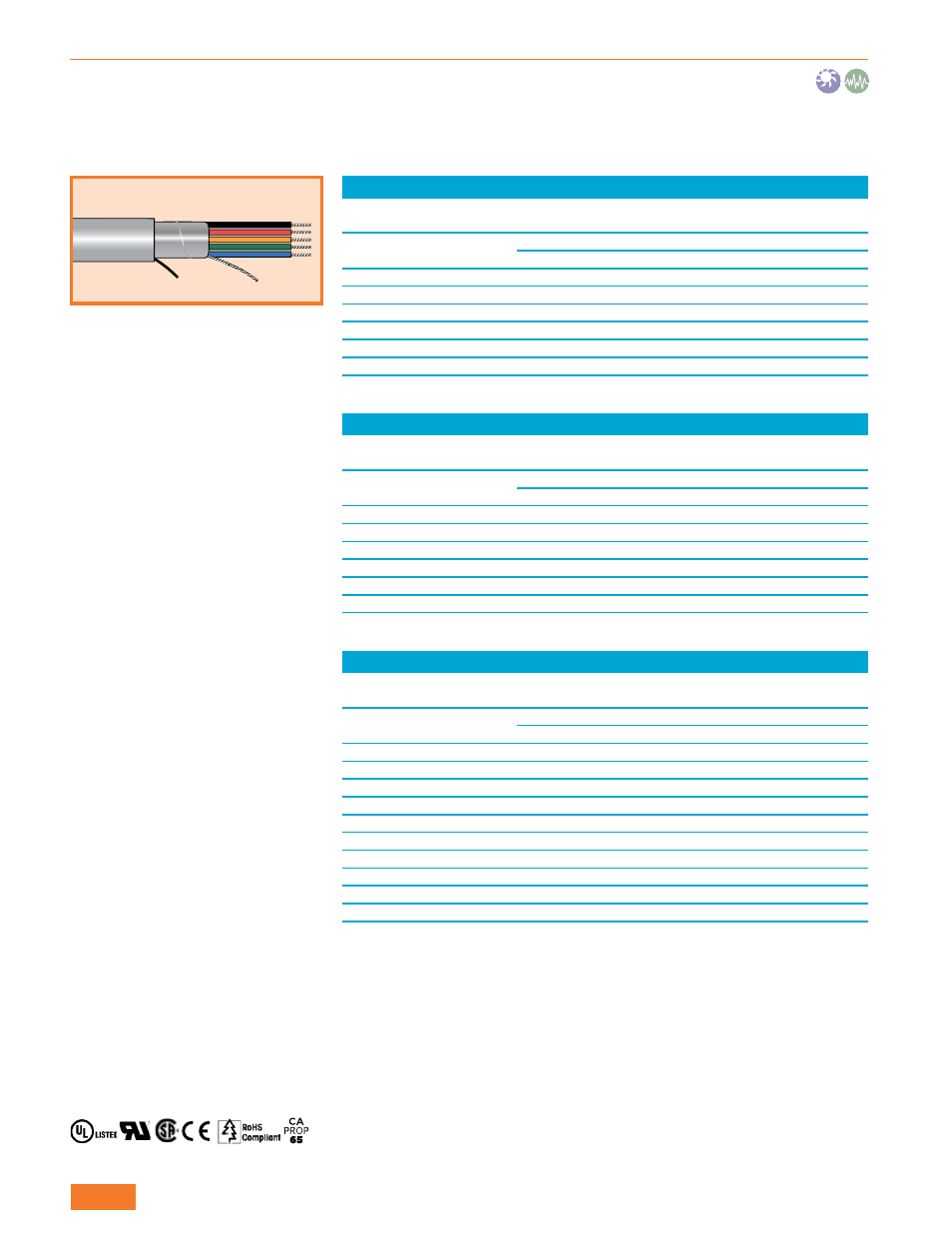

Xtra-Guard® 1
High Performance
600 V Foil Shielded, Multiconductor
UL AWM 2501 VW-1
CSA AWM I/II A/B FT4
UL MTW
Operating Temperature
• –30°C to +105°C (AWM)
• –30°C to +90°C (MTW)
Conductor Color Coding
• Chart E (page 520)
• Jacket Colors
• Put-ups: slate
• Bulk: nine colors available
(page 31, minimums
may apply)
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Aluminum/polyester foil shield,
with 25% overlap and foil
facing inward
• Tinned copper drain wire sized
the same as cable conductors
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-221: General-purpose,
cross-linked polyolefin (indoor)
• FIT-321: Medium-wall,
adhesive-lined, cross-linked
polyolefin (outdoor)
22 AWG (0.35 mm
2
)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.032 (0.81 mm)
Part Number
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
5410/2
2
0.322
8.18
0.063
1.60
5410/3
3
0.337
8.56
0.063
1.60
5410/4
4
0.362
9.19
0.063
1.60
5410/5
5
0.389
9.88
0.063
1.60
5410/9
9
0.477
12.12
0.063
1.60
5410/12
12
0.525
13.34
0.063
1.60
20 AWG (0.56 mm
2
)
Stranding: 7/28 (7 x 0.32 mm)
Insulation thickness: 0.032 (0.81 mm)
Part Number
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
5420/3
3
0.354
8.99
0.063
1.60
5420/4
4
0.381
9.68
0.063
1.60
5420/5
5
0.411
10.44
0.063
1.60
5420/7
7
0.442
11.23
0.063
1.60
5420/9
9
0.507
12.88
0.063
1.60
5420/12
12
0.558
14.17
0.063
1.60
18 AWG (0.81 mm
2
)
Stranding: 16/30 (16 x 0.25 mm)
Insulation thickness: 0.032 (0.81 mm)
Part Number
Conductors
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
5430/2
2
0.356
9.04
0.063
1.60
5430/3
3
0.373
9.47
0.063
1.60
5430/4
4
0.403
10.24
0.063
1.60
5430/5
5
0.436
11.07
0.063
1.60
5430/7
7
0.470
11.94
0.063
1.60
5430/9
9
0.539
13.69
0.063
1.60
5430/12
12
0.595
15.11
0.063
1.60
5430/15
15
0.647
16.43
0.063
1.60
5430/19
19
0.690
17.53
0.063
1.60
5430/25
25
0.800
20.32
0.063
1.60
